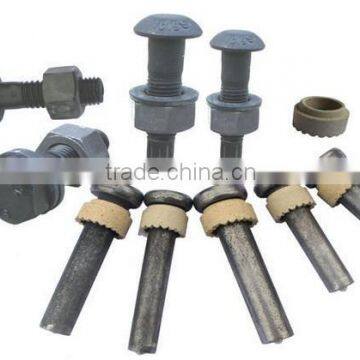

Core product:
High strength hexagon head bolts ---8.8 or 10.9 Grade
High strength tension control bolt(TC BOLT)---8.8 or 10.9 Grade
Shear connectors(shear stud/weld stud/arc welding stud)
Bolt standards or specs:
ASTM A325,ASTM A325M,ASTM A325TC(F1852),ASTM A490, ASTM A490TC(F2280)
GB/T 3632-3633,GB/T 1228-1231,JSS II 09(S10T),JIS B1186(F10T),AS 1252,DIN,ect.
Shear connector standards or specs:
GB/T 10433,ASTM A108,ASW D1.1,EN ISO13918,AS/NZS1554,JIS B1198
Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between
the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck
and straight to steel welding.
Burn off value shown are for welding to bare steel.
Length: Length is before weld. Stud when welded to base metal will be approximately 5mm shorter after weld and when welded through deck 10mm shorter after weld. Lengths for shear connect studs are generally set by governing specification.
FAQ:
Acceptable payment term and way?
T/T,L/C, T/T + L/C,
Acceptable price term?
FOB CNF CIF DDU CPT
Do you accept OA payment terms?
Yes, sure, but it normally depending on the order value
Do you have QC team?
Yeah, sure, our QC team is very important, they will keep the quality control for our products.
What is the validity of your quotation?
What is your advantage?
24 hour quick response /Customer oriented/ Credit foremost/ Top quality Excellent

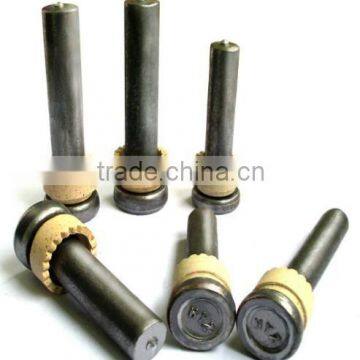

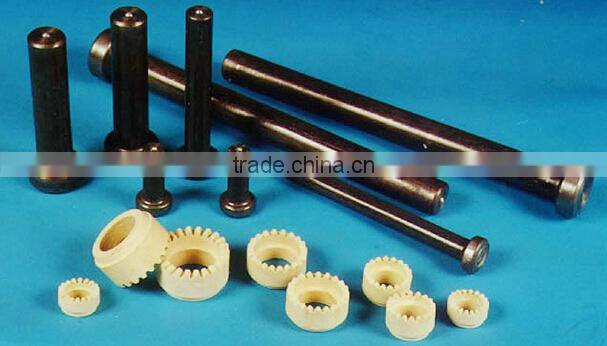

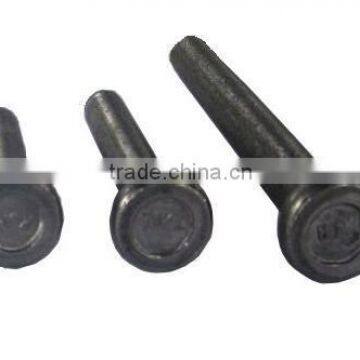

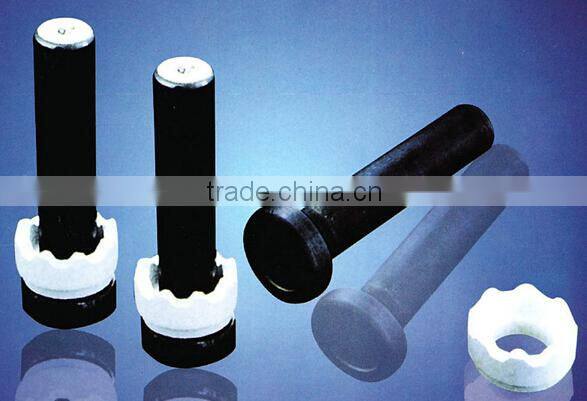

Shear connector/shear stud introduction:
Description |
Shear connectors, shear studs, welding studs |
Materials |
Carbon steel or stainless steel |
Available specs |
GB/T 10433,ASTM A108,ASW D1.1,EN ISO13918,AS/NZS1554,JIS B1198 |
Dia |
M12-M25(1/2”-1”) |
Length |
50-300MM(2”-11-3/4”) |
Head mark |
HYZ or customized |
Used |
Steel structures such as bridge construction, airport, railway, multi-floor& high-rise steel structure building,ect |
Mechanical properties for different standard
standard |
Tensile strength |
Yield strength |
Elongation |
ASWD1.1 |
≥450MPA |
≥350MPA |
≥15%/20% |
EN:ISO13918 |
≥450MPA |
≥350MPA |
≥15% |
JIS B1198 |
≥450MPA |
≥235MPA |
≥20 |
We are the Chinese state owned and one of the world top 500 enterprises, with SGS approved and ISO9001 certified.
We specialize in supplying:
l Welding stud/Shear connector
l High strength hex head bolt 8.8 /10.9
l High strength tension control bolt /shear bolt 8.8/10.9
l Thread rod
l Stud welding machine
l Other building materials such as steel coils etc
