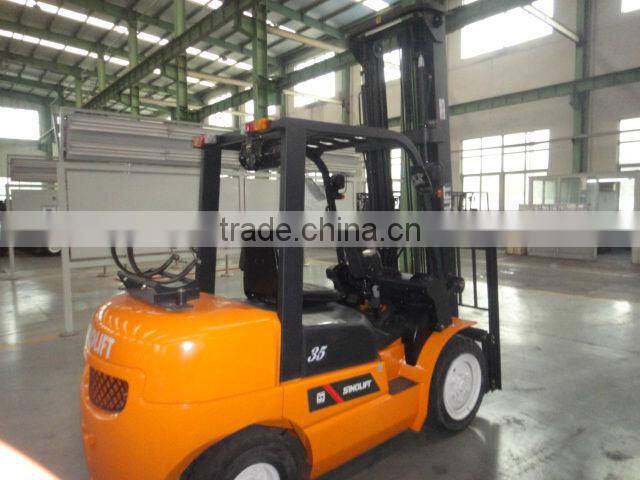

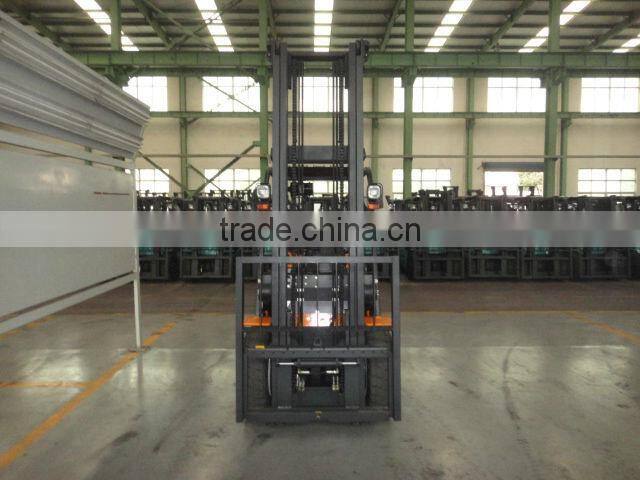

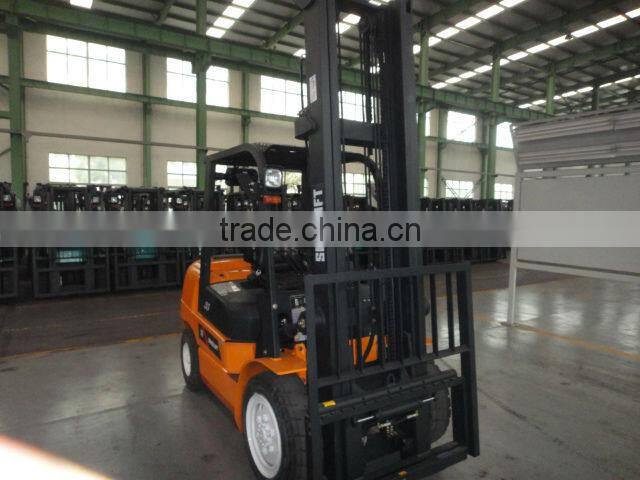

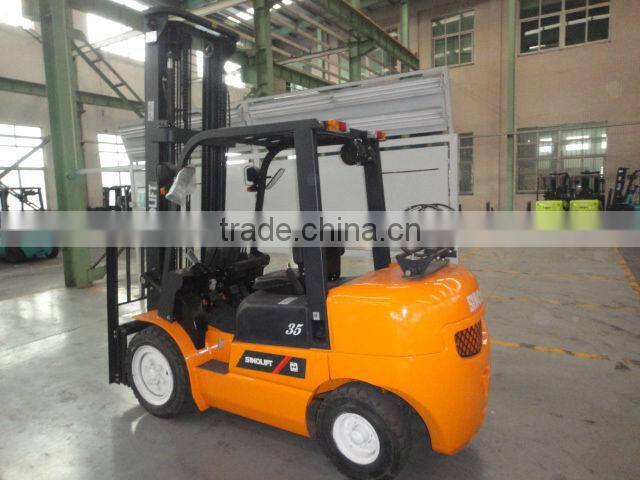

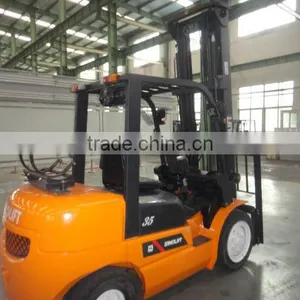

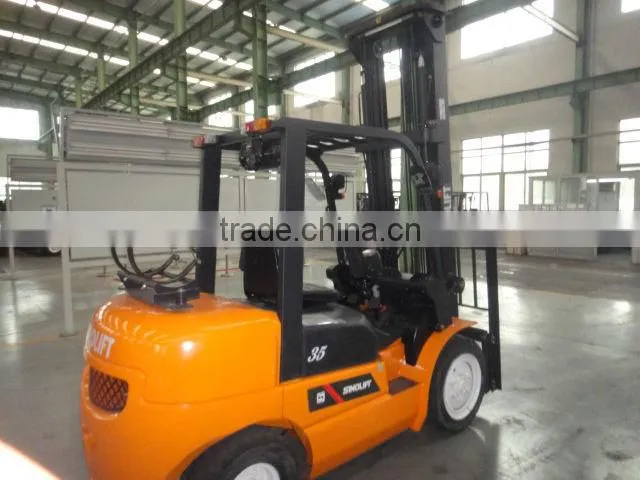

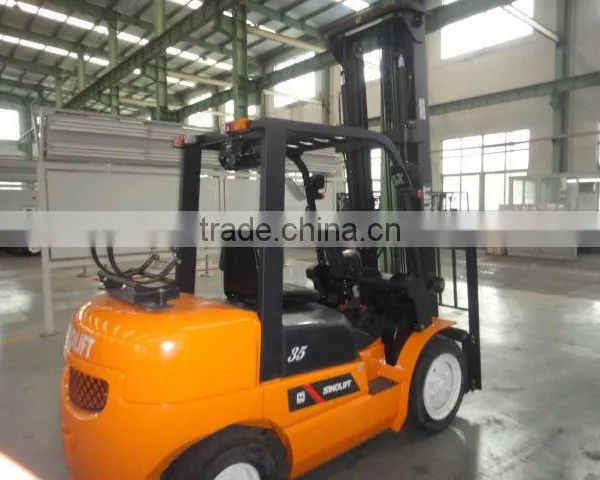

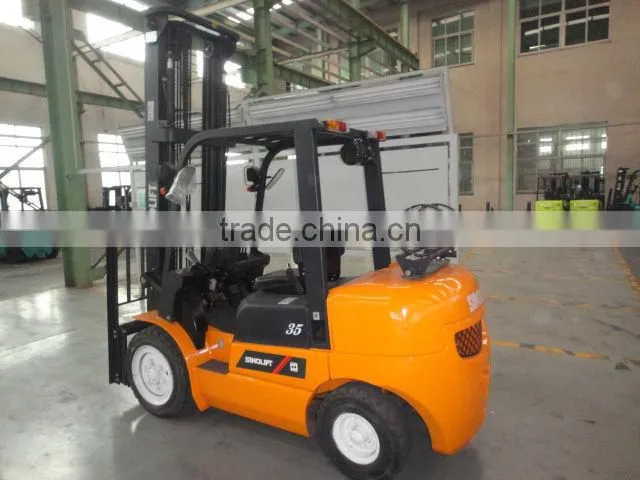

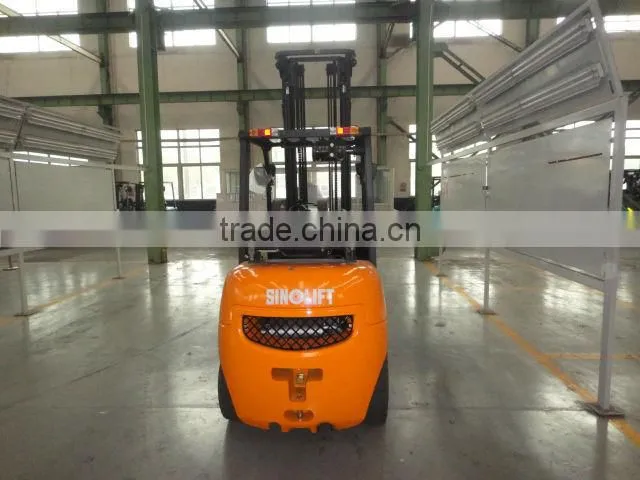

3.5T Gasoline Forklift Truck

Name: 3.5T Gasoline Forklift Truck
Brand: SINOLIFT
SKU: 132452801
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPQD35

Type Other, gasoline forklift truck

Power Souce Gasoline Engine

Specifications

3.5T gasoline forklift truck
1.capacity: 3.5T
2.lifting height: 3m~6m
3.brand:SINOLIFT

Generals	Manufacture				SINOLIFT
	Model				CPQD30G-M
					CPQD30G-R
					CPYD30G-M
					CPYD30G-R
					*****
					*****
	Power type				Gasoline/LPG
	Rated capacity			kg	3000
	Load center			mm	500
Dimensions	Lift height			mm	3000
	Free lift height E			mm	145
	Fork size N×U×L			mm	1070×125×45
	Mast tilt angle α / β			deg	6/12
	Front overhang A2			mm	494
	Overall dimensions	Length to face of fork A1		mm	2775
		Overall width B1		mm	1236
		Mast lowered height H1		mm	2070
		Mast extended height H3		mm	4272
		Overhead guard height H2		mm	2180
	Turning radius R			mm	2490
	Min. right angle aisle width X			mm	2210
Performance	Travel speed (no load / full load)			km/h	18/19
	Lift speed (full load)			mm/sec	450
	Max. gradeability			%	20
	Self weight			kg	4360
Wheel & Tires	Tires	Front			28×9-15-14PR
		Rear			6.50-10-10PR
	Tread	Front B2		mm	1000
		Rear B3		mm	970
	Wheelbase A3			MM	1700
	Ground clearance (full load / no load)		Mast M	mm	110/135
			Frame F		170/175
Drive units	Engine	Apply to truck model			CPQ(Y)D30G-M1,R
		Model			MAZADA F2(2.2L)	MITSUBISHI 4G64
		Rated output		kw/rpm	37.2/2700	37/2500
		Rated torque		N.m/rpm	142/1800	161/1600
		No.of cylinder			4	4
		Bore × stroke		mm	86×94	86.5*100
		Displacement		L	2184	2.35
