Home > Products > New Products > TMD power pallet tilter

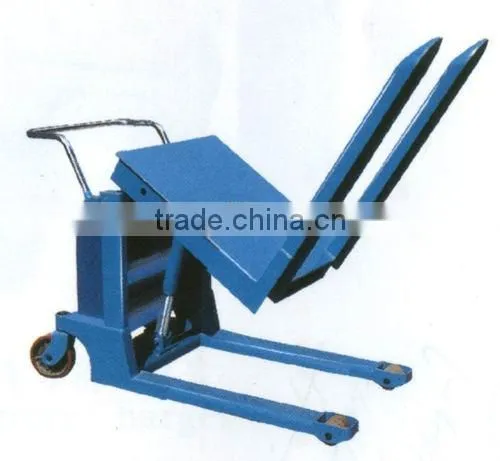

TMD power pallet tilter
Negotiable
/ Set
1 Set(Min.Order)
- 400 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | SINOLIFT | Model Number | TMD | |
| Type | Powered Pallet Truck | Power Souce | Other, battery: 12V 60A | |
| Rated Loading Capacity | 1000kg | Min. Lifting Height | 85mm | |
| Fork Length | 800mm | Fork Width | 560mm | |
| Overall Dimensions | 1410mmx638mmx950mm |
Product Description
Specifications
TMD power pallet tilter1.capacity: 1000kg
2.Specially designed for carrying,rotating printing paper and other materials
When it tilts up,it serves as a work table to blow and dry paper in vertical.
Model | TMD1000 | |
Capacity | kg | 1000 |
Lifting Height,Vertical | mm | 285 |
Min.Fork Height | mm | 85 |
Fork Length | mm | 800 |
Handle Height | mm | 200 |
Overall Fork Width | mm | 560 |
Width Berween Forks | mm | 234 |
Fork Tip Length From Roller | mm | 135 |
Overall Width | mm | 640 |
Overall Length | mm | 1410 |
Overall Height,Raised | mm | 950 |
Overall Height,Lowered | mm | 750 |
Load Centre C1 | Min.200mm,Max.400mm | |
Load Centre C2 | Min.200mm,Max.420mm | |
Power Uint | 0.8kw/12v | |
Net Weight (kg) | kg | 185 |
