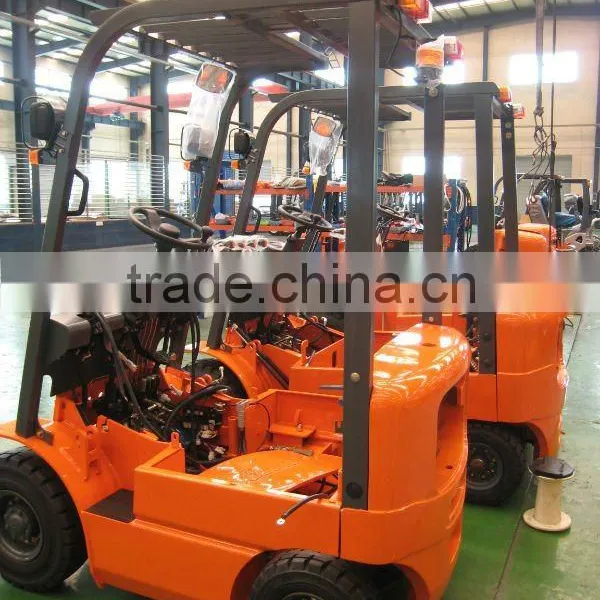

CPD10-15 DC Electric Counterbalanced Forklift Truck

Name: CPD10-15 DC Electric Counterbalanced Forklift Truck
Brand: SINOLIFT
SKU: 132452659
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPD15

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 1500kg

Max. Lifting Height 3000mm

Min. Lifting Height 164mm

Fork Length 920mm

Fork Width 120mm

Overall Dimensions 920mmx120mmx40mm

Specifications

Flexibility, quiet, easy to drive, efficently.
Ergonomic application
High Capacity Battery
Import LCD instrument

CPD10-15 DC Electric Counterbalanced Forklift Truck

General	Model			CPD10	CPD15
	Rated capacity		kg	1500
	Load center		mm	500
Dimension	Lift height		mm	3000
	Overall dimension	Length to fork face	mm	2056
		Overall width	mm	1090
		Mast lowered height	mm	1995
		Overhead guard height	mm	2162
	Turning radius		mm	1820
Performance	Full load / no load	Travel speed	km/h	11.5/13.5	11/13
		Lift speed	mm/sec	300/400	285/390
	Max grade ability		%	15
Power & Control	Battery	Voltage	V	48
	Controller			GE separate excitation controller
