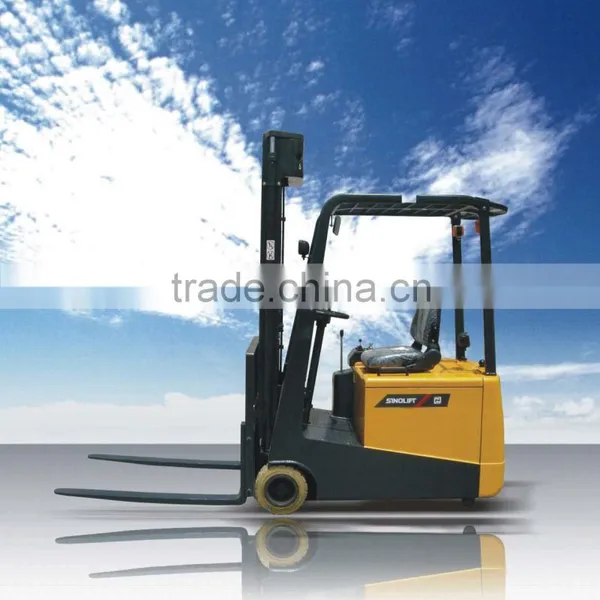

Mini Electric Forklift

Name: Mini Electric Forklift
Brand: sinolift
SKU: 132452457
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

sinolift

Model Number:

CPD-F

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name sinolift

Model Number CPD-F

Specifications

* Tight small and flexible structure,
* Driving with seat is comfortable and convenient,

Model		CPD-0.5F	CPD-0.75F	CPD-1.0F
Capacity Q	kg	500	750	1000
Load Center ©	mm	400 ( 500 )	400 ( 500 )	400 ( 500 )
Lifting Height	mm	3200	3200	3200
Free Lifting Height	mm	1600	1600	1600
Fork Length	mm	800 ( 1000 )	800 ( 1000 )	800 ( 1000 )
Fork Sideswith	mm	100	100	100
Type of Lifting		Electric Hydralic
Speed of Lifting	m/min	>5m	>5m	>5m
Speed of Lowering	m/min	adjustable
Title of mast	<	2° /5°	2° /5°	2° /5°
Height of Mast	mm	2080	2080	2080
Height of Mast Extended	mm	3680	3680	3680
Height of overhead guard	mm	1900	1900	1900
Height of Seat from Ground	mm	850	850	850
Length of the Fork back to Truck Rear	mm	1260	1260	1350
Width of Carriage	mm	800	800	800
Distance between Wheel	mm	860-940	860-940	950-1030
Distance between Wheel	mm	660	660	660
Height of Truck Body from Ground	mm	90	90	90
Turing Radius	mm	1150	1150	1240
Steering System		Hydraulic	Hydraulic	Hydraulic
Type of Drive		Electric Motor
D rive speed(load and unload)	km/h	6.5/7.8	6.3/7.3	6.0/7.0
