Gasoline(LPG) Forklift

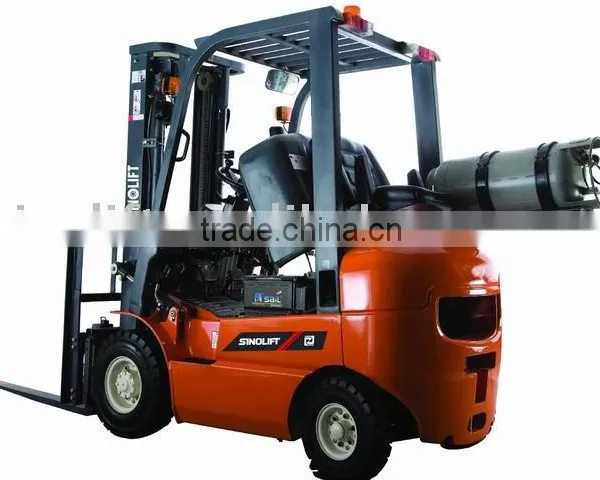

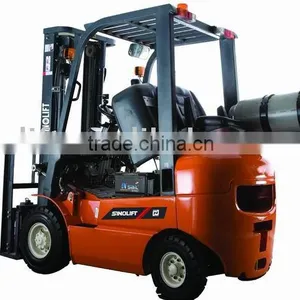

Name: Gasoline(LPG) Forklift
Brand: SINOLIFT
SKU: 132452381

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CPQ & CPY

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPQ & CPY

Type Other, Forklift Truck

Power Souce Gasoline Engine

Rated Loading Capacity 1000/1500/1750kg

Min. Lifting Height 3000mm

Specifications

Brand:SINOLIFT
CE certificate approved

General	Manufacturer					SINOLFIT FORKLIFT
	Model					CPQ(D)10-WF CPY(D)10-WF	CPQ(D)15-WF CPY(D)15-WF	CPQ(D)18-WF CPY(D)18-WF
						CPQ(D)10-H1 CPY(D)10-H1	CPQ(D)15-H1 CPY(D)15-H1	CPQ(D)18-H1 CPY(D)18-H1
						CPQ(D)10-R CPY(D)10-R	CPQ(D)15-R CPY(D)15-R	CPQ(D)18-R CPY(D)18-R
	Power type					Gasoline LPG
	Rated capacity				kg	1000	1500	1750
	Load center				mm	500
Dimensions	Lift height				mm	3000
	Free lift height				mm	164
	Fork size				mm	920×100×40	920×100×40	1070×120×40
	Mast tilt angle				deg	6/12
	Front overhang				mm	436
	Overall Dimensions	Overall length		Without fork	mm	2180	2235	2270
				With fork		3116	3171	3356
		Overall width		Wheel width	mm	1095
				Frame width		1080
		Mast lowered height			mm	1995
		Mast extended height			mm	4038
		Overhead guard height			mm	2075
	Turning radius				mm	1890	1960	2000
	Min. right angle aisle width				mm	1720	1780	1820
Performance	Travel speed		Hydraulic		km/h	14.5/13.5
	(no load/full load)		Mechanical	Shift		6/5.5
				Shift		14/13.5
	Lift speed (no load/full load)				mm/sec	510/450
Wheel & Tires	Tires	Front				6.50-10-10PR
		Rear				5.00-8-8PR	5.00-8-10PR	5.00-8-10PR
	Tread	Front			mm	890
		Rear			mm	920
	Wheelbase				mm	1400
	Ground clearance(full load/no load)			Mast	mm	95/105		85/105
				Frame		105/115
Drive units & control	Engine	Apply to truck model				CPQ(D)10/15/18 -WF	CPQ(D)10/15/18 -H1	CPQ(D)10/15/18 -R
						CPY(D)10/15/18 -WF	CPY(D)10/15/18 -H1	CPY(D)10/15/18 -R
		Model				WANFENG 491GP	NISSAN H20	MITSUBISHI 4G64
