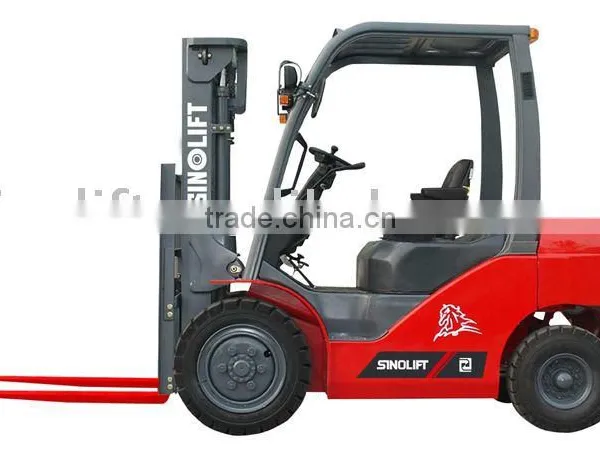

Diesel Forklift

Name: Diesel Forklift
Brand: SINOLIFT
SKU: 132452407
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPCD30G

Type Other, Forklift Truck

Power Souce Diesel Engine

Rated Loading Capacity 3000kg

Min. Lifting Height 3000mm

Fork Length 1150

Specifications

Brand:SINOLIFT
CE certificate approved

Generals	Manufacturer				SINOLIFT FORKLIFT TRUCK
	Model				CPCD30G-W1	CPCD30G-W2
	Power type				Diesel
	Rated capacity			kg	3000
	Load center			mm	500
Dimensions	Lift height			mm	3000
	Free lift height			mm	145
	Fork size N×U×L			mm	107012545
	Mast tilt angle α / β			deg	6/12
	Front o-verhang G			mm	494
	Overall	Length to face of fork J		mm	2775
	dimensions	Overall width Q		mm	1236
		Mast lowered height C		mm	2070
		Mast extended height A		mm	4272
		Overhead guard height P		mm	2180
	Turning radius W			mm	2490
	Min. right angle aisle width X			mm	2210
Performance	Travel speed (full load/no load)	Hydraulic		km/h	18/19
		Mechanical	1		8.5/9
			11		18.5/19
	Lift speed with load			mm/sec	450
	Max. gradeability			%	20
	Self weight			kg	4360
Wheel & Tires	Tires	Front			28X9-15-14PR
		Rear			6.5-10-10PR
	Tread	Front Q		mm	1000
		Rear S		mm	970
	Wheelbase			MM	1700
	Ground clearance(no load/full load)		Mast M	mm	110/135
			Frame F		170/175
Drive units & control	Engine	Apply to truck model			ISZU 4JG2PE	ISZU 4JG3PE
		Model			44.9/2450	44.9/2750
		Rated output		kw/rpm	186.3/1600-1800	186.3/1600-1800
		Rated torque		N.m/rpm	4	4
		No.of cylinder			4	4
		Bore×stroke		mm	95.4X107	95.4X107
		Displacement		L	3.059	3.059
