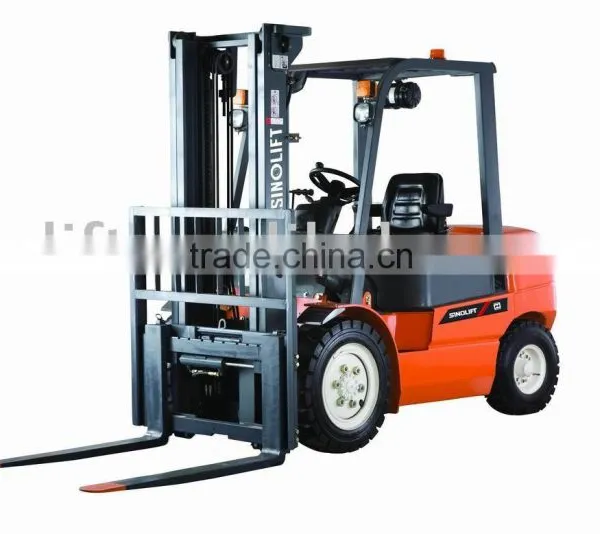

2 Ton Diesel Forklift

Name: 2 Ton Diesel Forklift
Brand: SINOLIFT
SKU: 132452337
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CPC(D)

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPC(D)

Type Other, Forklift Truck

Power Souce Diesel Engine

Rated Loading Capacity 2000/2500kg

Min. Lifting Height 3000mm

Specifications

* Smart design for comfort visibility
* Minimium turning radius and excellent maneuverability
* Absolutely silent operation

Generals	Manufacture				SINOLIFT FORKLIFT TRUCK
	Model				CPC(D)20-X	CPC(D)25-X
					CPC(D)20-W1	CPC(D)25-W1
					CPC(D)20-W3	CPC(D)25-W3
	Power type				Diesel
	Rated capacity			kg	2000	2500
	Load center			mm	500
Dimensions	Lift height			mm	3000
	Free lift height			mm	140
	Fork size N×U×L			mm	107012040	107010045
	Mast tilt angle α / β			deg	6/12
	Front o-verhang G			mm	482
	Overall	Length to face of fork J		mm	2510	2580
	dimensions	Overall width Q		mm	1150
		Mast lowered height C		mm	1995
		Mast extended height A		mm	4037
		Overhead guard height P		mm	2060
	Turning radius W			mm	2170	2240
	Min. right angle aisle width X			mm	1920	2010
Performance	Travel speed (full load/no load)	Hydraulic		km/h	17/19
		Mechanical	I		8.5/9
			II		18.5/19
	Lift speed with load			mm/sec	450
	Max. gradeability			%	20
	Self weight			kg	3550	3880
Wheel & Tires	Tires	Front			7.00-12-12PR
		Rear			6.00-9-10PR
	Tread	Front Q		mm	970
		Rear S		mm	970
	Wheelbase			MM	1600
Drive units	Engine	Apply to truck model			CPC(D) 20/25X	CPC(D) 20/25W1	CPC(D) 20/25W3
		Model			XINCHAI 490BPG	ISUZU C240PKJ	ISUZU HJ493
		Rated output		kw/rpm	37/2650	34.5/2500	39/2500
		Rated torque		N.m/rpm	148/1900	139/1800	165/1800
