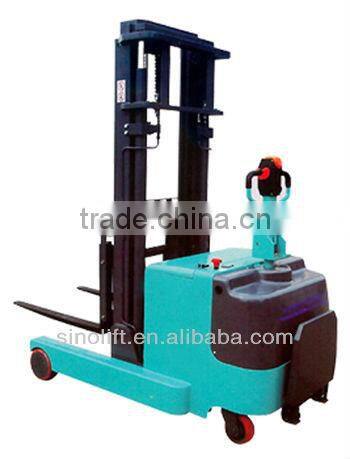

CQD Reach Stacker

Name: CQD Reach Stacker
Brand: SINOLIFT
SKU: 132452157
Availability: InStock

Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CQD

Specifications

Innovative design adopting two hydraulic cylinder, provides excellent visibility.

* Excellent Turning Radius.
* Equipped With European top quality Driving wheels, Electronic Control system, etc.
* High Maneuverability even in narrow aisle.
* Innovative design adopting two hydraulic cylinder, provides excellent visibility.
* Operator's position was ergonomically designed with footplatform or Armrest for confort and safety.

Model		CQD-10B	CQD-15B
Rated from the weight of Q(kg)	kg	1000	1500
Load center distance L3(mm)	mm	400(500)	400(500)
Enhance the high degree of	mm	3000	3000
Free upgrade	mm	(150+1500)	(150-1600)
Fork length	mm	800(1000)	800(1000)
Lifting the form of		Electro-hydraulic type	Electro-hydraulic type
Lifting speed	m/min	>5m	>5m
The rate of decline	m/min	Adjustable	Adjustable
Gantry angle before / after		2^o/5^o	2^o/5^o
Height gantry	mm	2000	2000
Maximum height of the door or set up	mm	3500	3500
Drive the form of		Electric Wheel	Electric Wheel
Walking speed (full load / no load)	km/h	5/4.5	5/4.0
Speed control		Promise speed regulation system	Promise speed regulation system
Gradeability	%	8/5	8/5
Traveling brake		Battery brake	Battery brake
Batteries	24V	D-240	D-400
Battery weight	kg	235	300
Motor running	kw	1.5	1.5
Electrical upgrade	kw	2.8	2.8
Wheel material		Polyurethane	Polyurethane
Specifications wheels (front)	mm	210X85X2 Months	210X85X2 Months
Driving wheel (rear)	mm	250X90X1 Months	250X90X1 Months
Driving wheel (rear)	mm	250X90X1 Months	250X90X1 Months
Caster bearing (rear)	mm	160X60X2 Months	160X60X2 Months
Weight (including batteries)	kg	1500	1850
A long body	mm	1660	1785
Body width B	mm	868	868
Front width C	mm	1030	1030
Tread D	mm	1350	1490
Body length contraction	mm	2060	2195
Extension of full-length body	mm	2660	2795
Radius of gyration H1	mm	1600	1725
Radius of gyration H2	mm	2050	2180
Gantry forward	mm	600	600
Adjustable fork width	mm	220-700	220-700
Front legs high	mm	258	258
