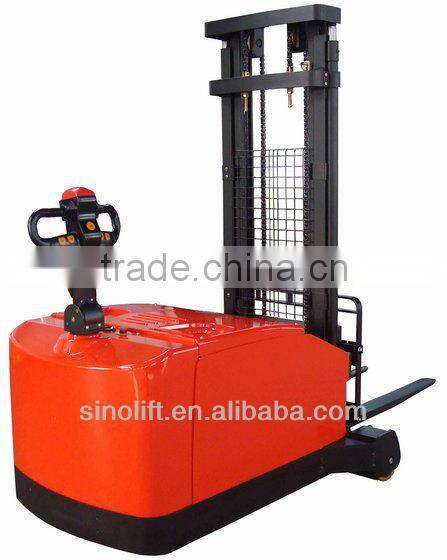

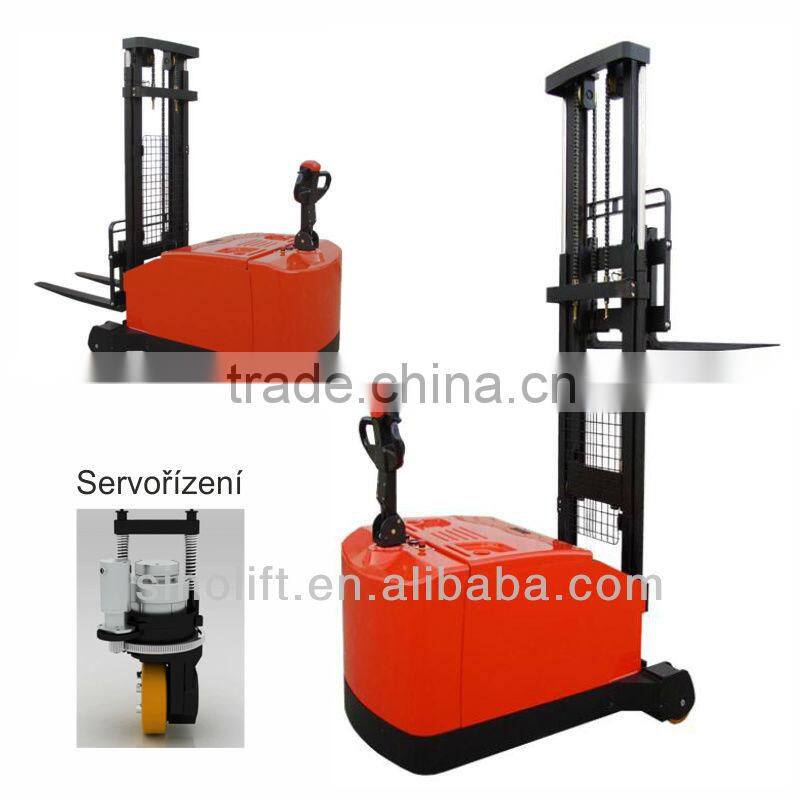

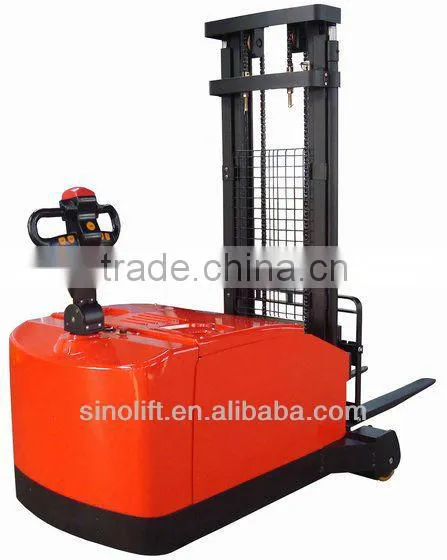

CPD Counterbalance Stacker

Name: CPD Counterbalance Stacker
Brand: SINOLIFT
SKU: 132452181
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPD

Specifications

Ergonomical foldable stand-on platform design with comfortable pad materials

1.Durable and rigid frame construction ensure the stackers to handle heavy loads.

2.Hourmeter and BDI(Battery Discharge Indicator) on time informs the operator of recharge requirements.

3.Ergonomical foldable stand-on platform design with comfortable pad materials.

4.A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.

5.Sideway battery exchange to reduce intervals, ensure working efficiency and productivity.

6.Forward/Backward tilt mast operation best suit to handle loads in right position.

7.Limit switch mounted on top of mast to precisely set the max. lifting height , avoid any risk of lifting motor overload.

8.Safe Grid covered on the mast to protect operator from any injured risk.

Model designation		CPD10-SE
Drive unit		Battery
Operator type		Walkie
Load capacity	Q (kg)	1000
Service weight (Incl. battery)	kg	1600
Tyre type		PU/PU
Mast/ fork carriage tilt, forward/ backward	α/ β (°)	3/6
Lift height	h3 (mm)	3000
Fork height, lowered	h13 (mm)	55
Overall length	l1 (mm)	2695
Overall width	b1/ b2 (mm)	1250
Fork dimensions	s/ e/ l (mm)	40/100/1070
Fork carriage width	b3 (mm)	812
Outside fork width, minimum/ maximum	b5 (mm)	200/ 812
Ground clearance, laden, below mast	m1 (mm)	50
Aisle width, 1000×1200 pallet crossways	Ast (mm)	2960
Aisle width, 800×1200 pallet lengthways	Ast (mm)	2955
Outer turning radius	Wa (mm)	1450
Travel speed, laden/ unladen	km/ h	3/5
Lifting speed, laden/ unladen	m/ s	0.13 / 0.23
Lowering speed, laden/ unladen	m/ s	0.13 / 0.23
Maximum gradeability, laden/ unladen S2 5 min.	%	5/7
Drive motor rating S2 60 min.	kW	1.5
Lift motor rating at S3 15%	kW	3
Battery voltage/ rated capacity (5h)	V/ Ah	24 /270
Battery weight (with box)	kg	235
Type of drive control		AC
Manufacturer		CURTIS
Steering		Power steering
