CDD-G Full Electric Stacker

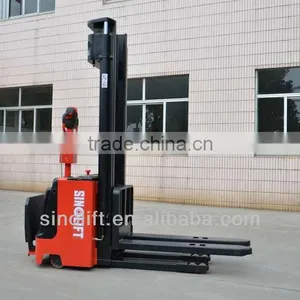

CDD-G Full Electric Stacker thumbnail-1
CDD-G Full Electric Stacker photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SINOLIFT
Contact Supplier Request Quote Chat Now
Shanghai Sinolift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name SINOLIFT
Model Number CDD-G

Specifications

Electric Stackers are designed to operate in narrow passage and limited space.

Electric Stackers are designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouse, supermarket and workshop etc. These trucks have following features and benefits, human system engineering design, Continuously Variable driver, wide view mast assembly made of Germany steel, maximum lifting height 5.2 meters, easy to assemble/dismantle storage battery, with optional standing plat.



Ergonomic steering arm easy to use
- Perfect visibility thanks to the narrow mast and the lateral guide position
- High frequency electronics and energetic recover
- Automatic braking system when the operator stops his action on the controls
- Battery charge indicator instrument
- Failure and anomaly auto-diagnosis

Model   CDD-10G CDD-12G CDD-15G
Rated Capacity kg 1000 1200 1500
Load Capacity mm 600 600 600
Drive Unit Battery
Operator type Walkie/self-propelled (with stand-on platform)
Lifting height mm 1600 (single mast), 2500/2900/3300(duplex mast),4500/5200(Triplex mast)
Fork height, lowered     H mm 90 90 90
Min. Turning radius       R mm 1425 1425 1650
Front hang                     E mm 360 360 340
Wheelbase                     D mm 1228 1228 1450
Overall length                 L mm 1800 1800 1988
Overall width                 B mm 850 850 850
Overall height               H2 mm 1975(single mast), 1785/1985/2165(duplex mast), 2290/2380(triplex mast)
Height with mast extended H1 mm 1975 (single mast), 2990/3390/3790(duplex mast), 5750/5940(triplex mast)
Fork size                   L/W/H mm 1150*160*70 1150*160*70 1150*180*70
Fork over width   B1 mm 560 560 560
Fork inside width           B2 mm 240 240 200
Travel speed (laden/unladen) km/h 4/6 4/6 4/6
Lifting speed (laden/unladen) mm/s 80/130 80/130 80/130
Lowering speed (laden/unladen) mm/s 110/90 110/90 110/90
Maximum gradeability (laden/unladen) % 5/8 5/8 5/8
Service brake   Electromagnetic
Drive wheel mm 250*76 250*76 250*100
Load wheel mm 80*70*2 80*70*2 80*70*2
Balance wheel mm 152*50 152*50 152*75
Drive motor kw 1.2 1.2 1.2
Lifting motor kw 2.2 2.2 2.2
Battery V/Ah 24/160 24/160 24/210
Type of drive control Seperated Excited,stepless CURTIS DC, or ZAPI AC
Service weight kg 650(single mast), 770/790/810 (duplex mast) 860/880/900
Remark:
1. Spercial lifting height is available.
2. Germany origin imported REMA, FREI tiller is option.
3. Can be with armrest and forged forks.
4. Straddle leg and pedestrain operated stackers are also available.
5. The specification in the table are for standard models only, for further information, please contact with us.

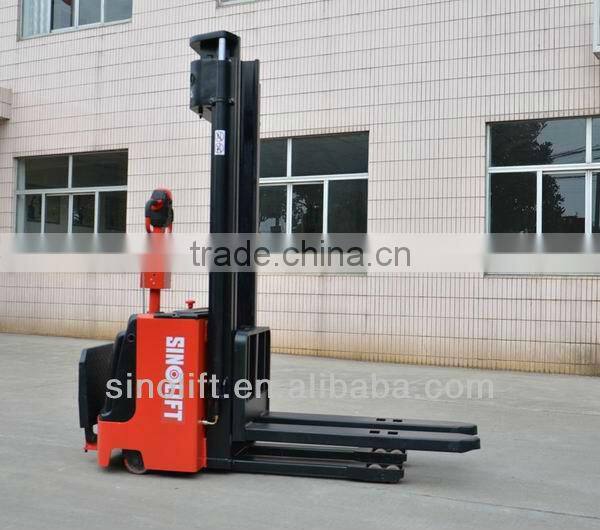

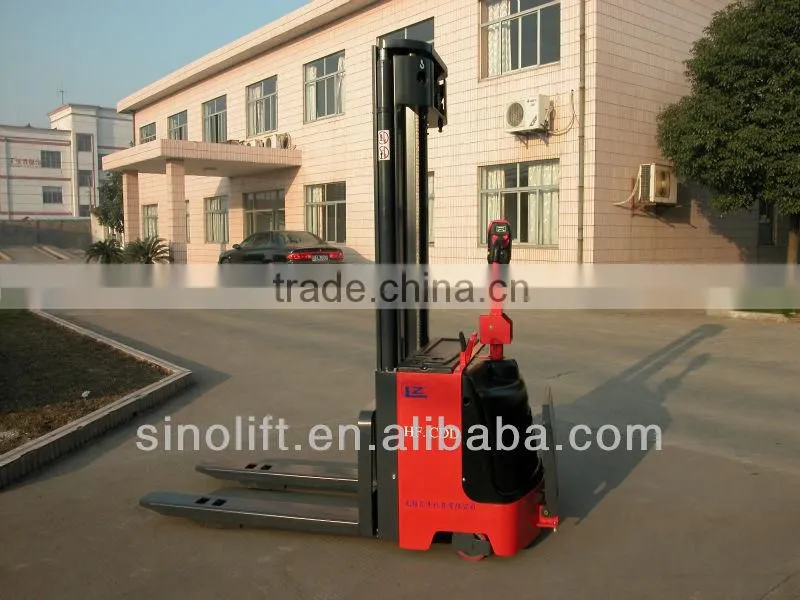

 CDD-G Full Electric stackerCDD-G Full Electric stacker
