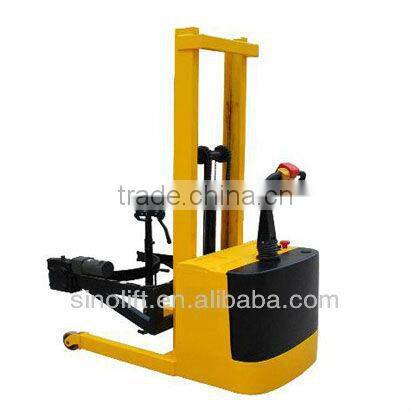

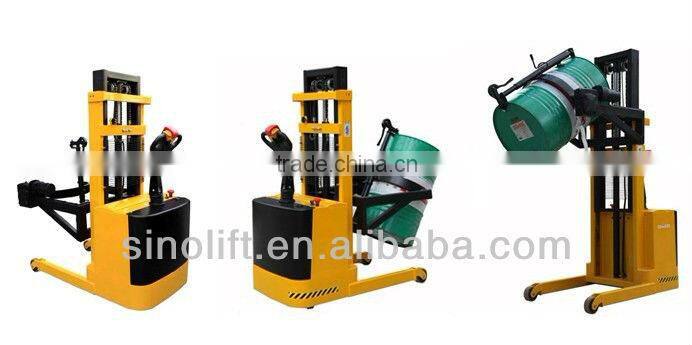

EQ0.5 Full Electric Drum Tilter

EQ0.5 Full Electric Drum Tilter thumbnail-1
EQ0.5 Full Electric Drum Tilter photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SINOLIFT
Model Number:
EQ05
Contact Supplier Request Quote Chat Now
Shanghai Sinolift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SINOLIFT
Model Number EQ05
After-sales Service Provided Overseas service center available

Specifications

Drum can tilt 360 degree (forward/backward)to pour materials out with power.

1.Provide I,II Area explosion proof refit
2.Drum can tilt 360 degree (forward/backward)to pour materials out with power.
3. high performance imported hydraulic pump
4. high quality automatic and intelligate quick handle
5.optional part:large capacity power traction battery
6.optional part:stand on type pedal



Model   EQ05
Drive mode   electric
Drive   pedestrian/standing
Rated capacity kg 500
Load center distance mm 500
Lift height mm 1600/2000/2500/3000
Mast static height mm 2080/1580/1850/2080
Oil drum size mm ø600X900
Oil drum turn angle front/rear ° 180/180
Overall length mm 1750
Overall width mm 940
Turning radius mm 1570
Travel speed laden/unladen km/h 4/5
Max gradeability laden/unladen % 5/8
Drive wheel size mm ø250*80
Support wheel size mm ø125*50
Balance wheel size mm ø100*50/55
Wheel material   Polyurethane
Service brake   electromagnetic
Drive motor power kw 0.75
Lift motor power kw 2.2
Turning motor power kw 0.3
Sound level at driver’s ear db(A) <70
Battery voltage/capacity V/Ah 24/120
Charger V/A 24/15
N.W kg 550-690
