2016 SINOLIFT CYT-P Series Hydraulic Lift Table with High Level
1) Features of CYT-P Series Hydraulic Lift Table
- Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office.
- Foot Pump hydraulic ally raises platform.
- Double Heavy-duty cylinder.
Option:
1. All lifting table trucks have two kinds of lowering systems wire or nut.
2. Handle with plate protection.
3. Handle with rubber.
2) Specification Dataof CYT-P Series Hydraulic Lift Table
| Model | CYT36P | CYT48P | CYT60P | |
| Capacity Q | kg | 908 | 908 | 908 |
| Dimension of Table(LXW) | mm | 915x610 | 915x610 | 915x610 |
| Min.table height h2 | mm | 609 | 762 | 915 |
| Max.table height h1 | mm | 915 | 1220 | 1524 |
| Lifting speed | mm/s | ≥7 | ≥7 | ≥7 |
| Lowering speed | Adjustable | Adjustable | Adjustable | |
| Overall length | mm | 1250 | 1250 | 1250 |
| Overall width | mm | 660 | 660 | 660 |
| Overall height | mm | 970 | 970 | 970 |
| Outer dia.of the front wheel | mm | 125 | 125 | 125 |
| Outer dia.of the rear wheel | mm | 125 | 125 | 125 |
| Net weight | kg | 120 | 130 | 140 |

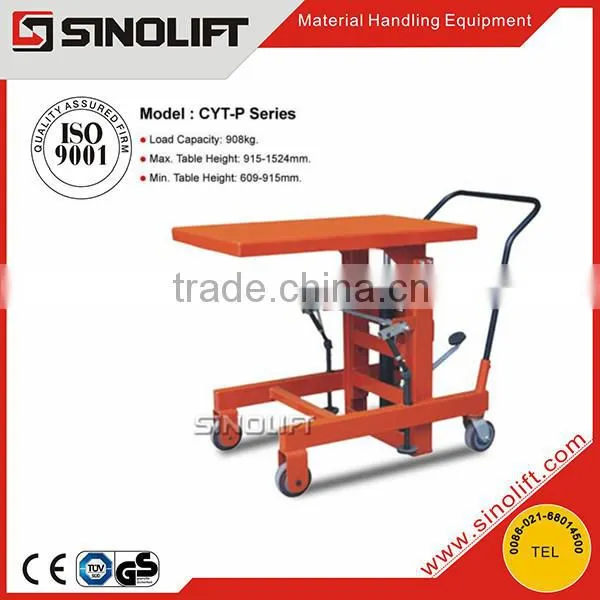

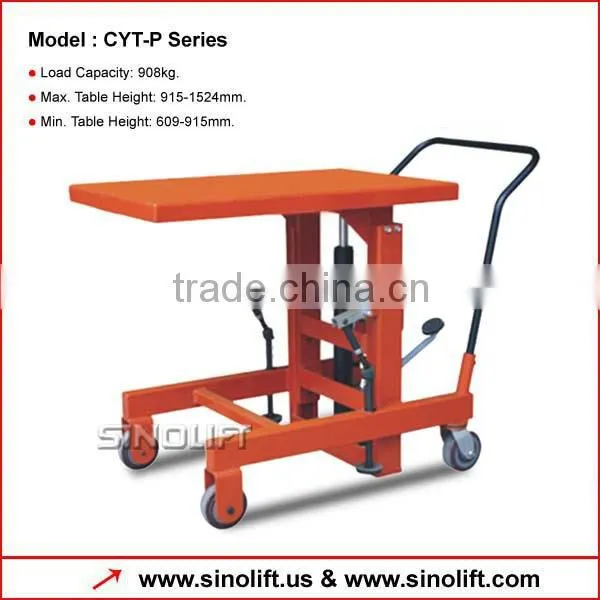

3) Photos of CYT-P Series Hydraulic Lift Table
4) workshop of CYT-P Series Hydraulic Lift Table
5) Certificates
6) Exhibitions
7)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
8) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
9) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
