Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > 2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker

Name: 2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker
Brand: CDD-E Double Pallet Full Electric Stacker
SKU: 132450391

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker thumbnail-1

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker thumbnail-2

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker thumbnail-3

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker photo-1

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker photo-2

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker photo-3

US$ 300 - 500 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

CDD-E Double Pallet Full Electric Stacker

Model Number:

SINOLIFT CDD-E Double Pallet Full Electric Stacker

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name CDD-E Double Pallet Full Electric Stacker

Model Number SINOLIFT CDD-E Double Pallet Full Electric Stacker

After-sales Service Provided Engineers available to service machinery overseas

2016 SINOLIFT CDD-E Double Pallet Full Electric Stacker

1)Features of CDD-E Double Pallet Full Electric Stacker

- Imported electric control unit and hydraulic unit

- High stability and good operating flexibility

- Low noise, no pollution, and high reliability

-T raditionally international style

- It operates simple, steady and reliable. Person can go together with stacker.

2)Specification Date of CDD-E Double Pallet Full Electric Stacker

Model	CDD1.2E
Standard (CDD-E)	CDD1.2E/16	CDD1.2E/24	CDD1.2E/29	CDD1.2E/31	CDD1.2E/33
Capacity Q (Kg)	1200
Max Lifting Height H₃(mm)	1600	2450	2900	3100	3300
Load Center C (mm)	600
Min Height of Forks (mm)	90
Fork Length (mm)	1150
Fork Width (mm)	540
Min Height of Stacker h₁(mm)	2090	1800	2025	2125	2225
Max Height of Stacker h₄(mm)	2246	3096	3546	3746	3946
Width of Stacker B (mm)	940	940	940	1080	1080
Length of Stacker (mm)	1925
Min Turning Radius (mm)	1525
Net Weight (without battery) (Kg)	613	670	692	705	713
Battery	DG240AH/24V 6Q-100AH/24V

Model	CDD1.5E
Standard (CDD-E)	CDD1.5E/16	CDD1.5E/24	CDD1.5E/29	CDD1.5E/31	CDD1.5E/33
Capacity Q (Kg)	1500
Max Lifting Height H₃(mm)	1600	2450	2900	3100	3300
Load Center C (mm)	600
Min Height of Forks (mm)	90
Fork Length (mm)	1150
Fork Width (mm)	540
Min Height of Stacker h₁(mm)	2090	1800	2025	2125	2225
Max Height of Stacker h₄(mm)	2246	3096	3546	3746	3946
Width of Stacker B (mm)	940	940	940	1080	1080
Length of Stacker (mm)	1925
Min Turning Radius (mm)	1525
Net Weight (without battery) (Kg)	620	677	699	712	720
Battery	DG240AH/24V 6Q-100AH/24V

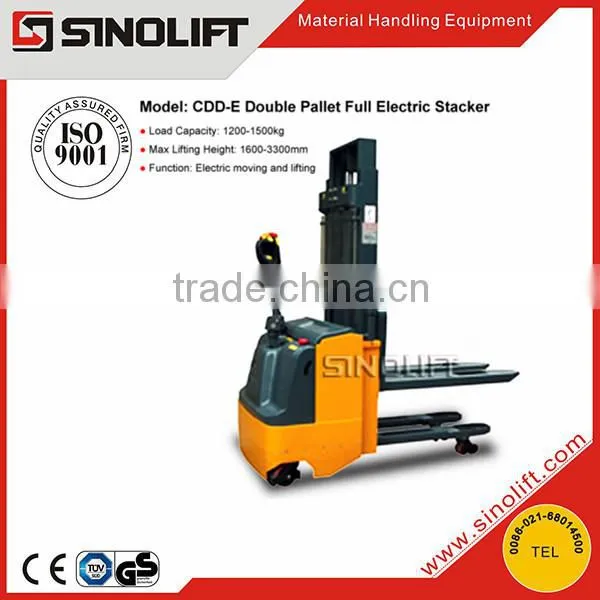

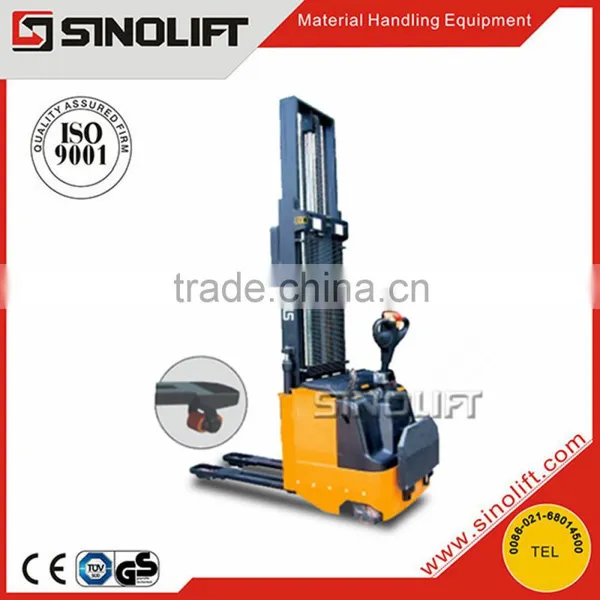

3)Photos of CDD-E Double Pallet Full Electric Stacker

4)Workshop of CDD-E Double Pallet Full Electric Stacker

5)Certificates

6) Exhibitions

7)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

8) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

9) Why choose us?

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.

2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.

3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.

4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.

5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
