2015 SINOLIFT EZF CounterBalanced Mini Electric Pallet Stacker with CE Certificates
1) Features of Mini Electric Pallet Stacke
Easier and faster lifting operation.
High quality hydraulic motor made in Italy.

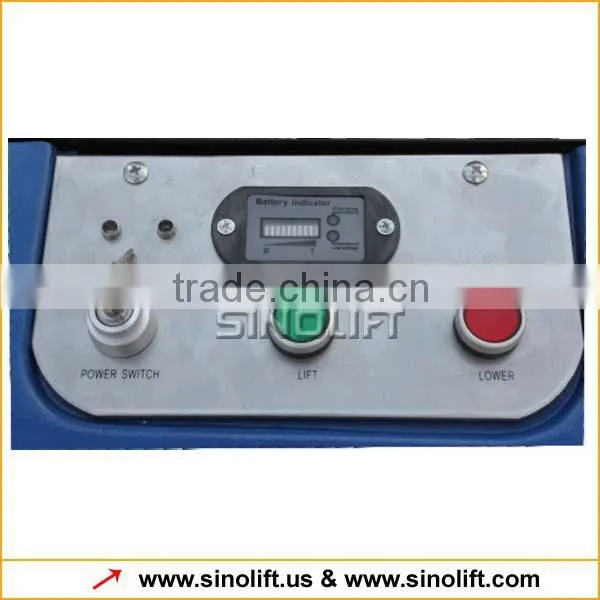

Maintenance-free battery and clear operating display.
Built-in charge can be very convenient and safety
Counter-weight structure ensure easily to enter into any load pallets.
No-marking castor as standard.
Conforms to EN1757:1 2001.
2) Specification Data of Mini Electric Pallet Stacke
| Model | EZ2585 | EZ2512 | EZ2515 | |
| Capacity | (kg) | 200~250 | 150~250 | 150~250 |
| Max. Fork Height | H (mm) | 750 | 1100 | 1400 |
| Min. Platform Height | H1 (mm) | 20(60) | 20(60) | 20(60) |
| Fork Size | L1 (mm) | 550x70 | 550x70 | 550x70 |
| Fork Size | W (mm) | 600x100 | 600x100 | 600x100 |
| Fork Adjustable Width | D (mm) | 155~550 (superlow) 215~550 (standard) | ||
| Front Load Wheel | d (mm) | 125x50 | 125x50 | 125x50 |
| Rear Steering Wheel | d (mm) | 125x50 | 125x50 | 125x50 |
| Lifting Speed (Laden/Unladen) | mm/s | 95/130 | 95/130 | 95/130 |
| Lowering Speed (Laden/Unladen) | mm/s | 115/65 | 115/65 | 115/65 |
| Power Unit | V/kw | 12/0.8 | 12/0.8 | 12/0.8 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 |
| Net Weight(PS/EP) | (kg) | 218 | 225 | 230 |
| Noise-free Castor | O | O | O | |

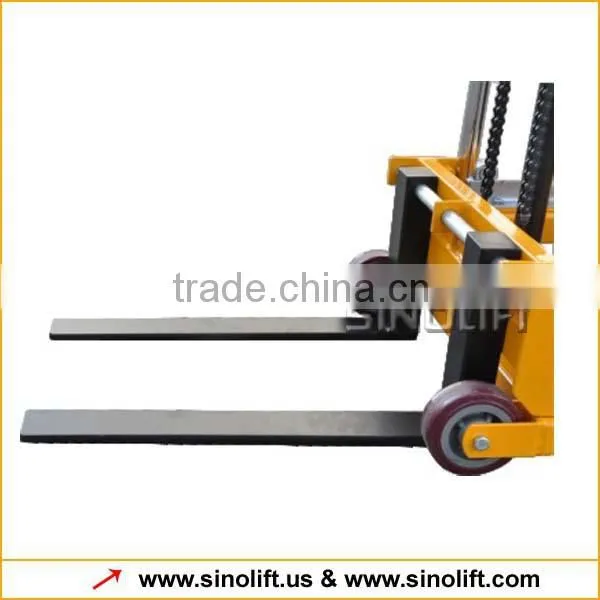

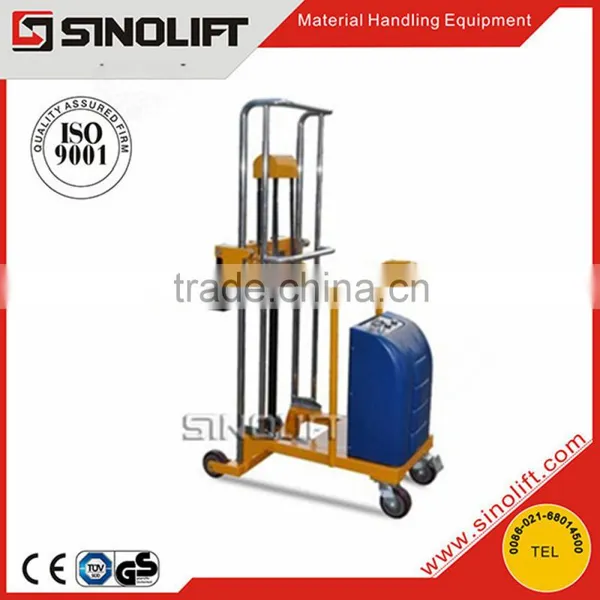

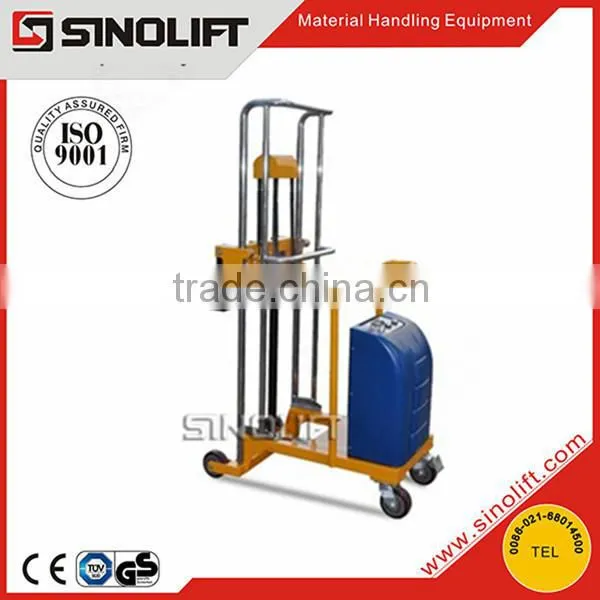

3) Photos of Mini Electric Pallet Stacke
4) workshop:
5)Certificates of Hand Mini Stacker
6)Terms and Service Hand Mini Stacker
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program of Hand Mini Stacker
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
11) Contact Us
Mobile:0086 15692169117
Skype:Sinolift-Penny
WhatsApp:008615692169117
