Help CenterESR Series Scale Pallet Truck With CE
Related Products
Specifications
ESR Series Scale Pallet Truck with CE1.Capacity: 2000kg
2.Max.f ork height : 190-200mm
3.Min. fork height : 75-85mm

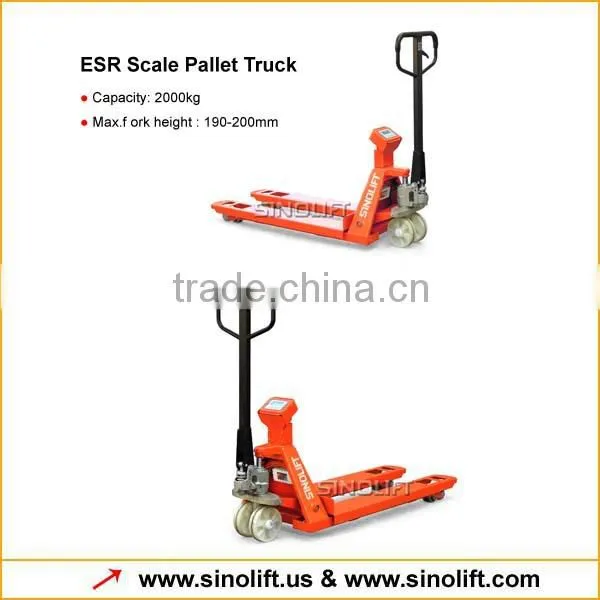

ESR Series Scale Pallet Truck with CE
1)Features
· Pallet truck with scale
· Capacity:2000kg in 1 kg steps
· Tolerance: +/- 2 kg
· Scale functions: zero correction, gross/net weighing, total weight
· Power supply: 4×1.5V AA batetries
· Low battery warning + auto shut off function after 3 minutes
· Total fork width 570mm, width per fork 180mm, fork height 90mm, fork length 1150mm
· Polyurtane steering wheels and tandem fork rollers
· Water and dust proof to norm IP65
One of the most important characteristics for a reliable mobile scale. IP65 means that the pallet truck scale can be used outside or lorries and be cleaned with water (but not by high pressure !!!) The load cells in the forks have an even higher protection level.
2)Specifications
| 1KG=2.2LB 1INCH=25.4MM | ||||
| Item/Type | HP ESR20 | HP ESR20/L | ||
| Capacity Q | kg | 2000 | 2000 | |
| Min.fork height H1 | mm | 85 | 75 | |
| Max.fork height H2 | mm | 200 | 190 | |
| Steering wheel D | mm | Φ180×50 | Φ180×50 | |
| Tanden | mm | Φ74×70 | Φ64×70 | |
| Size of fork C×H | mm | 182×50 | 182×50 | |
| Width overall forks B | mm | 555/690 | 570/690 | |
| Fork length I | mm | 1150/1220 | 1150/1220 | |
| Overall length A1 | mm | 1580/1650 | 1580/1650 | |
| Battery | mm | DC 1.5V×4 | DC 1.5V×4 | |
| Optional | Thermal Printer | |||
3)Pictures
4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
Lead time |
3-4 weeks |
Packing |
Standard export fumigated wooden pallet, foam rubbers |
Payment term |
T/T payment in advance; L/C at sight |
Lead term |
FOB Shanghai or CFR/CIF |
Warranty period |
12 months |
Shipping method |
by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
