Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > CQD-E Series Pink Color Power Reach Stacker

CQD-E Series Pink Color Power Reach Stacker

Name: CQD-E Series Pink Color Power Reach Stacker
Brand: Sinolift
SKU: 132441791

CQD-E Series Pink Color Power Reach Stacker thumbnail-1

CQD-E Series Pink Color Power Reach Stacker photo-1

Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Sinolift

Model Number:

CQD-E

After-sales Service Provided:

Engineers available to service machinery overseas

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Sinolift

Model Number CQD-E

After-sales Service Provided Engineers available to service machinery overseas

CQD-E Series Pink Color Power Reach Stacker

1)Features Electric Reach Stacker

With 1000/1300KGS load capacity, max. lifting height 4.5m, suitable for various conditions use, our WRS series Reach stacker can be a good replacement for forklift.
Equipped with good sight mast and ergonomic design control system, enhance the working efficiency and reduce operator's fatigue. Streamlined appearance, compact design, brings unexpected joy and comfort to the users. Small turning radius and advanced electronic controller system enhance the stability of the vehicle.

2)Specification Date Electric Reach Stacker

Characterics	Model			CQD10E	CQD15E
	Vehicle Type			Electric Reach Stacker
	Power type			Battery operated
	Rated capacity		kg	1000	1500
	Load center		mm	500	500
	Operator control type			Ride-on	Ride-on
	Wheelbase		mm	1280	1380
	Reach length		mm	500
	Overall weight		kg	1636	1836
Wheels	Wheel material			PU	PU
	Size of front wheel		mm	210	210
	Size of drive wheel		mm	230	230
	Size of balance wheels		mm	124	124
	Wheel quantity			2* front wheel + 1* drive wheel + 1* balance wheel
	Track width,front		mm	900	900
	Track width,rear		mm	608	608
Dimensions	Lowered mast height		mm	1790	1790
	Lifting height		mm	70~1600	70~1600
	Raised mast height		mm	2040	2040
	Overall length		mm	2300	2300
	Fork length		mm	1070	1070
	Overall width		mm	850/908	850/908
	Outer width of the fork		mm	200~680	200~680
	Min. height of fork		mm	70	70
	Clearance		mm	40	40
	Height of frame		mm	840	840
	Turning radius		mm	1650	1750
Performance	Travel speed	laden	km/h	5.3	5.3
		unladen	km/h		6
	Lift speed	laden	mm/s	75	75
		unladen	mm/s	105	105
	Lowering speed	laden	mm/s	145	145
		unladen	mm/s	80	80
	Gradeability	laden	%	8%	8%
		unladen	%	10%	10%
Motor	Drive motor power		kw	1.6	1.6
	Lift motor power		kw	2.2	2.2
	Battery voltage/rated		V/Ah	24/210	24/210
	Battery capacity
	Battery weight		kg	210	210
	Battery dimensions(L×W×H)		mm	650x200x540
Remark:
1. The above specifications is set based the lifitng height 2-stage mast: 1.6m, Special lifting height available.(2-Stage mast:2.5m,2.7m,3.0m,3.3m,3.6m,4m. 3-stage mast:4.3m,4.5m,4.8m,5m,5.5m,6m)
2. Attachment available.
3, Full free lift (FFM) is available.
4. The specification in the table are for standard models only, specification are subject to change without notice. For further information ,please contact us.

Mast Options
Mast Model	Max. Lifting height (mm)	Mast lowered height (mm)	Mast extended height (mm)
Mast Model	h3	h1	h4
M16	1600	1790	2040
M25	2500	2040	3090
M30	3000	2190	3590
M33	3300	2340	3890
FFM45	4500	2040	5090

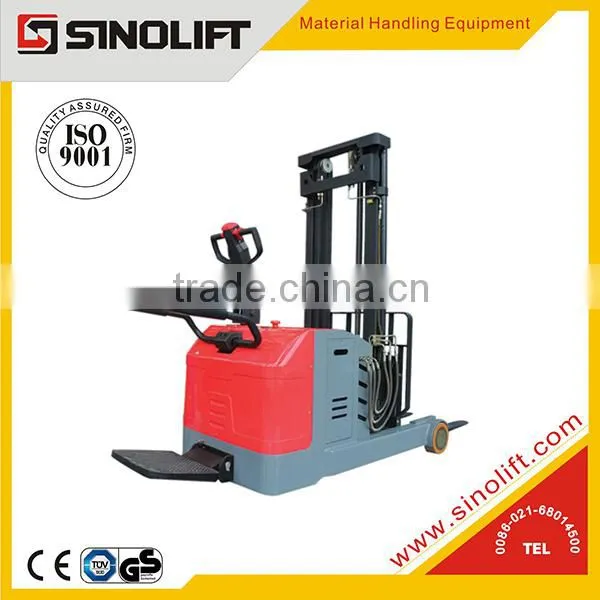

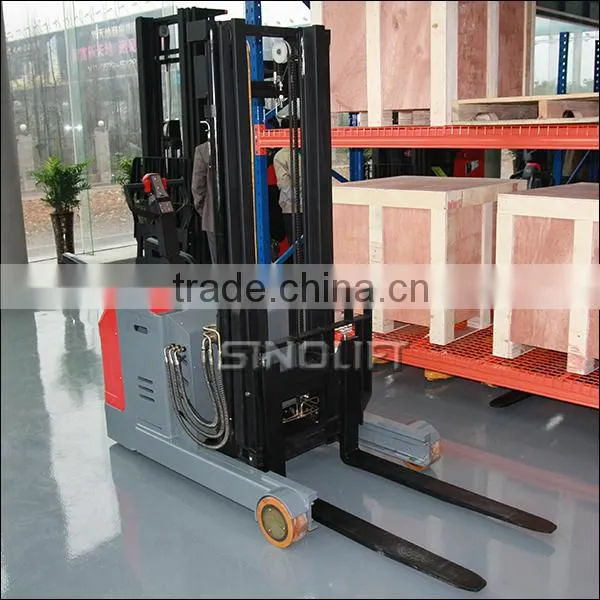

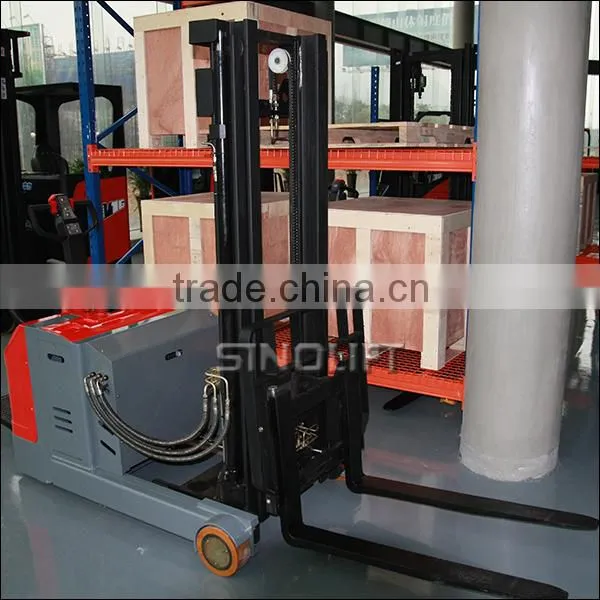

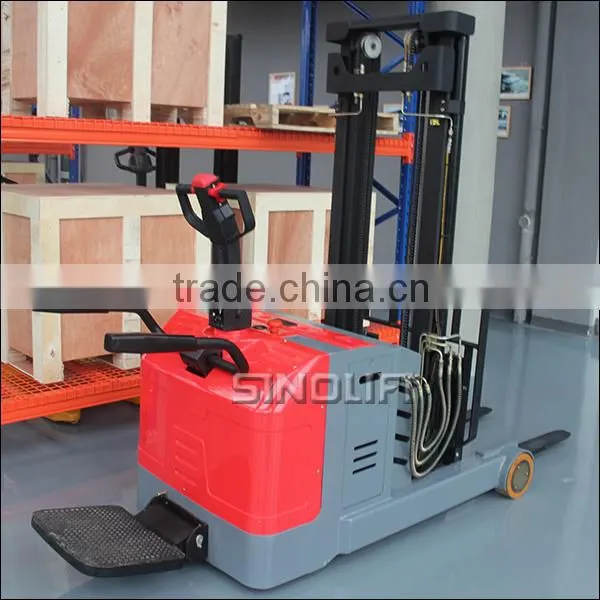

3)Photos Electric Reach Stacker

4)Workshop Electric Reach Stacker

5)Certificate Electric Reach Stacker

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.

6)Terms and Service Electric Reach Stacker

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

7) Warranty Policy and Service Program Electric Reach Stacker

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
