Sinolift-XS Diesel Nozzle Tester for Europe
- 300 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Lvrui machinery powder ash special air chute sealing good no noise wide range of application
- Lvrui mechanical fly ash cement XZ630 chute wide application range solid and durable
- Cement mineral powder dry ash raw material CP400 electro-pneumatic flow control valve Green Rui machinery
- Aeration box Homogenization warehouse aeration equipment customized according to a variety of specifications
- Stable performance computer Board Recycling Machine
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | SINOLIFT | Model Number: | Sinolift-XS Diesel Nozzle Tester for Europe |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Sinolift-XS Diesel Nozzle Tester for Europe
1) Features
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.
In basic design with 0-40 Mpa (0-400 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge, this tester can also be used for testing light crude oil injection valves.
Model No.: XS001
pressure gauge range (Mpa):0-40
overall dimensions (mm): 390*260*180
capacity of fuel tank (L):3.5
largest pressure tested (Mpa):40
net weight (kg): 5.1
2) Profile
The XS series Nozzle Tester was reviewed by state intellectual Property Office of the People’s Republic of China. According to the Implementing Regulations of the Patent law of China. Our company have been awarded the three patents: Invention Patent, Utility Type Patents and the Appearance Design Patent.
The XS series Nozzle Tester has been awarded the first prize for the National Award for Technological Invention and the Second prize for the National Award for Technological Innovation.
The XS series Nozzle is the core instrument for testing diesel engine’s fuel injectors. This high performance product is of high accuracy, user-friendly and have long operation lifetime. It also adopt compact design to ensure small size and light weight, With the aid of this tester, you can significantly improve your engine’s fuel efficiency while largely boost driving power, and say good-by to the polluted black smoke of your vehicle. In conclusion, this tester is a world-leading clean tech innovation and very welcomed by consumers. We believe it will be a good business opportunity for any potential partners.
3) Installation Guide
1) Sagety precaution
Being operated, the nozzle tester must be far away from flame or high temperature place , such as welding and so on.
2) Purpose of the nozzle tester
It is used to adjust and calibrate the injecting pressure, atomizing quality, injecting angle and
needle valve seas of nozzle of diesel engine in order to ensure excellent power and economic performance of diesel engine.
3) Main technical parameter of the nozzle tester
Type | Pressure gauge range (MPa) | Overall dimensions L×W×H (mm) | Capacity of fuel tank(L) | Largest pressure Tested (MPa) | Net weight
(Kg) |
XS001 | 0~60 | 390×260×180 | 3.5 | 60 | 5.1 |
4) Performance of the nozzle tester
Block the joint where the nozzle is connected. Pump oil to a pressure -over 30 MPa. Then stop pump and watch the pressure descending from 30 MPa. It is less than 2 MPa. within 3 minutes.
5) Maintenance of the nozzle tester.
1.1 Calibrating fuel must be good quality light diesel deposited over 48 hours.
2.2 When filling fuel, filter it with silk-cloth, Do not fill the tank with unfiltered diesel.
3.3 Cover the tester with anti-dust cover after testing.
6) Experiment of Atomizing Quality
Watch the atomizing quality of fuel injecting. The fuel grain should be tiny, well distributed. No fuel current (or drop) seen with eyes. No obvious fuel stain appears if it is injected on the oil absorbing paper. Color of fuel stain from center to outer circle should become lighter and form well distributed circle. Pumping fuel action should be quick. There is no fuel drop or fuel dropping after pumping fuel.
Atomizing should be correct. Its taper angle should be within specified range.
7) Testing of injection Pressure of injector assembly.
Turn the injector assembly tested onto the nozzle joint tightly with high pressure pipe, then do the experiment and adjustment of pumping fuel. When pumping fuel, watch the reading on the pressure gauge. At the same time, compare it with the specified pressure range of the injector assembly to see if it is normal. If the pressure is too high or too low, adjust the pressure spring of injector assembly.

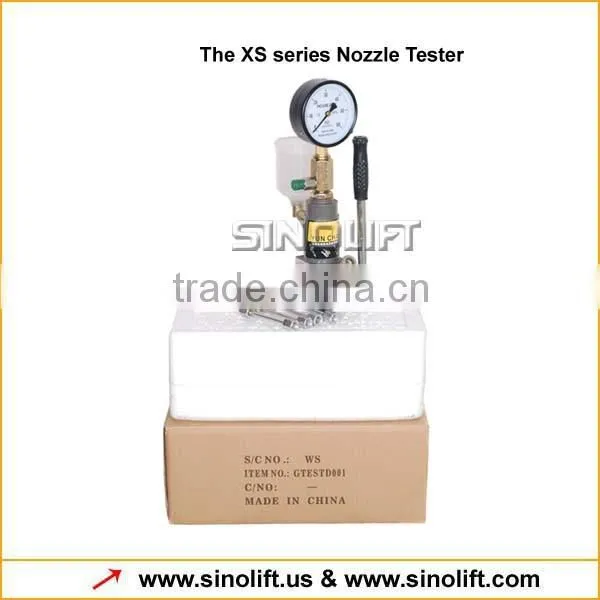

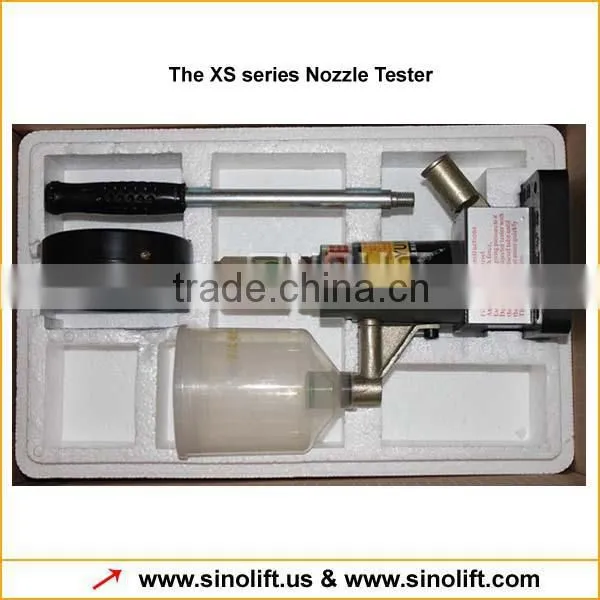

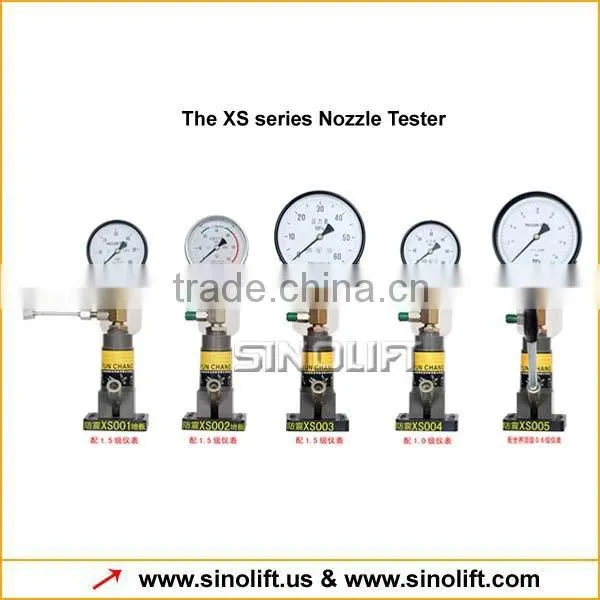

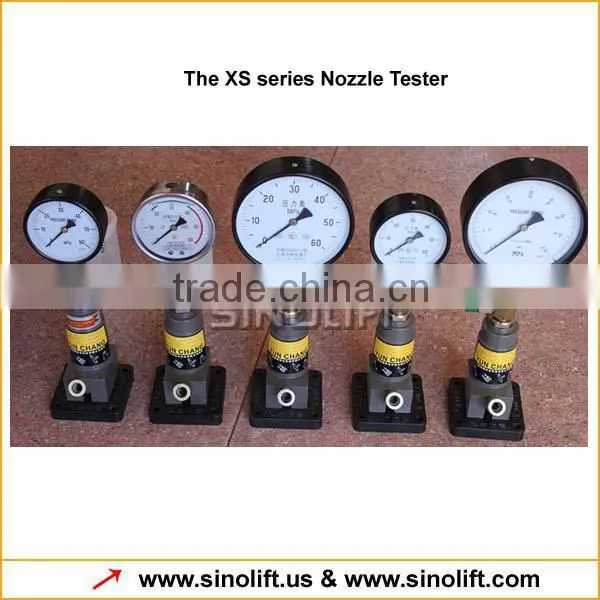

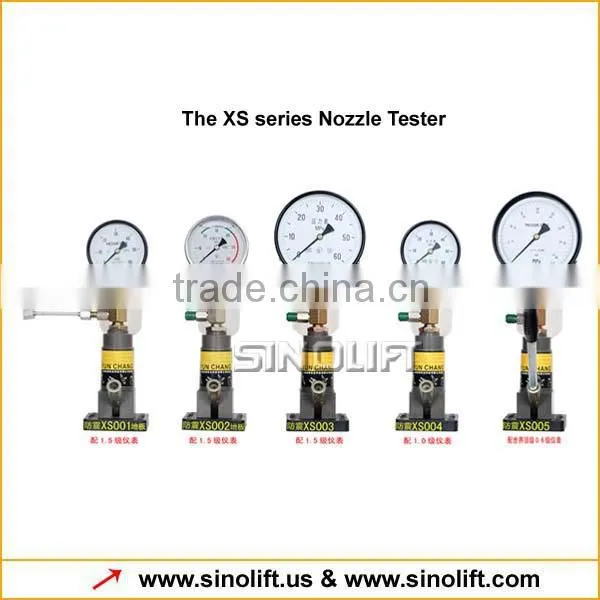

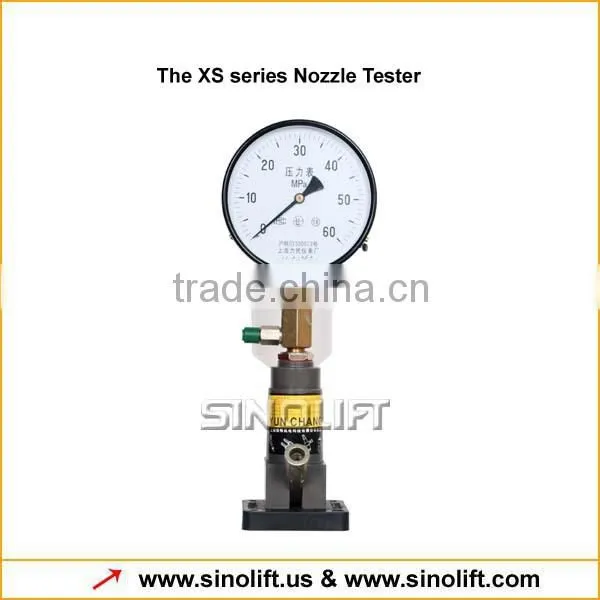

5) Photos
6) terms and service
1.Lead time | 3-4 weeks |
2.Packing | Standard export fumigated wooden pallet, foam rubbers |
3.Payment term | T/T payment in advance; L/C at sight. |
4.Lead term | FOB Shanghai or CFR/CIF |
5.Warranty period | 12 months |
6.Shipping method | by sea or air; by express. |
7) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
