2015 Sinolift LT0892 Series Lateral Manual Hydraulic Pump Pallet Tilter with CE
1)Features of LT0892 Series Lateral Manual Hydraulic Pump Pallet Tilter
A manual stacker with 20° tilt facility in either direction
Designed to reduce operator fatigue by positioning the pallet at the ergonomically correct working height. Lifting a pallet to 920mm, these trucks save repetitive bending and stretching.
Supplied as standard with parking brake and foot protectors.
Conforms to EN1757-1.
2)Specification of LT0892 Series Lateral Manual Hydraulic Pump Pallet Tilter
| Model | LT0892 | |
| Capacity | kg | 800 |
| Load center | mm | 600 |
| Lifting height | mm | 920 |
| Overall mast height | mm | 1230 |
| Length of fork | mm | 1150 |
| Width of fork | mm | 150 |
| Width over forks | mm | 540 |
| Min.Height of Fork | mm | 90 |
| Fork tilt angle | degree | Left or right 20° |
| Turning radius | mm | 1600 |
| Steering wheel | ø200x50 | |
| Load wheel | ø80x60 | |
| Oversize (L x W x H) | mm | 1630x730x1320 |
| Net Weight | kg | 210 |
| Minimum Qty. | pcs | 4 |

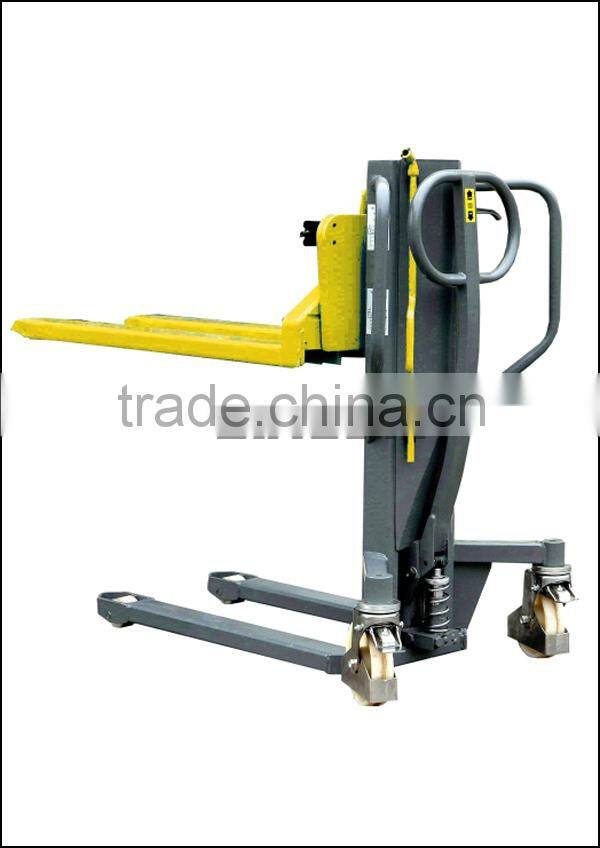

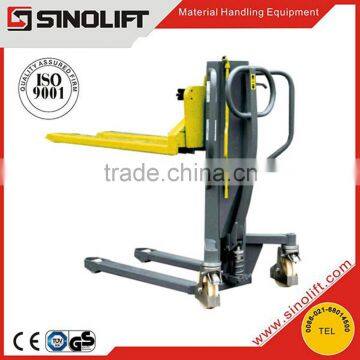

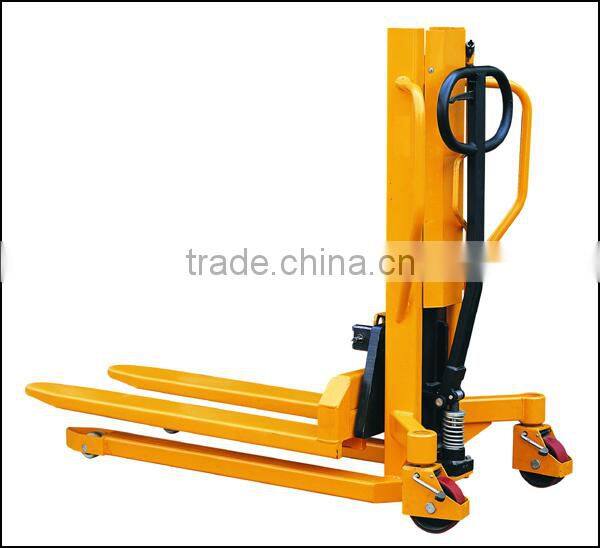

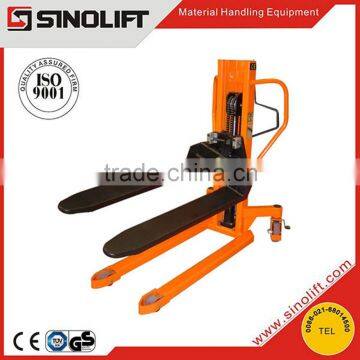

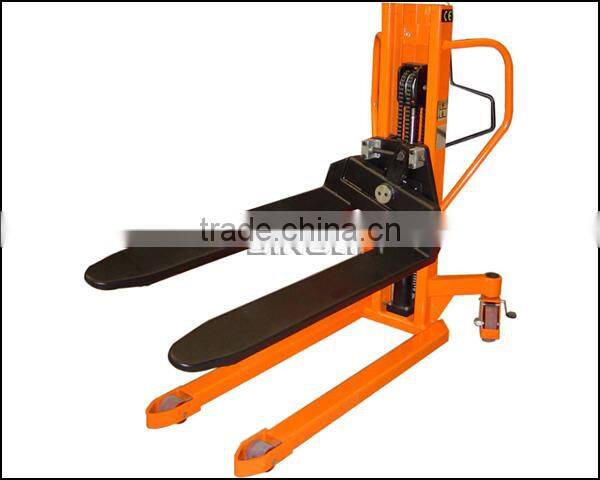

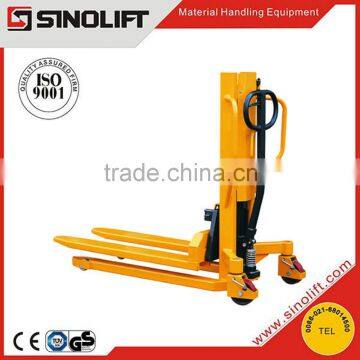

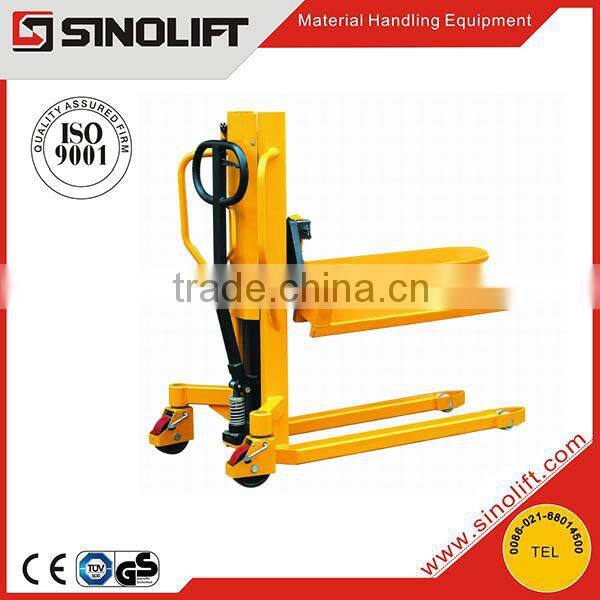

3)Photos of LT0892 Series Lateral Manual Hydraulic Pump Pallet Tilter

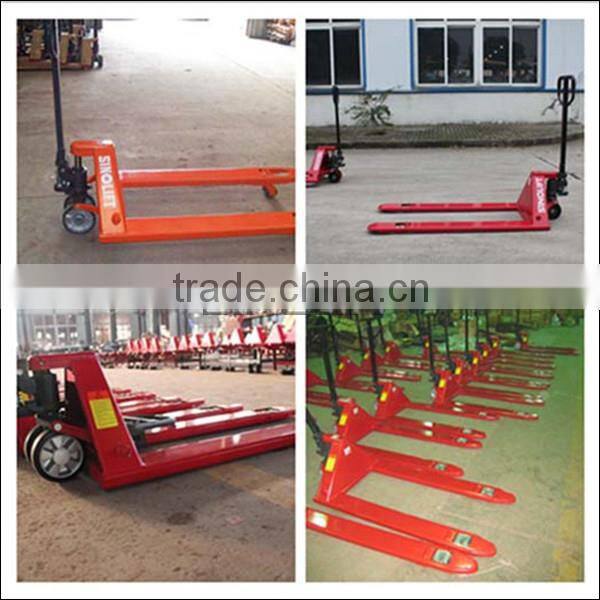

4)Workshop of LT0892 Series Lateral Manual Hydraulic Pump Pallet Tilter
5)Contact us
6)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
7)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
8) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
9) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
