DT500 Large Oil Drum Handler
1) Features Drum Handler
- Integrated functions of transporting, stacking and weighting.
- Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply.
- Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.
- Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;
- Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm
- Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.
- Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
2) Specification Data Drum Handler
| Model | DT500 | |
| Rated Capacity | kg | 500 |
| Max. Lifting Height | mm | 1600 |
| Acceptable Drum Type | steel ,plastic,fiber | |
| Powered Lifting | yes/no | yes |
| Drum Tilting (electric/manual) | without dumping device | |
| With Weighing Scale | yes/no | no |
| Lifting Speed | mm/s | 120 |
| Load Rollers Size | mm | Ø80x55 |
| Steering Wheel Size | mm | Ø150x50 |
| Size Between Legs(Inner/Outer) | mm | 640/800 |
| Leg Length | mm | 630 |
| Turning Radius | mm | 1750 |
| Lifting Motor Power | KW | 1.5 |
| Battery | V/AH | 12/120 |
| Charger for Stacker | V | 12 |
| Charger for Weighing Scale | V | 6 |
| Overall Size(LxWxH) | mm | 1200x850x2060 |
| Net Weight | kg | 208 |

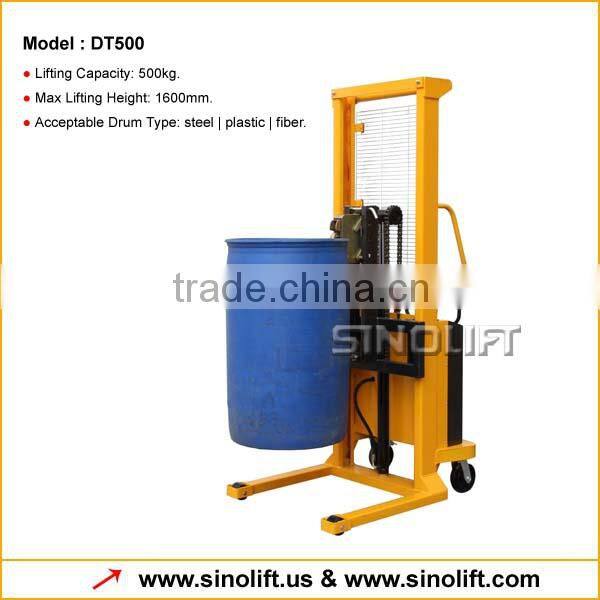

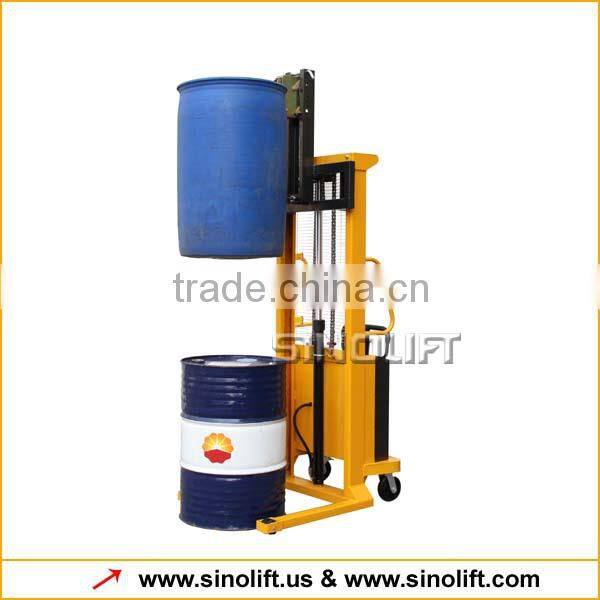

3) Photos Drum Handler
4) terms and service Drum Handler
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
5) Warranty Policy and service program Drum Handler
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
7) Why choose us? Drum Handler
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
