Home > Products > 12. Drum Handling Equipment > DY350A Portable Hydraulic Drum Mover
DY350A Portable Hydraulic Drum Mover
- 1000 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
Air chute pneumatic two-way valve chute electric T-valve steering valve
-
Cement bulk dust removal machine base bulk machine automotive bulk dust collection equipment
-
XZ500 air transport chute cement plant air transport aircraft ore powder transport equipment
-
SZ-I50 dry powder cement warehouse bottom bulk machine Fixed truck bulk head
-
Warehouse bottom automotive bulk machine SSQ-400 wear-resistant clinker aggregate sand and stone clean bulk head
-
Ash dump valve FKQ300 pneumatic switch valve Electric flow control valve
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | Sinolift | Model Number: | DY350A |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DY350A Portable Hydraulic Drum Mover
1) Features
- Multifunctional drum truck with new design and outstanding performance
- High lift, heavy-duty and external oil cylinder provide conventient and durable operation
- Adjustable olecranon; suitable for 30~55 gallon steel or 210L plastic drums
- More suitable for rough land surface with elastic wheel and easy movement
2) Specification Data
Model |
| DT350A | DT350A-1 | DT350A-2 |
Capacity | kg | 350 | 350 | 350 |
Drum Size | mm | 30~55gallon (Ø450x700mm~Ø572x900mm)steel, 210L plastic | ||
Lifting Height | mm | 450 | 450 | 450 |
Leg Width | mm | 650(850) | 650(850) | 650(850) |
Dia of Front Wheel x Qty' | mm | Φ180×2 | Φ180×2 | Φ250×2 (with elastic) |
Dia of Rear Wheel x Qty' | mm | Φ150×2 | Φ150×1 | Φ150×2 |
Overall size | mm | 830×900×1080 | 830×900×1080 | 900×940×1100 |
Net Weight | kg | 68 | 66 | 70 |

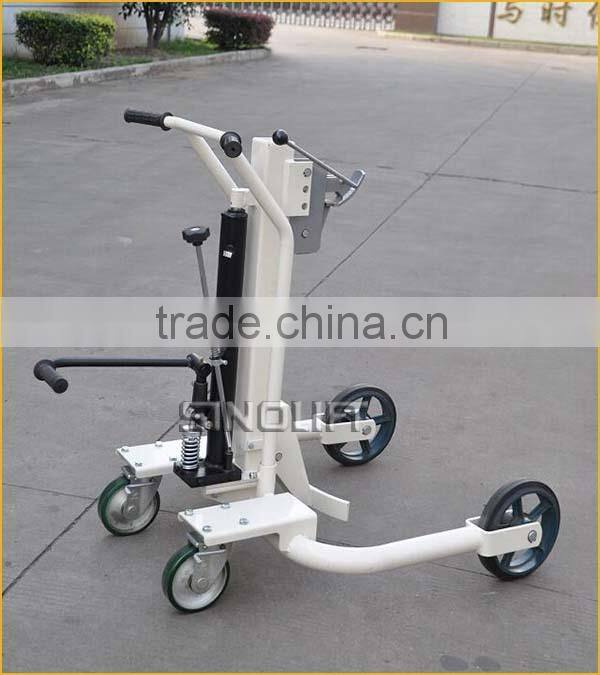

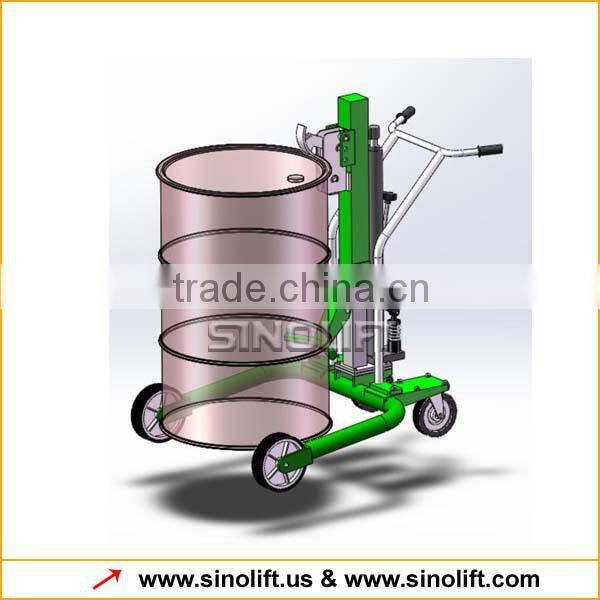

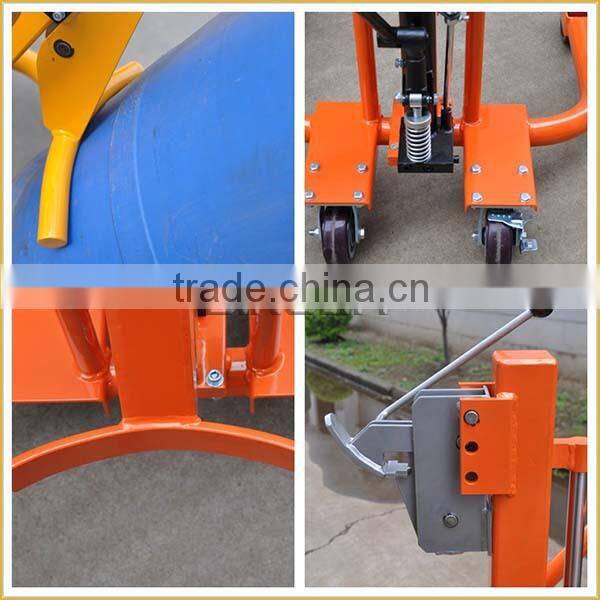

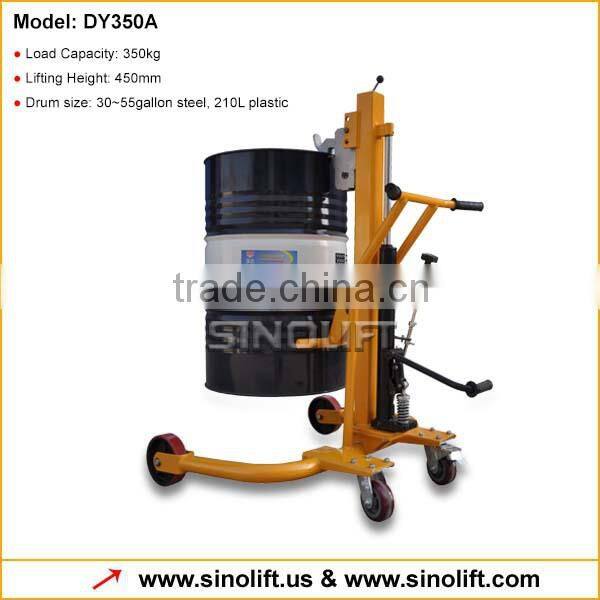

3) Photos
4) workshop
5) terms and service:
1.Lead time | 3-4 weeks |
2.Packing | Standard export fumigated wooden pallet, foam rubbers |
3.Payment term | T/T payment in advance; L/C at sight. |
4.Lead term | FOB Shanghai or CFR/CIF |
5.Warranty period | 12 months |
6.Shipping method | by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
