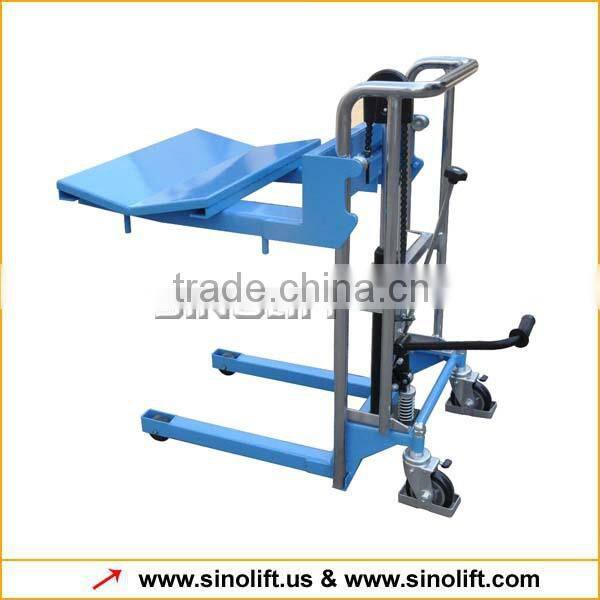

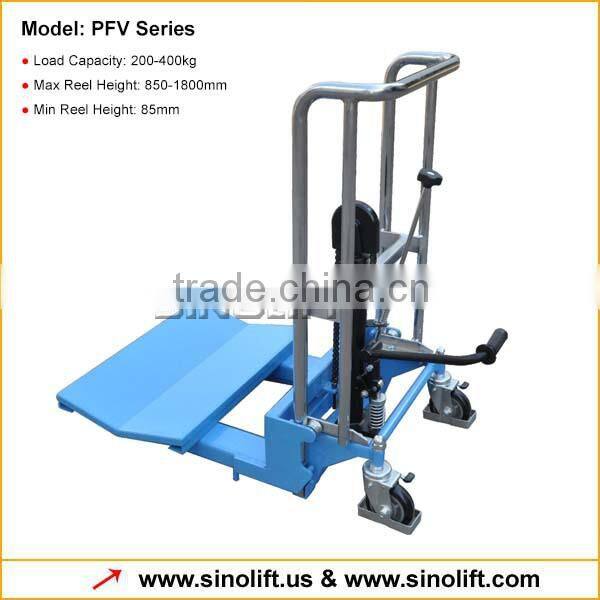

PFV Manual Mini Stacker with V-shape Platform for Reel
1) Features
- Robust construction.
- Hard chromium plated frame.
- Effortless Movement.
- Polyurethane rollers with bearing
- No-marking castor as standard. Silent castor is optional.
- Widely used with low platform and various accessories as option.
- Design of double chain and big wheels can be stable and reliable.
- Conforms to EN 1757-1.

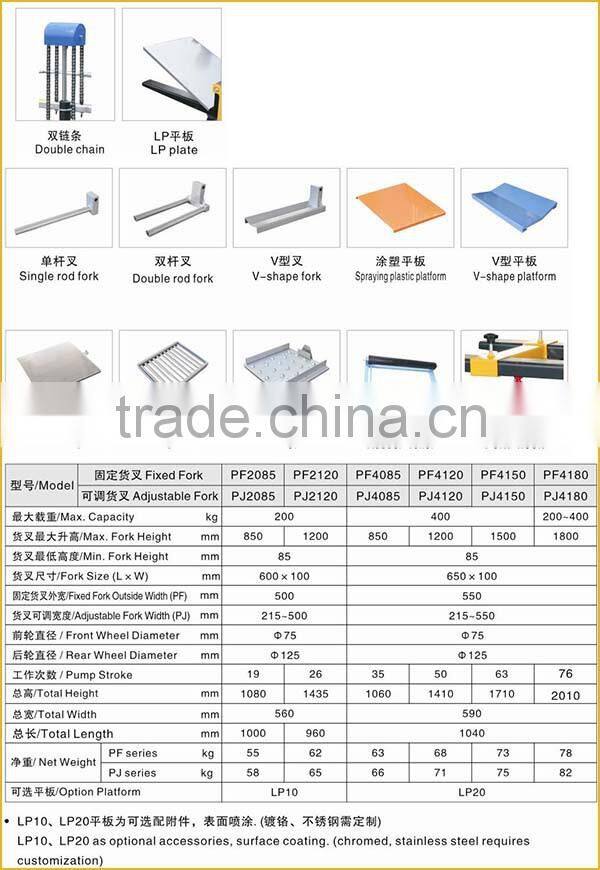

2) Specification Data
| Model (V-shape Platform) | PV2085 | PV2120 | PV4085 | PV4120 | PV4150 | PV4180 | |
| Capacity | (kg) | 200 | 400 | ||||
| Max.Reel Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 | 1800 |
| Min.Reel Height | (mm) | 85 | 85 | ||||
| Reel Size | / | customization | |||||
| Load Roller | (mm) | 75 | 75 | ||||
| Steering Wheel | (mm) | 125 | 125 | ||||
| Pump strokes to Max.Height | (mm) | 19 | 26 | 35 | 50 | 63 | 76 |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 | 1710 |
| Overall Width | (mm) | 560 | 590 | ||||
| Overall Length | (mm) | 1020 | 1100 | ||||
| Net Weight | (kg) | 58 | 65 | 75 | 81 | 85 | 85 |
3) Photos
4) workshop
5) terms and service:
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
