Sinolift-Single Mast Aerial Work Platform with Low Price
1) Features
- Suitable for single person to work upraised;
- High-strength aluminum alloy are used for the single lifting mast, the unit is light, easy and convenient to move;
- Compact design makes it easy in passing through narrow and lower passage on ordinary elevators;
- Special-designed guide rollers between each segment of mast ensure stable descending and ascending;
- Double protection with supporting bolts and evolvable stabilizers minimize the blind area of aerial work platform usage;
- Available accessories: mast stand, auxiliary for step;
- Power Supply: Single phase AC as standard;
- DC or both AC as option.
2) Specification Data
Model |
GTWY6-1000 |
GTWY8-1000 |
GTWY10-1000 |
||
Mast |
Single mast |
||||
Max. Platform Height |
mm |
6000 |
8000 |
10000 |
|
Working Height |
mm |
8000 |
10000 |
12000 |
|
Min. Platform Height |
mm |
580 |
|||
Ground Clearance |
mm |
60 |
|||
Lift Rated Capacity |
kg |
150 |
125 |
||
Platform Size |
630×650 |
||||
Outspread Size |
mm |
2050×1850 |
|||
Electrical Source |
AC |
v |
220-240 |
||
DC |
v |
24 |
|||
Aneroid Battery |
v/Ah |
2×12/75 |
|||
Charger |
v/A |
24/15 |
|||
Lifting Motor |
AC |
v/kw |
220/0.75-1.5 |
||
DC |
v/kw |
24/1.5-1.6 |
|||
Overall Length |
mm |
1430 |
|||
Overall Width |
mm |
840 |
|||
Overall Height |
mm |
1950 |
2050 |
||
Overall Net Weight |
AC |
kg |
380 |
420 |
450 |
DC |
kg |
420 |
450 |
500 |
|

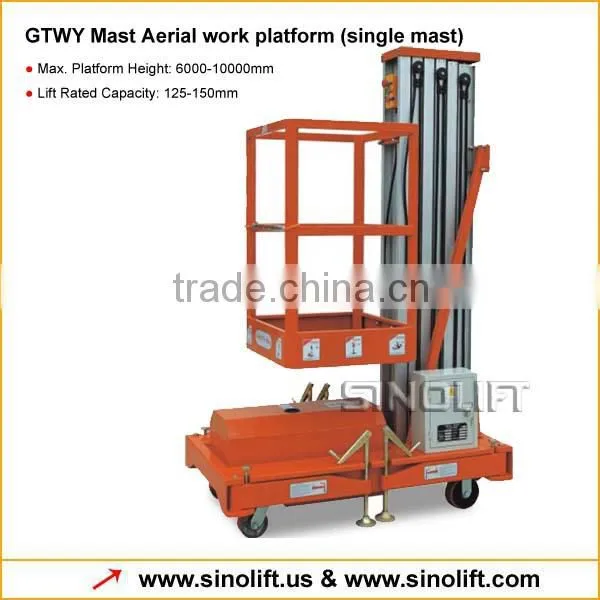

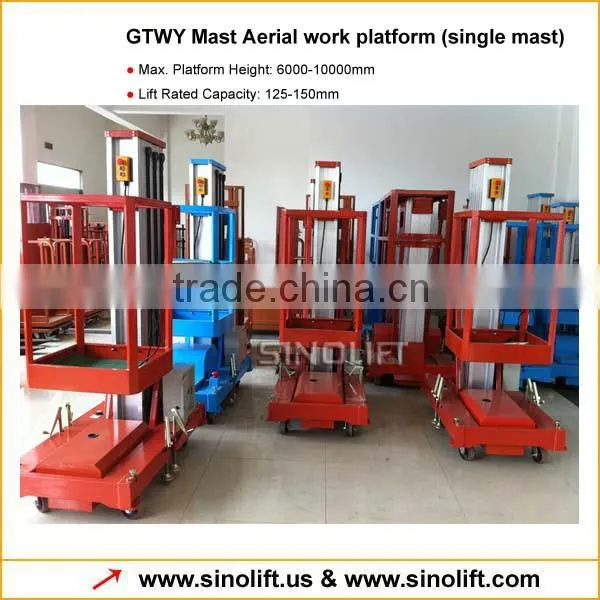

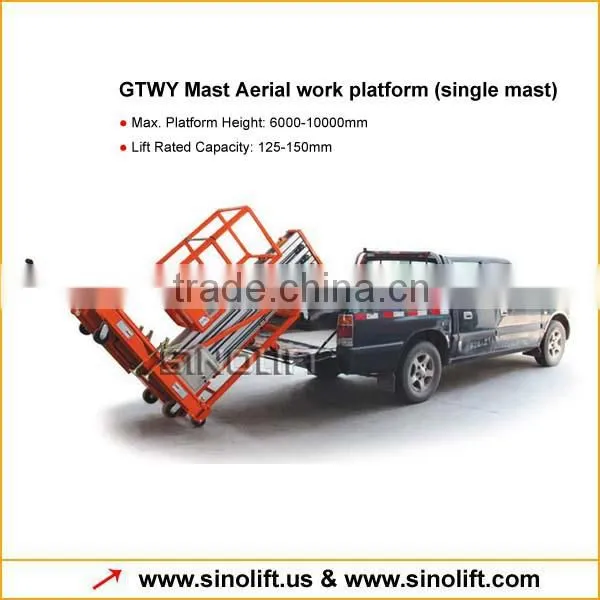

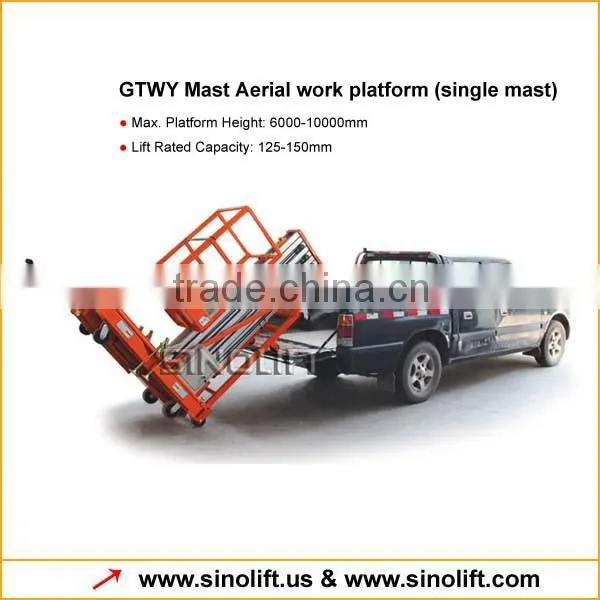

3) Photos

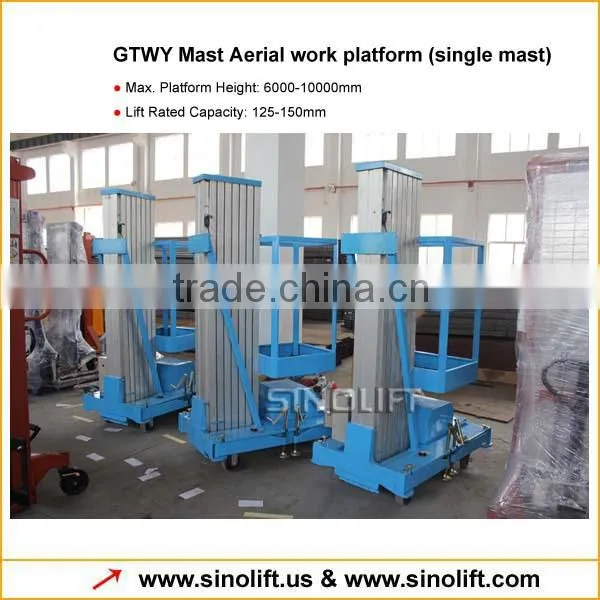

4) workshop
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
