Sinolift-Self propelled Order Picker with Good Quality
1) Features
- Be able to drive at maximum height of platform
- Maneuverable, extremely easy to use
- High safety and efficiency
- Imported top quality electric control system
- “C” section forks for greatest strength
- Supplied with battery and automatic charger
- Conforms to EN-280
2) Specification Data
Model |
ZDYT300-4 |
ZDYT300-4.5 |
|
Max. platform height |
H (mm) |
4000 |
4500 |
Max. overall height |
H1 (mm) |
6000 |
6500 |
Distance between pedestal and ground |
H2 (mm) |
50 |
50 |
Platform loading capacity |
(kg) |
300 |
300 |
Working platform size |
L×N (mm) |
900x640 |
900x640 |
Max. traveling speed (platform lowered) |
Km/h) |
4 |
4 |
Max. traveling speed(platform lifted) |
(km/h) |
1.1 |
1.1 |
Max. climbing ability |
(%) |
30 |
30 |
Drive wheel size |
(mm) |
230x80 |
230x80 |
Castor size |
(in) |
6" |
6" |
Traveling motor |
(v/kw) |
2x24/0.4 |
2x24/0.4 |
Lifting motor |
(v/kw) |
24/2.0 |
24/2.0 |
Battery (service free) |
(v/Ah) |
2x12/120 |
2x12/120 |
Battery charger |
(v/A) |
24/12 |
24/12 |
Overall length A |
(mm) |
1550 |
1550 |
Overall width B |
(mm) |
700 |
700 |
Overall height C |
(mm) |
1910 |
2070 |
Overall number |
(kg) |
664 |
675 |

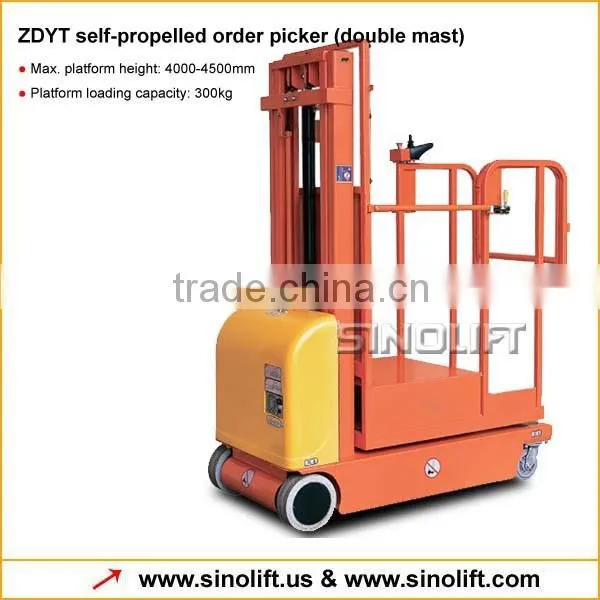

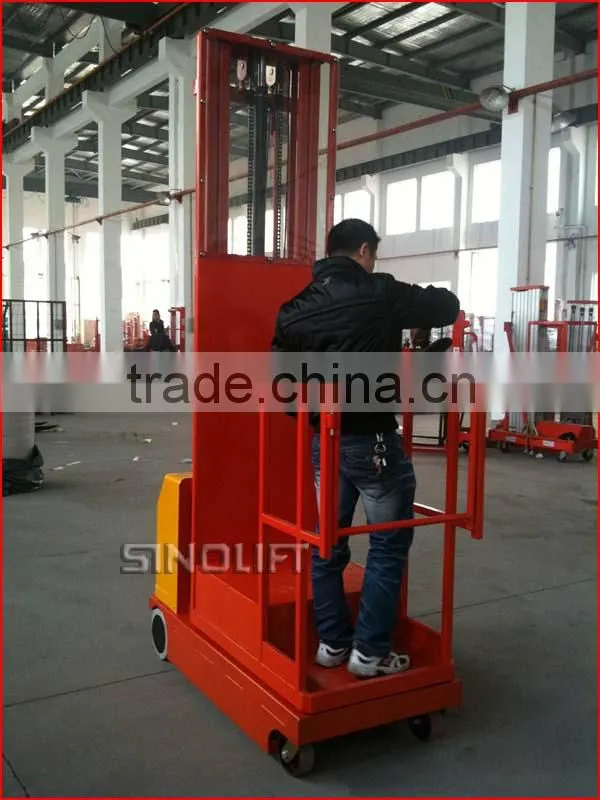

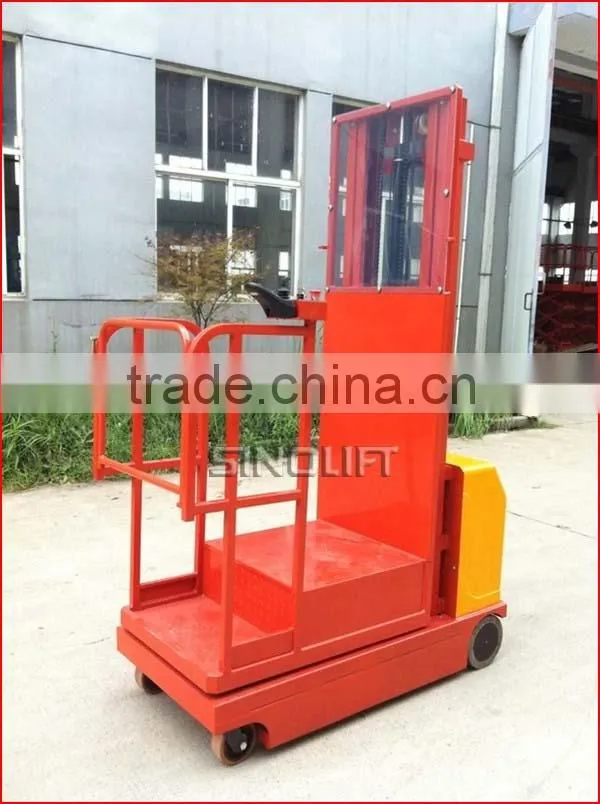

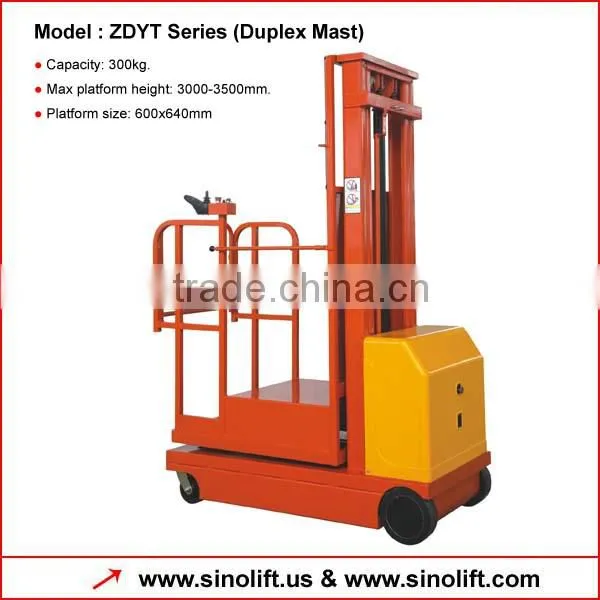

3) Photos
4) workshop
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
