Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > DKL Mechanical Dock Leveler

DKL Mechanical Dock Leveler

Name: DKL Mechanical Dock Leveler
Brand: Sinolift
SKU: 132435747
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Sinolift

Model Number:

DKL Series

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Sinolift

Model Number DKL Series

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Dock Leveler
1.Capacity: 12000-16000kg
2. Lip Board Size: 450mm
3. Travel: up-300mm,down-400mm

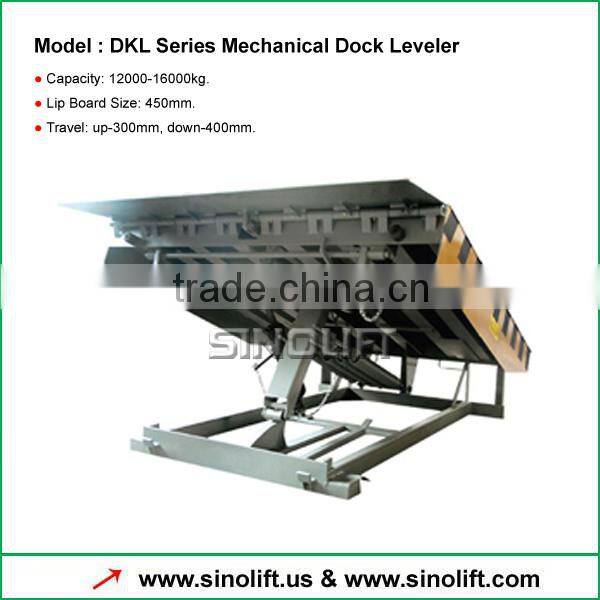

DKL Series Mechanical Dock Leveler

1) Features

The mechanical dock leveler lifts the mainboard by using tension principle of spring and is applied to places without power or special blast-proof enterprises. Can be used for all loading bays.

Standard Features:

l full mechanical, Single-handed Pull-Chain Operation.

l Reinforced gusseted lip.

l Heavy duty (6-8 box beams) deck construction.

l Non skid thread plate deck and lip.

l Full width hinge tube and one-piece lip hinges pin.

l Positive Hold-down Device, allows up and down float when in service.

l Heavy-duty adjustable lift spring, direct extension spring.

Optional Features:

l Large Capacities available.

l Custom sizes available.

l 16”, 18”,20” Lip length.

l Bumpers

l Full-range Toe quard.

2) Specification Data

Model		DKL-12ME-1820	DKL-12ME-2020	DKL-12ME-2025
		DKL-14ME-1820	DKL-14ME-2020	DKL-14ME-2025
		DKL-16ME-1820	DKL-16ME-2020	DKL-16ME-2025
Capacity		12000kg	12000kg	12000kg
		14000kg	14000kg	14000kg
		16000kg	16000kg	16000kg
Platform Size	B*A	1800*2000mm	2000*2000mm	2000*2500mm
Lip Board Size	-	450mm	450mm	450mm
Travel	Up	300mm	300mm	300mm
Travel	Down	300mm	300mm	300mm
Pit Dimension	L	2150mm	2150mm	2650mm
	W+1/2"	1860mm	2060mm	2060mm
	H	485mm,600mm	485mm,600mm	485mm,600mm

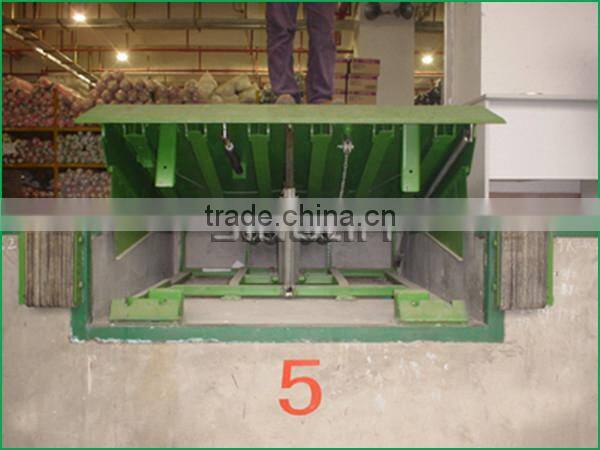

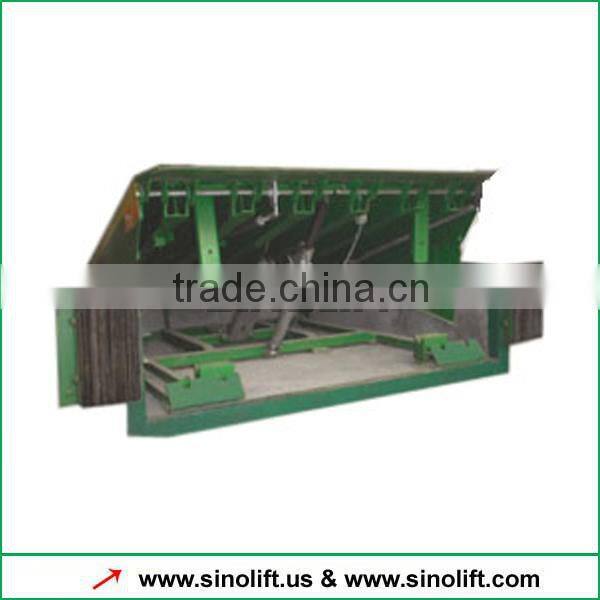

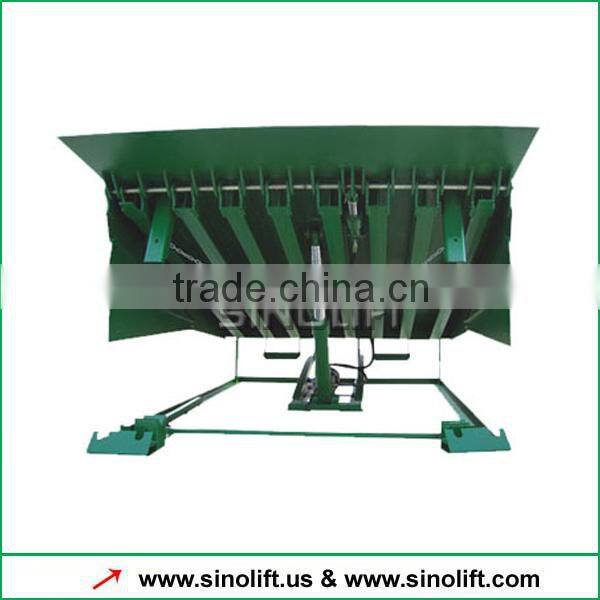

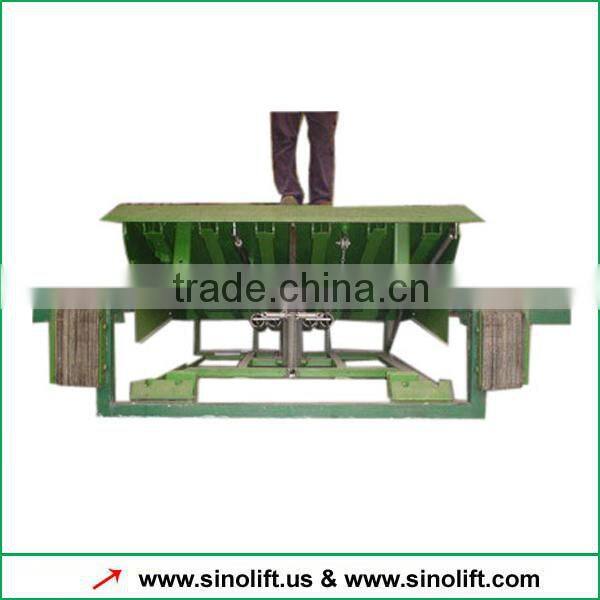

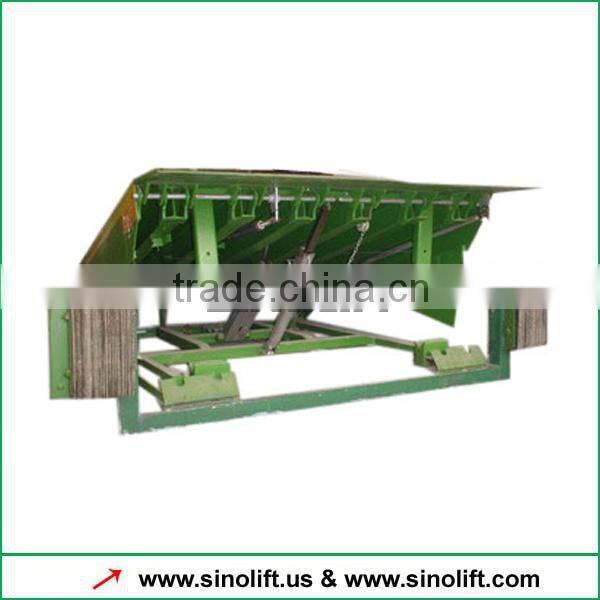

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
