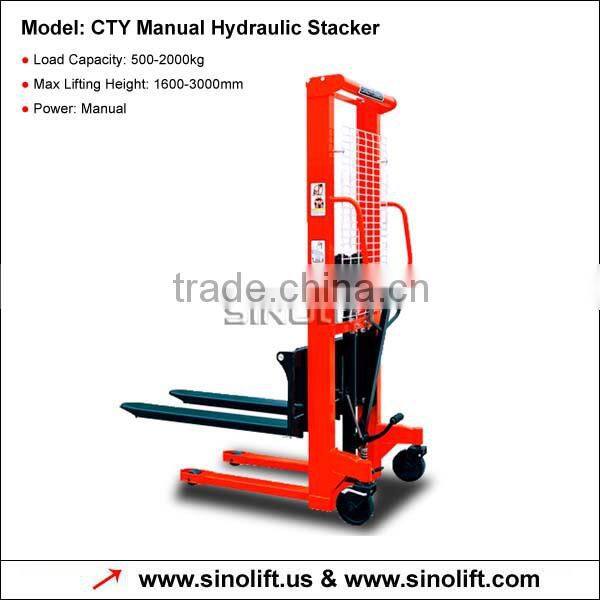

Hot! Sinolift CTY Single or Duplex Mast Manual Hydraulic Stacker
1)Features Hydraulic Stacker
- Robust Steel profile construction.
- An economical lift to handle tasks from transporting dies and moulds skids and pallets.
- Sturdy and compact enough to fit through standard doors and to operate in congested areas.
- Precision engineered for smooth performance and exceptional durability.
- Lifting function operated by foot and hand controls.
2)Specification Date Hydraulic Stacker
Model |
CTY500-16 |
CTY1000-16 |
CTY1500-16 |
CTY2000-16 |
CTY1000-25 |
CTY1000-30 |
|
Mast |
/ |
Single mast |
Double mast |
||||
Rated Capacity |
kg |
500 |
1000 |
1500 |
2000 |
1000 |
1000 |
Load Center |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
Lifting Height |
mm |
85-1600 |
90-1600 |
90-1600 |
90-1500 |
95-2500 |
95-3000 |
Fork Length |
mm |
800 |
900 |
900 |
900 |
900 |
900 |
Fork Width |
mm |
220-750 |
220-950 |
220-950 |
220-950 |
220-900 |
220-900 |
Min. Turning Radius |
mm |
1110 |
1250 |
1250 |
1250 |
1250 |
1250 |
Overall Length |
mm |
1280 |
1380 |
1380 |
1380 |
1340 |
1340 |
Overall Width |
mm |
800 |
1000 |
1000 |
1000 |
950 |
950 |
Overall Height |
mm |
1980 |
2100 |
2100 |
2100 |
1810 |
2060 |
Net Weight |
kg |
155 |
250 |
260 |
285 |
355 |
370 |

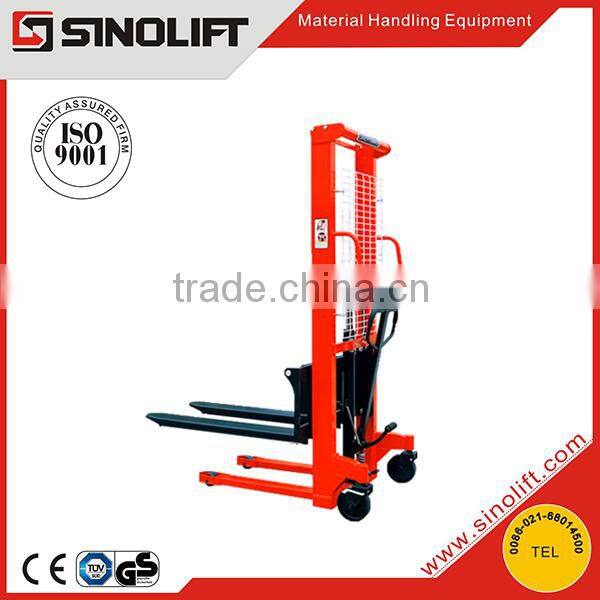

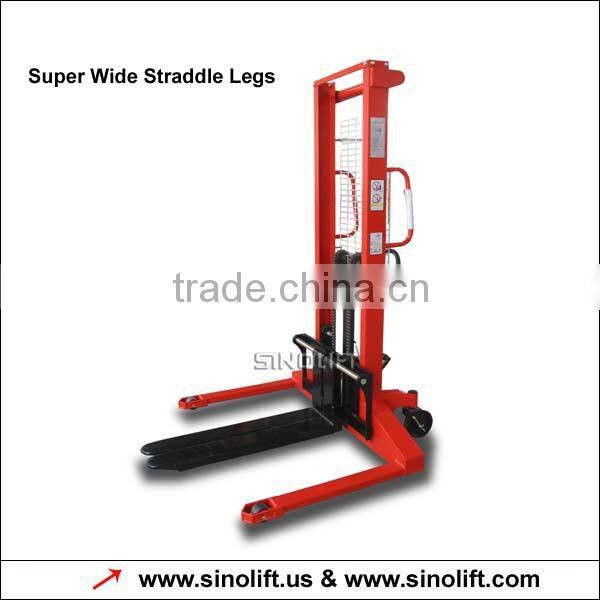

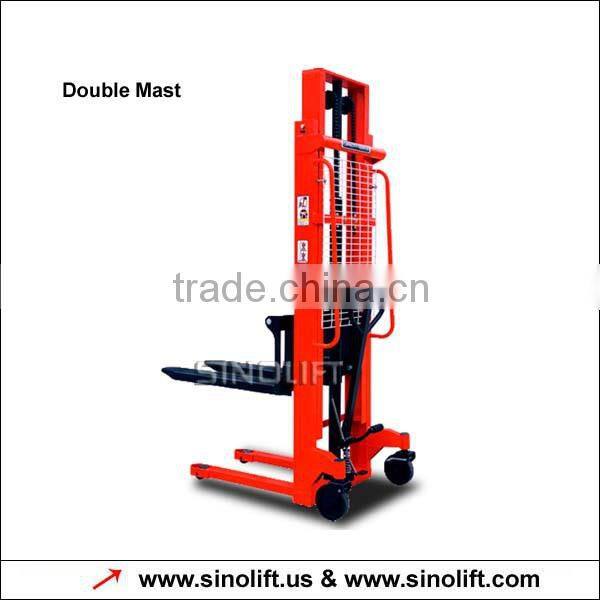

3)Photos Hydraulic Stacker

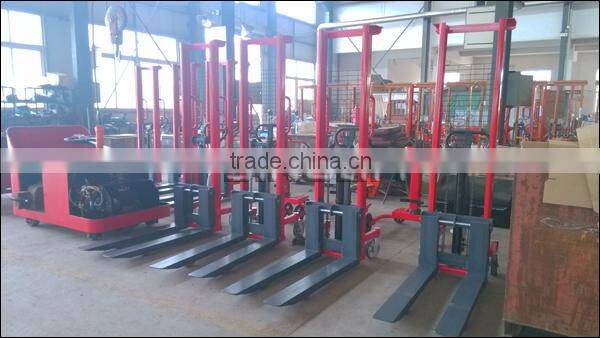

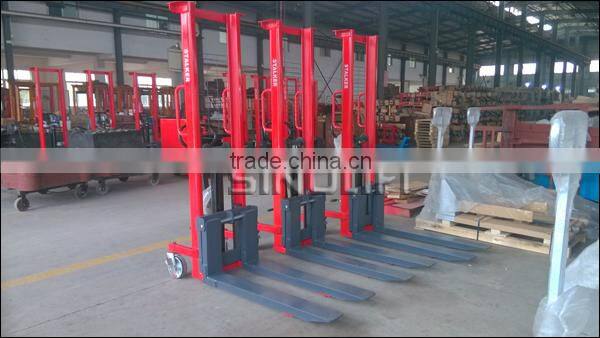

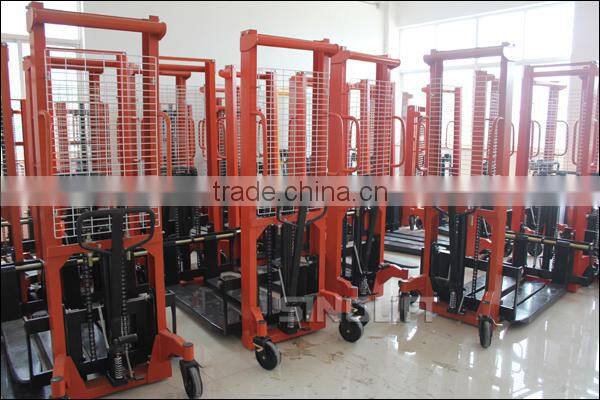

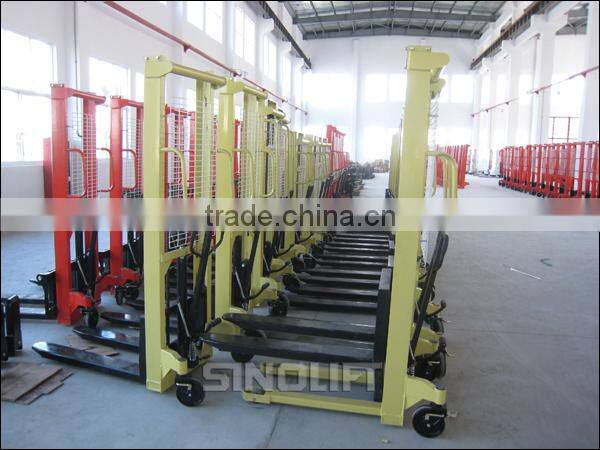

4)Workshop Hydraulic Stacker
5)Certificate Hydraulic Stacker
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service Hydraulic Stacker
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program Hydraulic Stacker
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
