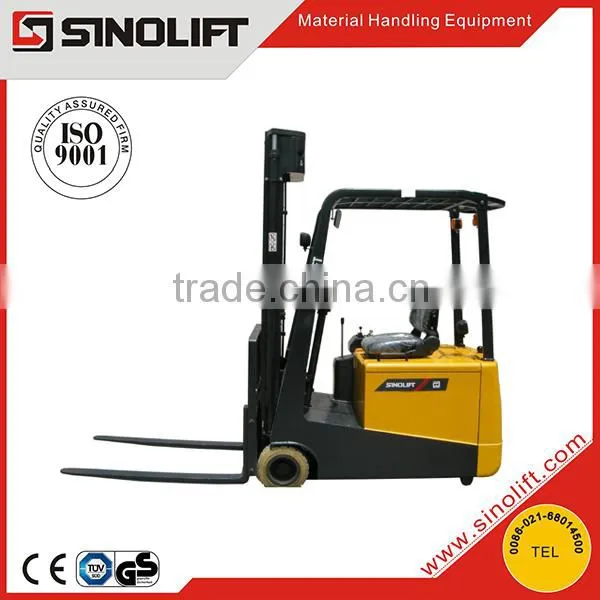

Hot - CPD-F Series Three Wheels Electric Forklift
1) Features
The ultimate in DC control is the CURTIS high frequency MOSFET microprocessor ,coupled with separately excited motors(SEM)togive the truck smooth can be imposed and more than 30 performance characteristics can be adjusted.
An excellent system for smaller trucks with a medium workload.
Tight small and flexible structure, Compact dimensions combined with super maneuverability.
2) Specification Data
| Model | CPD-0.5F | CPD-0.75F | CPD-1.0F | CPD-1.5F | ||
| Capacity Q | kg | 500 | 750 | 1000 | 1500 | |
| Load Center © | mm | 400(500) | 400(500) | 400(500) | 500 | |
| Lifting Height h3 | mm | 3200 | 3200 | 3200 | 3000 | |
| Free Lifting Height h2 | mm | 1600 | 1600 | 1600 | 1500 | |
| Fork Length | mm | 800(1000) | 800(1000) | 800(1000) | 1000(1150) | |
| Fork Sideswith | mm | 100 | 100 | 100 | 100 | |
| Title of mast α/β | < | 2° /5° | 2° /5° | 2° /5° | 2° /5° | |
| Height of Mast Lowered h1 | mm | 2080 | 2080 | 2080 | 2180 | |
| Height of Mast Extended h4 | mm | 3680 | 3680 | 3680 | 3780 | |
| Height of Overhead Guard | mm | 1900 | 1900 | 1900 | 1980 | |
| Height of Seat from Ground | mm | 850 | 850 | 850 | 900 | |
| Length of the face of fork | mm | 1260 | 1260 | 1350 | 1738 | |
| Overallwidth | mm | 800 | 800 | 800 | 1018 | |
| Thread (Front wheel) | mm | 860 | 860 | 950 | 853 | |
| Thread (Rear wheel) | mm | 940 | 940 | 1030 | 1188 | |
| Wheelbase | mm | 660 | 660 | 660 | 740 | |
| Ground Clearance | mm | 90 | 90 | 90 | 90 | |
| Turing Radius | mm | 1150 | 1150 | 1240 | 1500 | |
| Drive speed(load/unload) | km/h | 6.5/7.8 | 6.3/7.3 | 6.0/7.0 | 6.0/7.0 | |
| Speed Control | MOFSET | |||||
| Gradeability | % | 8 | 8 | 8 | 8 | |
| Driving brake | Hydraulic Brake System | |||||
| Parking brake | Hand Brake | |||||
| Battery | 24v | D-210 | D-280 | D-320 | D-400 | |
| Weight of battery | kg | 240 | 320 | 390 | 420 | |
| Weight of truck | kg | 1250 | 1380 | 1550 | 2650 | |
| Driving Motor | kw | 3 | ||||
| lifting motor | kw | 5 | ||||
| Wheel (front/rear) | Solid Rubber | |||||

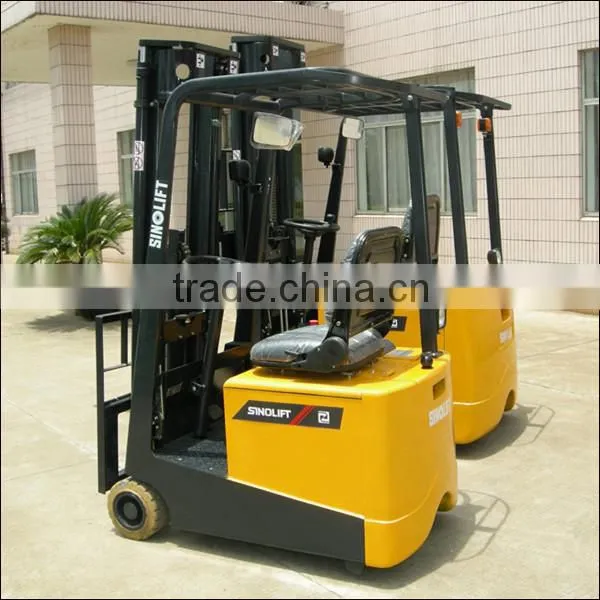

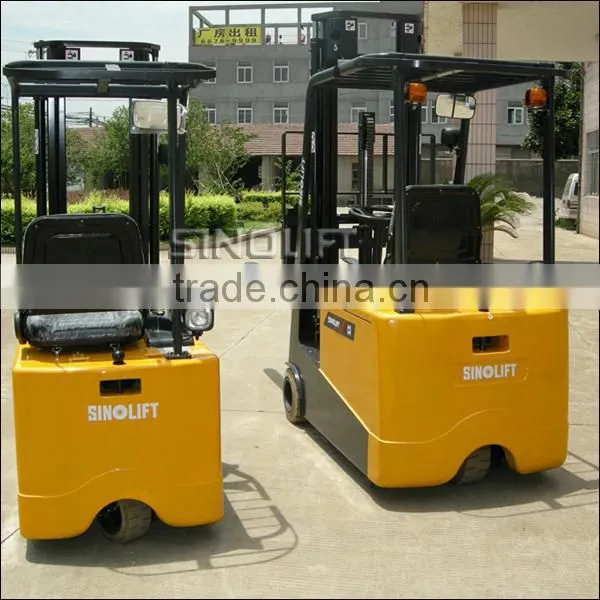

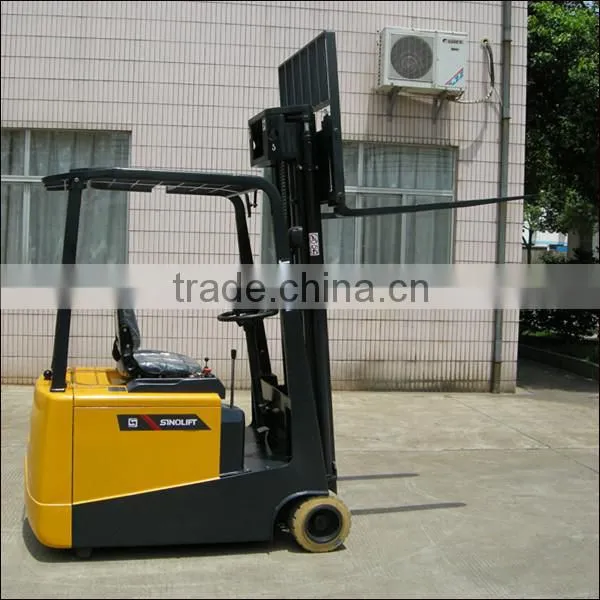

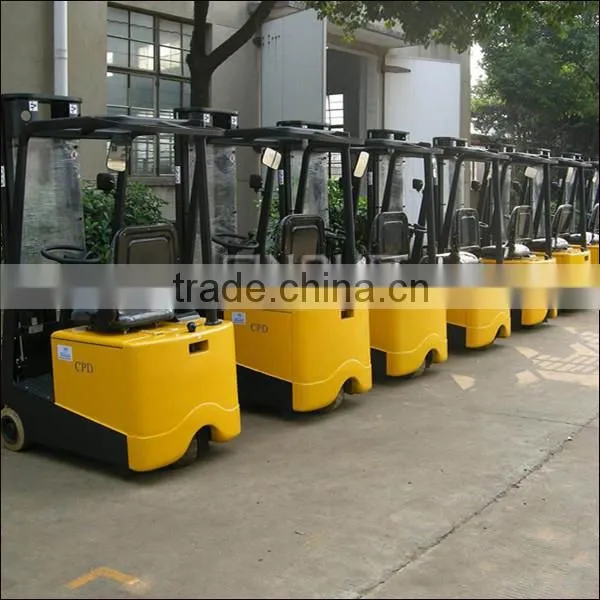

3) Photos

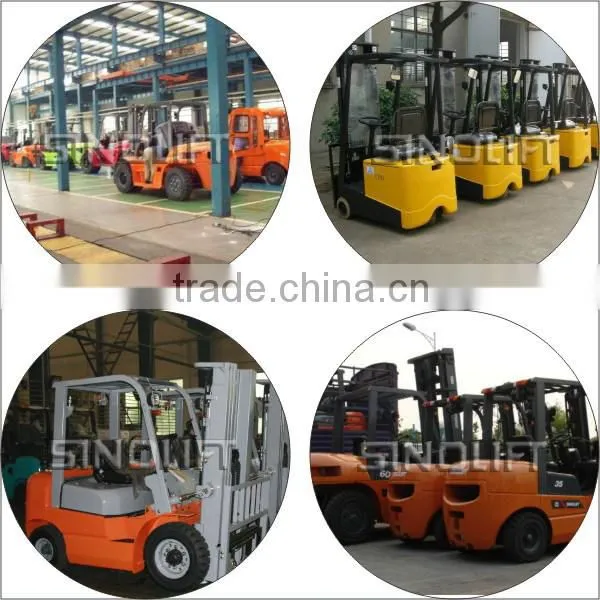

4)Workshop
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
7) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
