Condition New
Place of Origin Shanghai, China
Brand Name SINOLIFT
Model Number Hot - Four Wheels 1-3T Electric Forklift with CE
Type Other, Electric Forklift
Power Souce DC Motor
Rated Loading Capacity 1000~3000kg
Max. Lifting Height 4273mm
Min. Lifting Height 2060mm
Fork Length 920~1070mm
Fork Width 120~125mm
Overall Dimensions 2481*1265*2060mm
Certification CE,TUV,GS
After-sales Service Provided Engineers available to service machinery overseas

Hot - Four Wheels 1-3T Electric Forklift with CE



1) Features

 - GE traveling electronic controller.

 - Concept of using ergonomic seat design, more comfortable and reliable.

 - Suspended type brake device

 - Multi-valve control system and energy-efficient hydraulic system.



2) Specification Data

Manufacturer   SINOLIFT DC 1.0T-3.0T Electric Forklift
Model   CPD10 CPD15 CPD20 CPD25 CPD30
Power type   Battery Battery Battery Battery Battery
Rated capacity kg 1000 1500 2000 2500 3000
Load center mm 500 500 500 500 500
Lift height                                                   H mm 3000 3000 3000 3000 3000
Free lift                                                      H4 mm 162 162 140 140 145
Fork size                                                L×W×T mm 920×120×40 920×120×40 1070×122×40 1070×122×45 1070×125×45
Fork outside spread (Min./Max.) mm 200/968 200/968 240/1020 240/1020 260/1100
Mast tilt angle (forward/backward)             α / β deg 6/12 6/12 6/12 6/12 6/10
Front ovehang                                             X mm 429 429 479 484 454
Overall dimensions Length to face of fork                 L1 mm 2056 2056 2349 2381 2481
Overall width                             B1 mm 1090 1090 1152 1152 1265
Mast lowered height                   H1 mm 1995 1995 2060 2060 2040
Mast extended height                 H3 mm 4042 4042 4040 4040 4273
Overhead guard height               H2 mm 2162 2162 2159 2159 2125
Turning radius                                              R mm 1820 1820 2050 2100 2230
Travel speed (no load / full load) km/h 13.5/11.5 13/11 12.5/11 12.5/10.5 13/12
Lifting speed (no load / full load) mm/sec 400/300 390/285 400/260 390/250 380/250
Max. pull force (full load) KN 6 6.5 10 10 10
Services weight kg 2900 3120 4160 4360 4850
Wheelbase   mm 1250 1250 1500 1500 1630
Ground clearance (no load / full load) Mast       M mm 110/95 110/95 120/100 120/100 105/85
Frame     F mm 105/95 105/95 120/100 120/100 140/120
Battery  Model   D-400(D-440/D-480 option) D-630 (D-700 option) D-500(600)
Voltage v/Ah 48/400 (440/480) 48/600(700) 80/500(600)
Battery Weight kg 740/(760/820) 1100(1180) 1390(1430)
Controller L American GE DC separate excitation controller



3)Photos

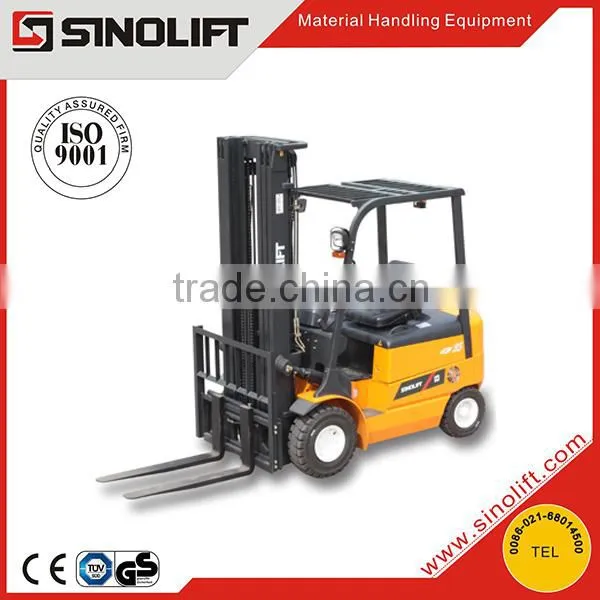

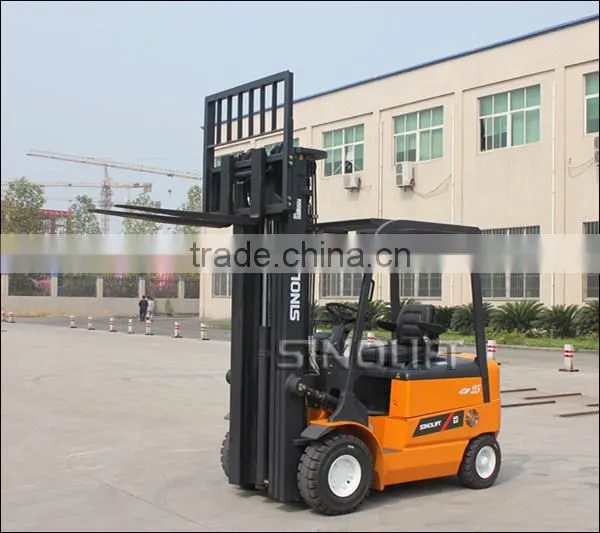

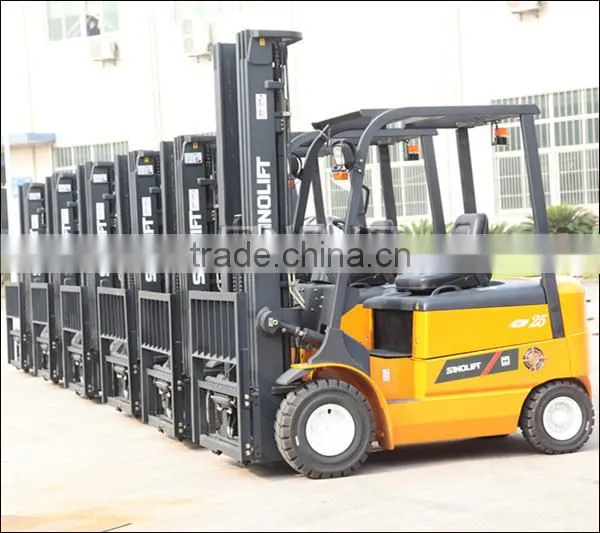

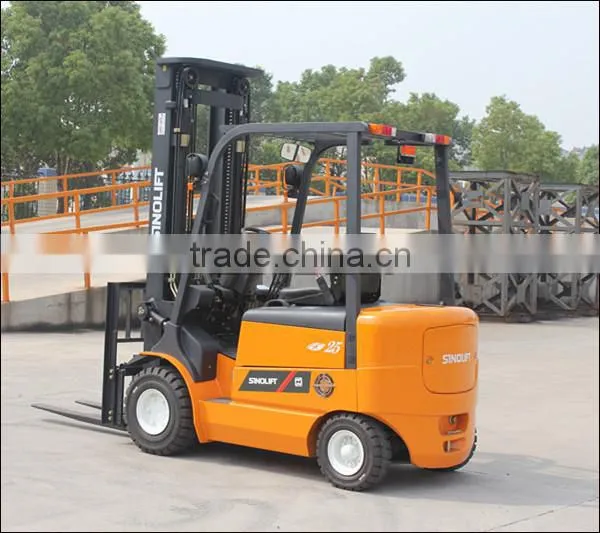

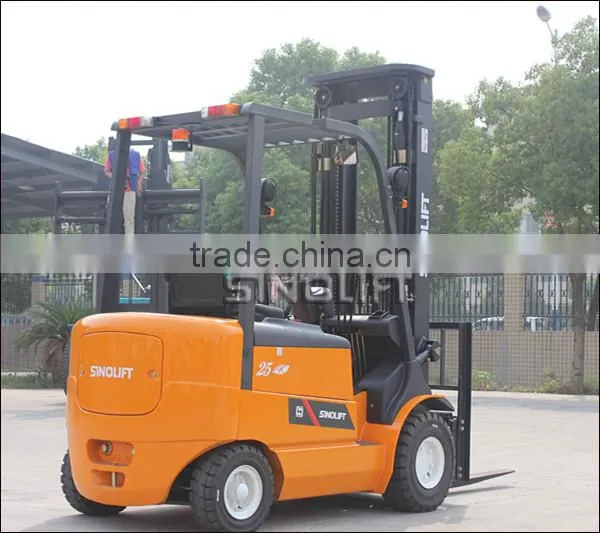

Hot - Four Wheels 1-3T Electric Forklift with CE

Hot - Four Wheels 1-3T Electric Forklift with CEHot - Four Wheels 1-3T Electric Forklift with CEHot - Four Wheels 1-3T Electric Forklift with CEHot - Four Wheels 1-3T Electric Forklift with CE

Hot - Four Wheels 1-3T Electric Forklift with CE



4)Workshop

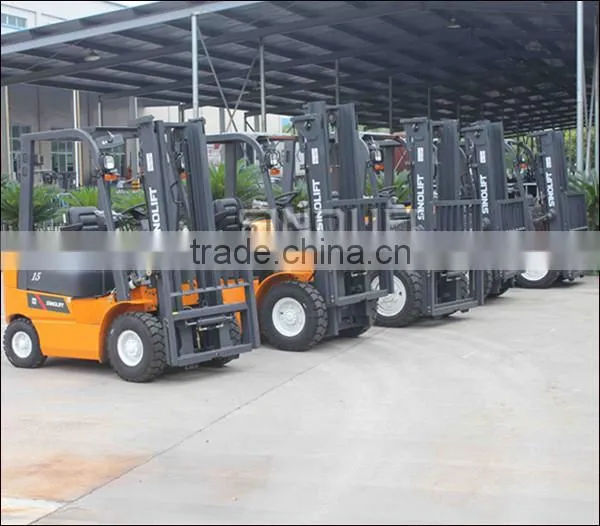

Hot - Four Wheels 1-3T Electric Forklift with CE



5) terms and service:

1.Lead time

3-4 weeks

2.Packing

Standard export fumigated wooden pallet, foam rubbers

3.Payment term

T/T payment in advance; L/C at sight.

4.Lead term

FOB Shanghai or CFR/CIF

5.Warranty period

12 months

6.Shipping method

by sea or air; by express.



6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.



7) Why choose us?

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.



2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.



3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.



4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.



5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.



6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.



7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.



8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.



9- We don’t ask more though we do much better! We offer reasonable price level!



10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
