Indoor Full Color Led Digital Signage Displays Billboard Sign P7.62 3in1/led Street Display Signs

Indoor Full Color Led Digital Signage Displays Billboard Sign P7.62 3in1/led Street Display Signs thumbnail-1
Indoor Full Color Led Digital Signage Displays Billboard Sign P7.62 3in1/led Street Display Signs photo-1
US$ 200 - 500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Asram
Model Number:
P10 outdoor led screen
Contact Supplier Request Quote Chat Now
Dongguan Asram Optoelectronic Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Asram
Model Number P10 outdoor led screen
Usage Other, Outdoor, semi-outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, PH6, PH7.62, PH10, PH12, PH16, PH20, PH25
Screen Dimension customized

Hot sale product:







                                Specification of Outdoor LED display
Classification Ph10 Ph12 Ph14 Ph16 Ph18 Ph20 Ph22 Ph25 Ph31.25
Pixel pitch(mm) 10(physical) 12(physical) 14(physical) 16(physical) 18(physical) 20(physical) 22(physical) 25(physical) 31.25
6(virtual) 8(virtual) 10(virtual) 12.5(virtual)
Pixel configuration 1R1G1B1W 1R1G1B1W 1R1G1B1W 1R1G1B1W 1R1G1B1W 1R1G1B1W 1R1G1B1W 1R1G1B1W 4R2G2B
LED package DIP346 DIP346 DIP546 DIP546 DIP546 DIP546 DIP546 DIP546 DIP546
Pixel denstiy/ sqm 10000dots 6844dots 5102dots 3906dots 3086 dots 2500dots 2066dots 1600dots 1024dots
27777 dots 15625 dots 10000dots 6400dots
Module size(mm*mm) 320*160(h) 192*192(h) 224*112(h) 256*128(h) 288*144(h) 320*160(h) 352*176(h) 200*200(h) 125*250(h)
Module pixel( dots) 32*16 16*16 16*8 16*8 16*8 16*8 16*8 8*8 4*8
Standard size of cabinet(mm*mm) 1280*960 1152*768 896*896 1024*768 1152*864 1280*960 1056*1056 1000*1000 1000*1000
Cabinet pixel( dots) 128*96 96*64 64*64 64*48 64*48 64*48 48*48 40*40 32*32
Best view angle 110° 110° 110° 110° 110° 110° 110° 110° 110°
Maximum power comsuption(W/sqm) 500 600 600 700 750 700 700 600 600
Brightness cd/sqm ≥8 000 ≥8000 ≥8000 ≥ 7500 ≥ 6500 ≥ 60 00 ≥ 5500 ≥5000 ≥ 5500
Driving method 1/4 constant driving 1/2 contant driving Constant static
Display color 256*256*256
Refresh frequency 300HZ
Frame frequency 60HZ
Protection Level Front: IP 65; back: IP43
Working Voltage AC220/110±10%
Working environment temperature -40º degree - +50º degree
Life span >100000hours





Optional





NO

Pitch

Pitch Pixel

dot/sqm

model

View distance

1

F3

4

62500

Indoor monochrome/ dual /full

2-50

2

F3.75

4.75

44321

Indoor monochrome/ dual /full

3-50

3

F5

7.62

17222

Indoor monochrome/ dual /full

5-50

4

P6

6

27777

Semi Indoor monochrome/ dual /full

6-50

5

P7.62

7.62

17222

Semi Indoor monochrome/ dual /full /full ko

8-50

6

P10

10

10000

Both indoor and outdoor/ monochrome and dual /full

10-60

7

P12

12

6944

Both indoor and outdoor/ monochrome and dual /full

12-70

8

P14

14

5102

Both indoor and outdoor/ monochrome and dual /full

14-80

9

P16

16

3906

Both indoor and outdoor/ monochrome and dual /full

16-120

10

P18

18

3086

Both indoor and outdoor/ monochrome and dual /full

18-140

11

P20

20

2500

Both indoor and outdoor/ monochrome and dual /full

20-160

12

P25

25

1600

Both indoor and outdoor/ monochrome and dual /full

25-200

13

P31.25

31.25

1024

Both indoor and outdoor/ monochrome and dual /full

 30-300









PH10mm LED Module





indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs

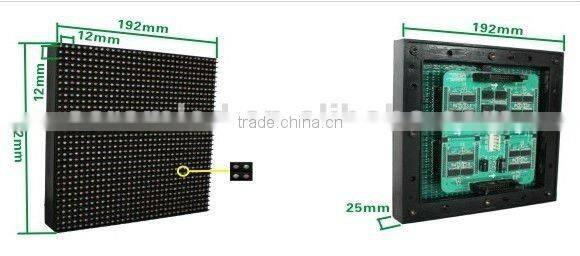

PH12mm LED Module





indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs

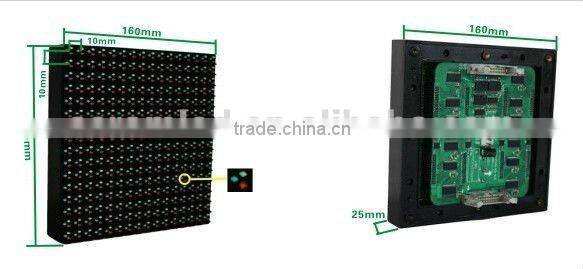

PH16mm LED Module











indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs









indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs







indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs



 indoor full color led digital signage displays billboard sign P7.62 3in1/led street display signsindoor full color led digital signage displays billboard sign P7.62 3in1/led street display signs





Indoor SMD model:  PH4, PH5, PH6, PH7.62, PH8, PH10, PH12, PH16, PH20, PH25, PH31.25, PH40.....



Outdoor DIP model: PH10, PH12, PH14, PH16, PH20, PH22, PH25, PH31.25, PH40, PH50, PH70......



Outdoor SMD model: PH6, PH8, PH10, PH12, PH14, PH16, PH18, PH20, PH25, PH31.25.....

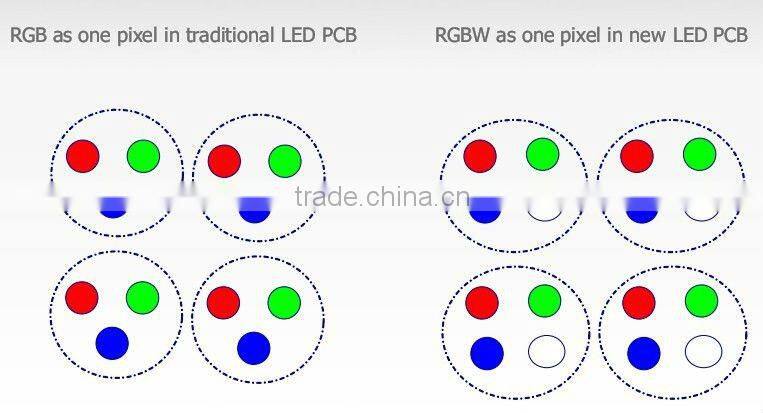

1R1G1B1W Energy saving 50%



CE  ROHS  ISO UL certification



OEM  ODM is acceptable
