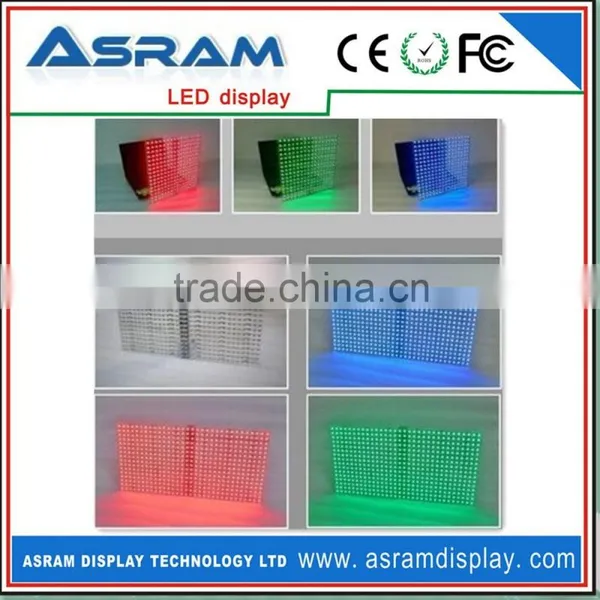

China supply front access HD transparent glass led display
Patented glass advertising display especially applied in glass wall building and irregular lighting projects, which broke limitations of traditional LED display.
Main Characteristics:
1. Good visualization:
Glass based design allows the light to pass through the glass without any influence to the building structure around..
2. Ultra-thin, and ultra-light.
With only 8mm width and 12kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.
3. Frameless structure
Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.
4. Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5. Saving lighting costs of the whole building.
Besides good advertising effect, Asram LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6. Wide use range.
Wherever the glass wall is, Asram glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
MODEL NAME P16 Glass LED Display | |||
| Pixel pitch | 16mm | Processing depth | 16bit |
| Resolution(pixel/sq.m) | 3906 | Video frame rate | 60 frame/Sec. |
| LED lamp(SMD) | 3535/4540 | Display refresh rate | 800 Hz |
| Module size(mm) | 512 x 256 | Thickness | 10mm |
| Module resolution | 32 x 16 | Ingress protection | IP20 |
| Brightness (CD/ sq.m ) | 7000 | Controller | LINSN |
| See-through area | ≥75% | Operating Temperature range | —10°C~+45°C |
| Maximum power consumption (W/ sq.m ) | 950 | Operating Humidity range | 10%—95%RH |
| Average power consumption(W/ sq.m ) | 330 | Screen Weight | 13--15kg/ sq.m |
| Viewing angle | Horizontal:160°; Vertical:140° | Installation | See the installation manual |
