Help CenterAluminum API Bottom Loading Coupler
Related Products
Specifications
Aluminum API bottom loading CouplerManagement Certification: ISO 9001:2000
Fit API RP1004

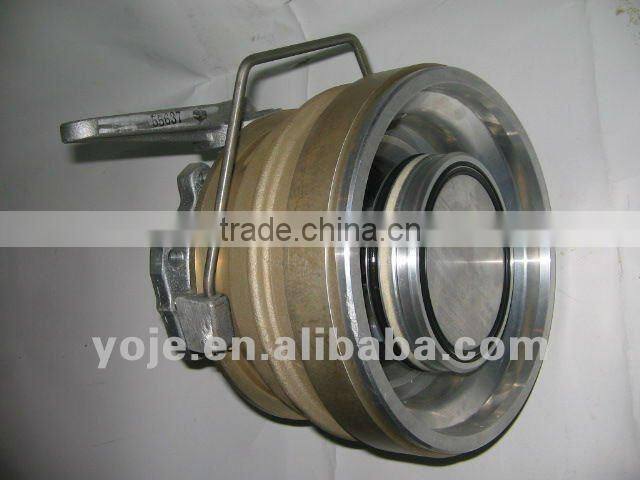

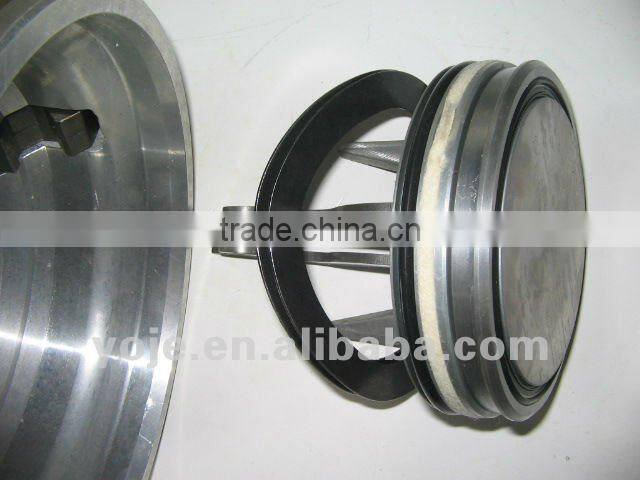

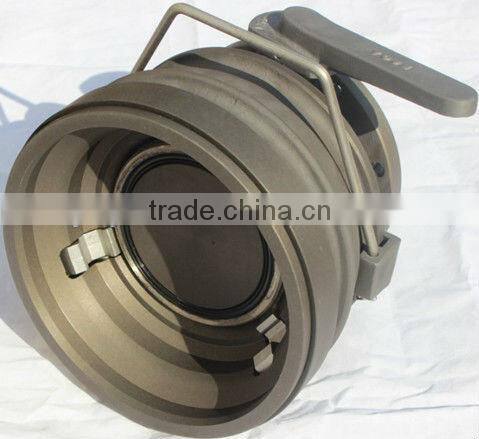

Aluminum API bottom loading Coupler
Be connected with all kinds of coupler that fit API RP1004,it can distinctly reduce the leakage when discharging oil.
It has high efficiency seal,outstanding durable function and easy,convenient design that fit most kinds of oil truck
It is a three jaw strength and two closed safety interlock, security design within the high voltage connection lip seal configuration used for long-term performance without leakage
Material:
Body :AL alloy
Shaft :SS
Seal:FPM
Lift valve :AL alloy
Handle :AL alloy
Feature :
1) light casting AL,hard treatment
2) Easy and reliable seal design can use efficient double seal gasket
3) Fit API RP1004
4) Only need single handle to operate
Parameter :
SIZE |
4" DN100 |
Working pressure |
0.6MPA |
Test Pressure |
0.24MPA |
Operate way |
Half automatic |
Temperature |
-20 to 70 °C |
Media |
oil |
