High Resolution Led Matrix Display Module /Smd 3528 Led Module

Name: High Resolution Led Matrix Display Module /Smd 3528 Led Module
Brand: Asram
SKU: 132422773

US$ 5 - 35 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Asram

Model Number:

ASRAM-SMD-P5--106

Dongguan Asram Optoelectronic Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shen zhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Asram

Model Number ASRAM-SMD-P5--106

Usage Other, Indoor, led sign ,show message

Tube Chip Color Full Color

Display Function Video

Pixels Other, 5mm

Screen Dimension Customized Size

Detail Description of led display:

Model No.:ASRAM-SMD-DIP-P5

1. Output power: 250Watt

2. Relevant certificates: CE, RoHS,CCC
3. Input Voltage: AC220V/110V±15%
4. Color temperature: 6500k
5. Brightness: 2000cd/m2


Numbers	Technical indexes	Specification
1	Pixel pitch	5mm

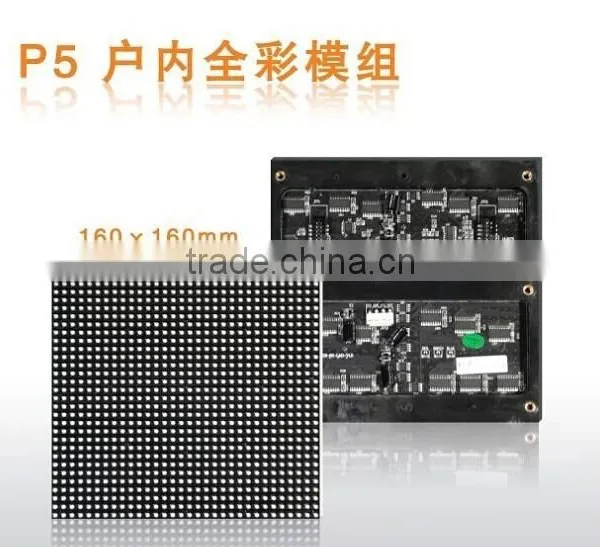

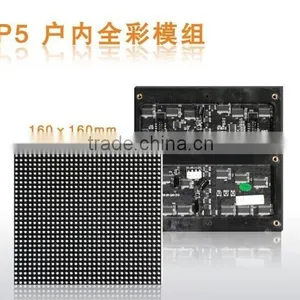

2	Module size	160mm×160mm
3	Module resolution	32×32=1024
4	Module density	40000dots/sqm
5	Pixel configuration	R OR G OR B or Y
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	16777216
10	Best viewing distance	more than 5 m
11	Horizontal viewing angle	±150°
12	Vertical viewing angle	±120°
13	Maximum power consumption	750W/m²
14	Brightness	≥1500cd/m2
15	Gray scale	16bits of per color
16	Color temperature	6500K
17	Control method	Synchronization or Asynchronization
18	Driving method	1/16 scanning
19	Frame frequency	480Hz
20	Refresh frequency	≥1200 Hz
21	Working voltage	AC220V/110V±10%
22	IP grade	IP31
23	Working temperature	-20°C~80°C
24	MTBF	More than 10,000 hours
25	Life span	More than 100,000hours
