Outdoor Running Direction Electronic Traffic Road Signs Led Message Display Board

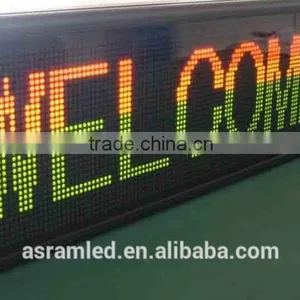

Outdoor Running Direction Electronic Traffic Road Signs Led Message Display Board thumbnail-1

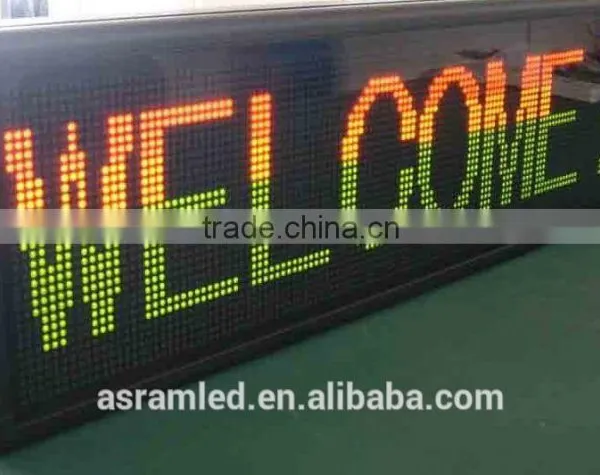

Outdoor Running Direction Electronic Traffic Road Signs Led Message Display Board photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASRAM
Model Number:
ASR-DIP-OF-P10-4843
Contact Supplier Request Quote Chat Now
Dongguan Asram Optoelectronic Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASRAM
Model Number ASR-DIP-OF-P10-4843
Usage Other, Outdoor, advertising
Tube Chip Color Other, red green amber blue
Display Function Video
Pixels Other, P10
Screen Dimension any
Outdoor running direction electronic traffic road signs led message display board
Led display outdoor Specification:

Display and control feature  Structure feature
Specification Parameter Specification Parameter
Pixel Pitch 16 mm Module size 320x160mm
Pixel composing 2R1G1B Display resolution 16 *8 pixel
Wavelength ® 620-630nm Standard cabinet size 1280 mm*960 mm
Wavelength (G) 520-535nm Weight per sqm 65 Kg/sqm
Wavelength (B) 465-475nm Protection classification IP65
Wave Angle (H) 110°(H)/ 60°(V) Install mode Wallmount, hung and stand structure
LED package DIP546 Cabinet Material Iron/Aluminum
Density per sqm 2500 pixel Working power
Display color 256*256*256 Specification Parameter
Whiteness brightness ≥7500 Working voltage AC 220v/380v±10% 47~64Hz
Brightness level 128 grade Max power/sqm 750W/sqm
Changing frame frequency 60 Hz Average power/sqm 320W/sqm
Refresh 400 Hz Short circuit protection Yes
Driving method Constant Static Led Lamp type Red:Opto Blue:Silan Green:Silan
Control mode synchronous Working environment
Display port DVI Specification Parameter
Display mode 1024*768 /1024*1024 Environment Outdoor
Out of control 1/10,000 ( scattered) Working temperature -20~60°C
lifetime 100,000 hours Working Humidity 10~90%





Led display outdoor Factory:
Outdoor running direction electronic traffic road signs led message display board

Outdoor running direction electronic traffic road signs led message display board


Effect:
Outdoor running direction electronic traffic road signs led message display board
 Outdoor running direction electronic traffic road signs led message display boardOutdoor running direction electronic traffic road signs led message display board




Applications:



Comercial advertising led display outdoor, Stadium perimeter led display outdoor,Mobile trailer led display outdoor module,  for mobile media,shopping mall led display outdoor for logo showing,bank&stock exchange led display outdoor for rates showing, train & bus   led display outdoor, air port led display outdoor , telecommunication led display outdoor system for information showing and instruction.







  We offer you a possibility to run commercials on our screens which are unique advertising media that combine the advantages of outdoor and TV advertising. This kind of advertising is extremely important if you want to create and support one's company image or a product for the sales encouragement. There are many sizes for selection: outdoor, indoor display screens, semi outdoor screens. And also there are full color, dual color and single color for your selection. Customer's design size is acceptable.

Asram Display CO.,LTD is professional in the research and manufacturing of LED Display Screen, which is came into being and grew with the development of information technology. It’s well ahead of the LED display industry with the advantages of longer life span and high efficient of photoelectric conversion, etc. Meanwhile, it’s popular and widely used in daily life, such as finance, securities, stations, airports and supermarkets as the result of the digital-to-analog conversion; also it’s necessary for the live program in the stadium, especially for the direction in highway, that is significant to drivers; to the live show; parties and advertisement, it’s a visual revolution. All the examples show that LED Display is indispensable to wherever the life, work or entertainment.


led display outdoor Package:

Outdoor running direction electronic traffic road signs led message display board


led display outdoor Installation:

Outdoor running direction electronic traffic road signs led message display board


If interested, Welcome your inquiry! (Factory:Shenzhen,China)
