Hot sale Aluminum Foil ALU PET laminate for cable binding and shield
- 50 Ton / Tons per Month
- Shanghai/Ningbo
- T/T
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sunshine | Model Number: | aluminum foil ALU PET laminate |
Type: | Insulation Tape | Material: | Composite Polymer | Application: | High Voltage |
Rated Voltage: | ≥1 KV | Tensile Strength: | ≥60 Mpa |
Product Description
Specifications
1.aluminum foil ALU PET laminate2.best glue & new materials
3.SGS, RHoS,ISO9001:2008
4.Unique solutions 14 years

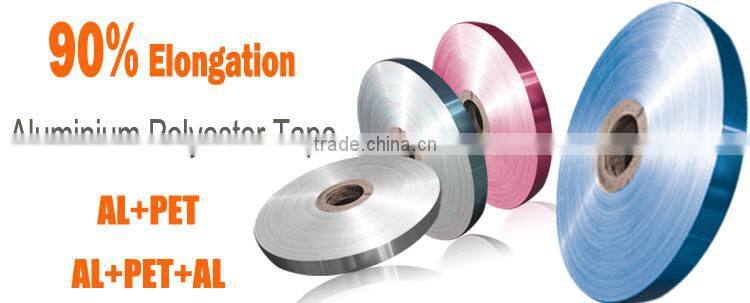

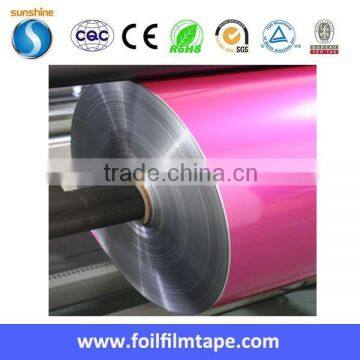

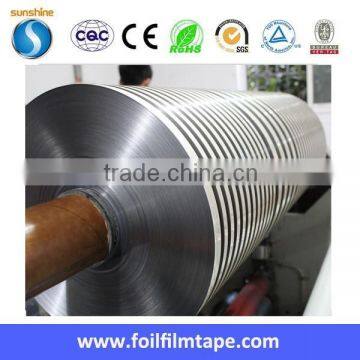

Hot sale Aluminum Foil ALU PET laminate for cable binding and shield
Aluminium polyester lamianted (ALU PET) provides conductivity and electromagnetic insulation. Aluminium foil acts as conductivity and high shielding.Polyester film (PET) provides electrical insulation and high mechanical strength.
Advantage:
1.High strength and shielding
2.New and good quality basic materials
3.RoHS and SGS standard

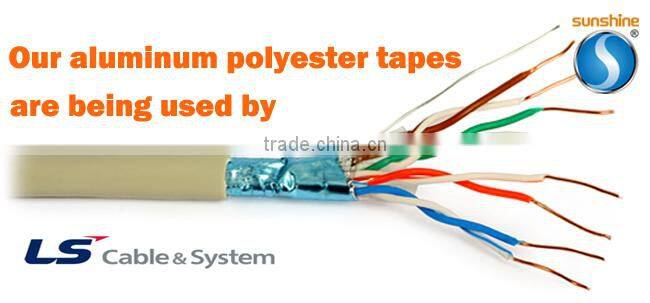

Aluminum foil ALU PET lamiante tape is mainly used on coaxial cables, signal cables, control cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables.
Constructure | Total Thickness | Weight | Yield |
(g/m2) | (m2/kg) | ||
AL9 PET12 | 24 mic | 44 | 22.7 |
AL9 PET15 | 27 mic | 48 | 20.8 |
AL9 PET19 | 31 mic | 54 | 18.5 |
AL9 PET23 | 35 mic | 60 | 16.7 |
AL12 PET12 | 27 mic | 53 | 18.9 |
AL12 PET15 | 30 mic | 57 | 17.5 |
AL12 PET19 | 34 mic | 62 | 16.1 |
AL12 PET23 | 38 mic | 68 | 14.7 |
AL12 PET36 | 51 mic | 88 | 11.4 |
AL15 PET19 | 37 mic | 70 | 14.3 |
AL25 PET12 | 40 mic | 88 | 11.4 |
AL25 PET23 | 51 mic | 103 | 9.7 |
AL40 PET12 | 55 mic | 128 | 7.8 |
AL40 PET15 | 58 mic | 132 | 7.6 |
AL40 PET23 | 66 mic | 144 | 6.9 |
AL40 PET36 | 79 mic | 162 | 6.2 |
AL50 PET12 | 65 mic | 155 | 6.5 |
AL50 PET15 | 68 mic | 160 | 6.3 |
AL50 PET23 | 76 mic | 171 | 5.8 |
AL50 PET36 | 89 mic | 189 | 5.3 |

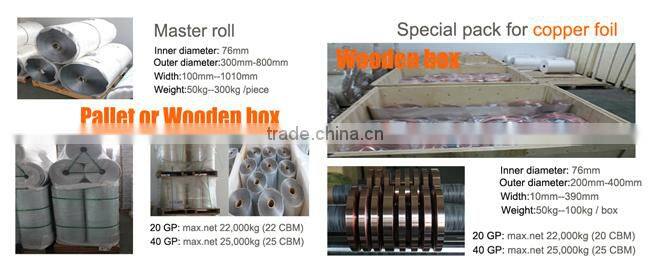

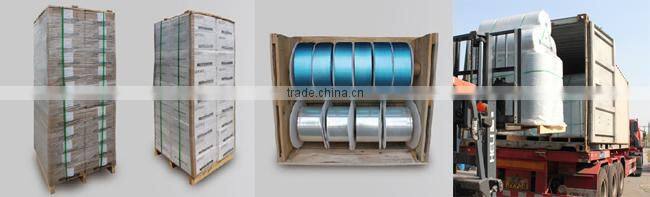

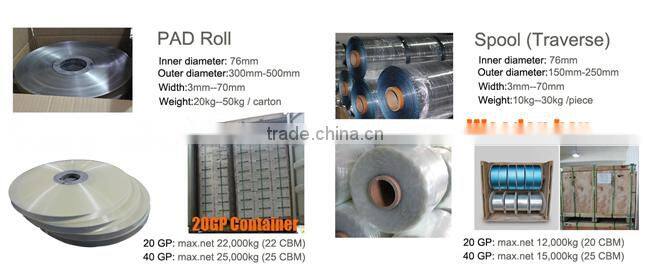

PAD roll pack Spool (traverse) roll pack
Master roll pack Copper foil pack ll pack

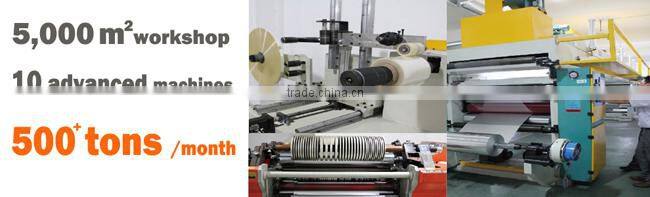

Jiaxing Eternal Electronic Co.,Ltd.(Eternal),ISO 9001:2008 & BV approved,has been a leading manufactuer of aluminum polyester tape,copper polyester tape,polyester tape as well as total foil film tape solutions for 14 years and exporting experience 6 years.There are advanced laminating machines,slitting machines,spool machines 10 sets in the 5,000 square meters workshop.Our production ability is over 500 tons per month that 70% is exported.

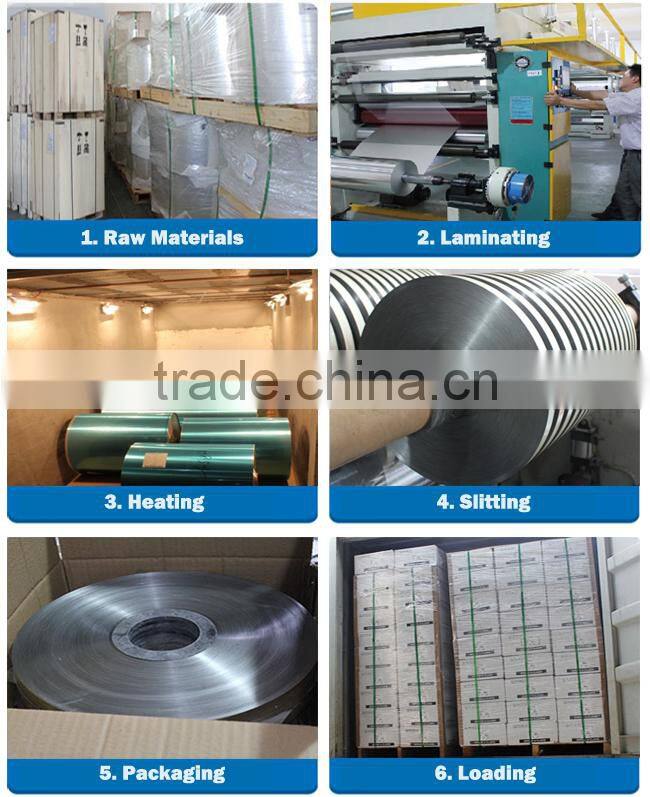

Production Process
Dusseldorf Wire Show

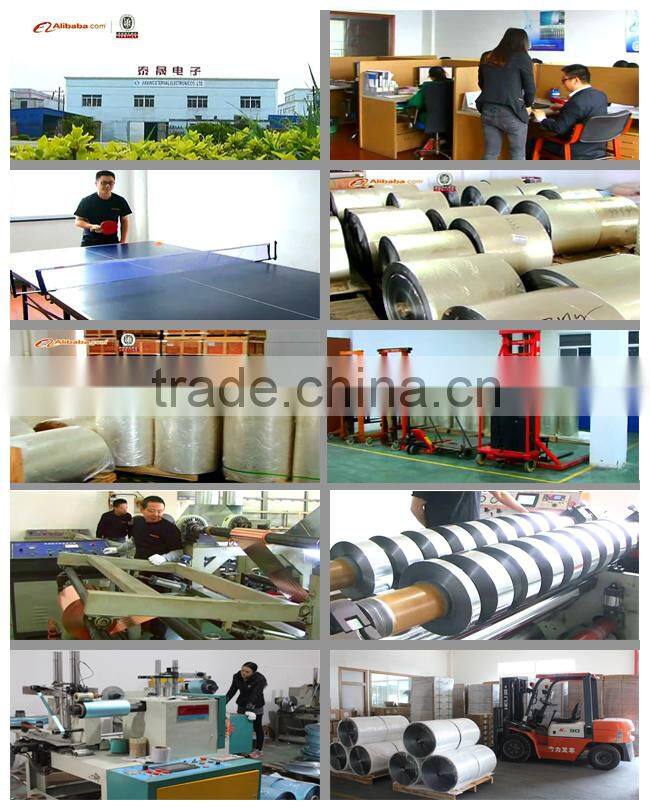

Company Photos
Our Team

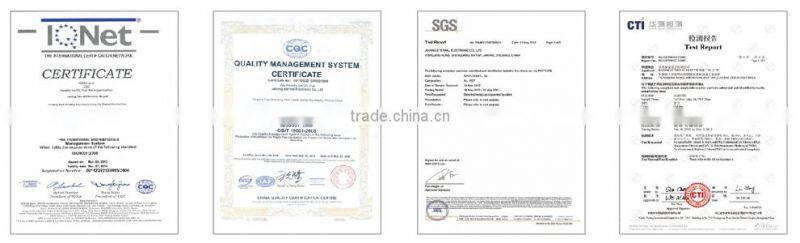

1.ISO 9001:2008 & BV approved manufacturer for quality,price as well as honesty assurance.Our customers like LS,FOXCONN etc.
2.Over 500 tons/month production abilities and about 100km to Shanghai seaport and Ningbo seaport for faster delivery.
3.Over 10 years experience engineers for design, production and machine operation.
4.Strict quality control from raw material purchasing to shipping.New and no scrap materials.
5.Customized design for value-added.
6.24 hours on line services.
Andy Zhang
Mobile phone: +86-188 6832 3332
Skype:wenhua1978
E-mail:andy(at)
