Home > Products > Double-sides led display > dual sided led billboard sign/ Indoor/outdoor single/dual/full color led double side display billboard(3m*1m,3m*2m)

Share|

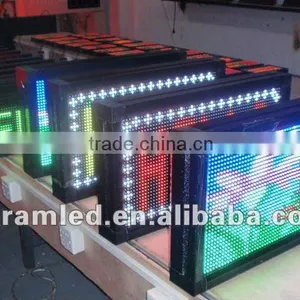

dual sided led billboard sign/ Indoor/outdoor single/dual/full color led double side display billboard(3m1m,3m2m)

Name: dual sided led billboard sign/ Indoor/outdoor single/dual/full color led double side display billboard(3m*1m,3m*2m)
Brand: Asram
Price: Negotiable

FOB Price

Negotiable / Square Meter

1 Square Meter(Min.Order)

Supply Ability 10 Square Meter / Square Meters per Month
Port ShenZhen
Payment Terms:T/T D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Asram	Model Number:	P10mm two sided led dispaly
Usage:	Other, outdoor or semi-outdoor	Tube Chip Color:	Other, Single color, dual color, full color	Display Function:	Video
Pixels:	Other, 10mm.12mm,16mm,20mm.25mm	Screen Dimension:	customized

Packaging Details

1.Anti-shaking wooden package
2.Flight case

Product Description

Specifications

Outdoor video led ad sign display screen
Two dual-sided, double-faced
High resolution Brightness
Good visual effect
Cheaper

Hot sale product:

Specification of Outdoor LED display
Classification	PH10	PH12	PH14	PH16	PH18	PH20	PH22	PH25	PH31.25
Pixel pitch(mm)	10(physical)	12(physical)	14(physical)	16(physical)	18(physical)	20(physical)	22(physical)	25(physical)	31.25
Pixel pitch(mm)	10(physical)	6(virtual)	14(physical)	8(virtual)	18(physical)	10(virtual)	22(physical)	12.5(virtual)	31.25
Pixel configuration	1R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	4R2G2B
LED package	DIP346	DIP346	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546
Pixel denstiy/ sqm	10000dots	6844dots	5102dots	3906dots	3086 dots	2500dots	2066dots	1600dots	1024dots
Pixel denstiy/ sqm	10000dots	27777 dots	5102dots	15625 dots	3086 dots	10000dots	2066dots	6400dots	1024dots
Module size(mm*mm)	320*160	192*192	224*112	256*128	288*144	320*160	352*176	200*200	125*250
Module pixel( dots)	32*16	16*16	16*8	16*8	16*8	16*8	16*8	8*8	4*8
Standard size of cabinet(mm*mm)	1280*960	1152*768	896*896	1024*768	1152*864	1280*960	1056*1056	1000*1000	1000*1000
Cabinet pixel( dots)	128*96	96*64	64*64	64*48	64*48	64*48	48*48	40*40	32*32
Best view angle	110°	110°	110°	110°	110°	110°	110°	110°	110°
Maximum power comsuption(W/sqm)	750	700	600	1000	950	900	700	600	600
Brightness cd/sqm	≥8 000	≥8000	≥8000	≥ 7500	≥ 6500	≥ 60 00	≥ 5500	≥5000	≥ 5500
Driving method	1/4 constant driving		1/2 contant driving	Constant static
Display color	256256256
Refresh frequency	300HZ
Frame frequency	60HZ
Protection Level	Front: IP 65; back: IP43
Working Voltage	AC220/110±10%
Working environment temperature	-40º degree - +50º degree
Life span	>100000hours

Indoor SMD model: PH4, PH5, PH6, PH7.62, PH8, PH10, PH12, PH16, PH20, PH25, PH31.25, PH40.....

Outdoor DIP model: PH10, PH12, PH14, PH16, PH20, PH22, PH25, PH31.25, PH40, PH50, PH70......

Outdoor SMD model: PH6, PH8, PH10, PH12, PH14, PH16, PH18, PH20, PH25, PH31.25.....

Double faced(Two-sided): Single color, Dual color, Tri-color, Full color

We can customize any size according to your request

OEM ODM service is acceptable

CE ROHS ISO certificate

Company Profile

Dongguan Asram Optoelectronic Co., Ltd.

Dongguan Asram Optoelectronic Co., Ltd., headquartered in Longgang, Shenzhen, is a pioneer in LED display field and LED lighting field. We are specialized in designing, researching, manufacturing and selling all kinds of LED displays and LED lighting products. We are an LED company you can count on because of good quality and competitive pricing.

Our products cover full specifications and our management is advanced and effective. Also, we have brought up and gathered a lot of experts at ASRAM. Now we are one of the leading companies in this industry in China.

ASRAM values quality as our lifeline. From raw material testing to manufacturing, assembly and aging test, we carry out every step one by one according to ISO9001:2000 International Quality Control System strictly to guarantee the quality. Our company is CE certified and RoHS Compliant. Our prices are very competitive based on mass production sales due to our OEM service. Thus we have the honor to work for hundreds of customers in over 400 cities and 33 provinces in China. We also have built long-term business relationships with customers in the USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy, Mexico, Chile, Turkey, Vietnam, Israel, India, Pakistan, Kuwait, Iran, Romania and so on.

Each of our products has the 12-month warranty and we provide lifetime maintenance only charging for raw materials. We provide excellent after-sales service, which includes free training, free CAD drawings, installation DVD for more convenience and free consultation lifetime. We will periodically inspect our products which have been sold.

We also have a dedicated and professional international trade management team at your service, headed by a foreigner who has 5 years of experience in dealing with clients in different nations and 4 years of professional working experience in the UK. So why not honor us with a call or an E-mail? We will devote our body and soul to serving you. Maybe both of us have a new start of this business.
