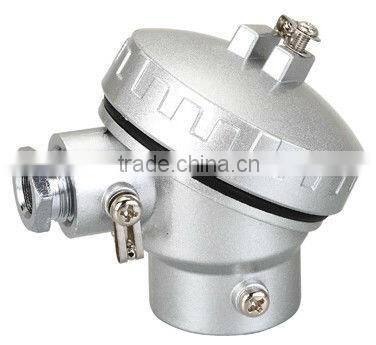

Help CenterTemperature Sensor Connection Head- Type: KSE
Related Products
-
Temperature Sensor Connection Head KNYUS$ 2.75 - 3.98MOQ: 1 Piece -
Temperature Sensor Connection Head KSYUS$ 2.98 - 3.98MOQ: 1 Piece
-
Temperature Sensor Connection Head-KNEUS$ 2.47 - 2.9MOQ: 1 Piece
-
Thermocouple Connection HeadUS$ 1.65 - 25MOQ: 1 Set
-
Thermocouple Connection HeadUS$ 1.66 - 4MOQ: 1 Set
Specifications
temperature sensor connection head,material ;AluminiumADC12,lacquer painting or ployester powder coating
Temperature sensor connection head,material ;AluminiumADC12,lacquer painting or ployester powder coating, Cover diameter 81mm
Sensor connection head is widely used in the thermocouple and RTD sensors.It has the transmitter and terminal block within.Usually ,the material is AluminiumADC12 casted.It's anti-dust and water-proof.Bakelite and stainless is also avaiable for anti-erosion.
1) Type: KNE
2) Material: Aluminium alloy
3)painting: lacquer painting or ployester powder coating
4)Colour: Silver ,RAl colour code

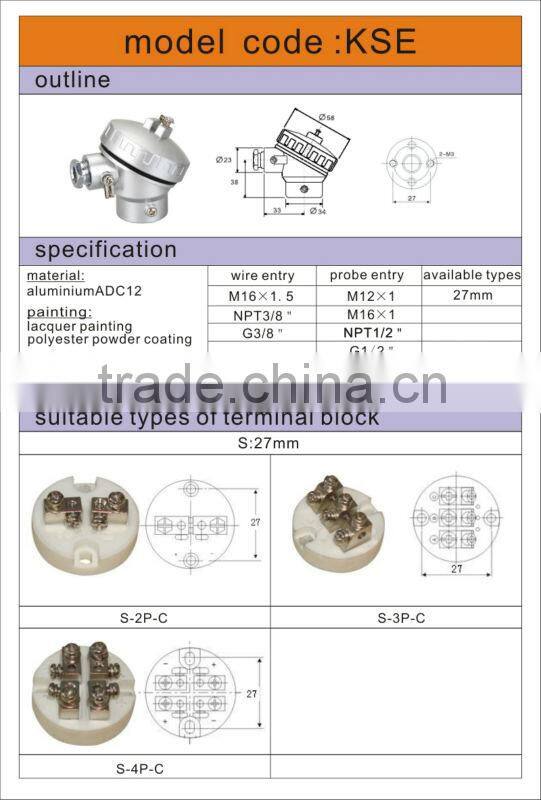

Thermocouple Head
1) Cover diameter 58mm
2) Ceramic terminal blocks:
mounting holes distance: 33±0.1mm, 40±0.1mm
3) wire entry: M16*1,NPT3/8'',G3/8''
4) probe entry: M12×1, M16 ×1 , NPT1/2 , G1/2,
