Temperature sensor connection head-KNE
- 100000 Piece / Pieces per Month
- Ningbo/Shanghai
- Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Taisuo; TST | Model Number: | KNE |
| Usage: | Industrial | Theory: | Temperature Sensor |
Product Description

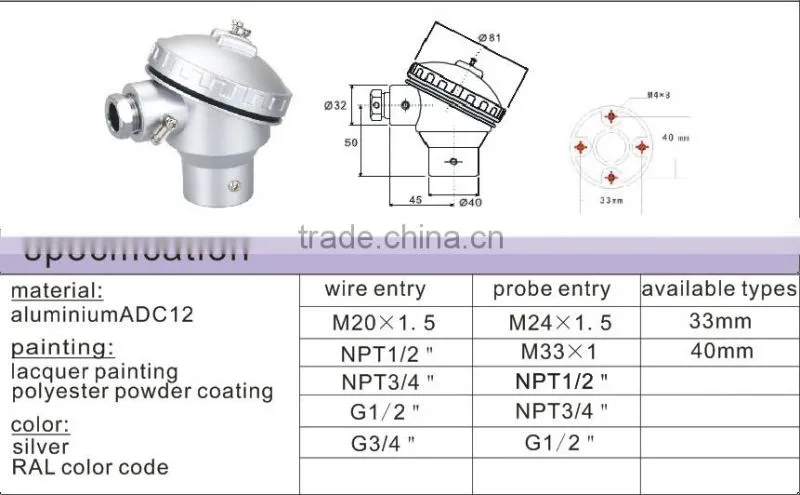

Specifications
Material: AluminiumADC12Lacquer painting or polyester powder coating
Cover diameter: 83mm
Temperature sensor connection head
Material: AluminiumADC12
Lacquer painting or polyester powder coating
Cover diameter: 83mm
Sensor connection head is widely used in the thermocouple and RTD sensors.It has the transmitter and terminal block inside.Usually ,the material is Aluminium ADC12 casted.
It's anti-dust and water-proof.Bakelite and stainless is also avaiable for anti-erosion.
1) Type: KNE
2) Material: Aluminium alloy
3)painting: lacquer painting or ployester powder coating
4)Colour: Silver ,RAl colour code
Thermocouple Head
1) Cover diameter 83mm

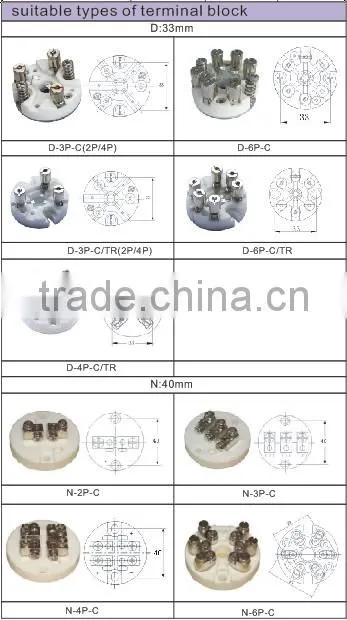

2) Ceramic terminal blocks:
mounting holes distance: 33±0.1mm, 40±0.1mm
3) wire entry: M20×1.5,NPT1/2", NPT3/4", G1/2 , G3/4 ", .
4) probe entry: M24×1.5, M33 ×1 , NPT1/2 , NPT3/4", G1/2, G3/4 ",
Product N.W.: 190g
6) Packing condition: Plastic holder + internal carton(L460×W220×H90mm)
+ external carton(L470×W460×H300mm), 60pcs/ex-ctn
