Specifications
bright color OLED in the same product classThe innovative A scanning snapshot function
Through-Coating Function

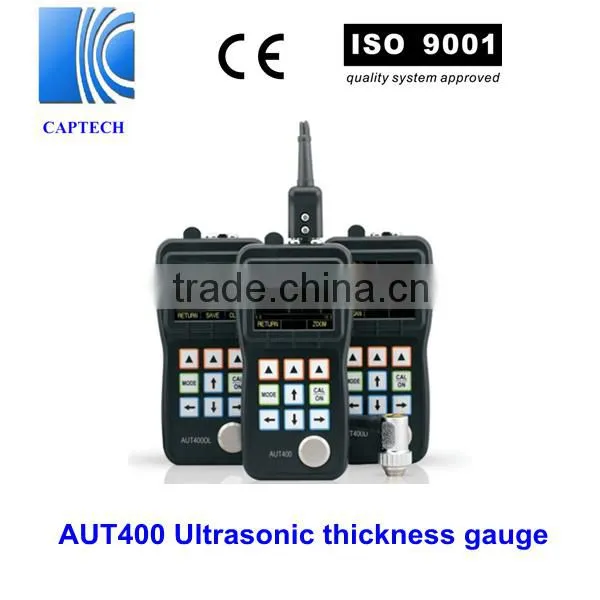

CE certified, Digital Pipe Ultrasonic Thickness Gauge AUT400D
Main functions of AUT400D
the only product using clear bright color OLED in the same product class.
Contrast:10000:1 40 times than TFT color LCD screen
Resolution320×240,9 times than the same product class
Faster measurement update rate
Selectable 4Hz,8Hz,16Hz
4Hz for ordinary use,higher update rate can be chosed when need a quick scan.
The innovative A scanning snapshot function Marks the economical thickness gauge into digital age.
AUT400D first provides A snapshot scanning waveform display function in the same product class.Ultrasonic is no longer an abstract concepts.Users can see directly on the screen of ultrasonic signal,to verify the thickness reading is correct, analyze the cause of the problem and help the user to find the solution to the problem.
Industry's first economical digital thickness gauge
The zero measurement technology,high resolution, A scanning snapshot function is based on ful digital technology.
The AUT400D now offers Through-Coating Thickness Measuring Capability
-You can now test painted tanks, pipes, etc., without needing to remove the paint or make corrections for the paint thickness. 1.no need of zero calibration 2.Measured value is not affected by coupling probe pressure, layer thickness and the influence of the surface dirt stains
The only real 0.01 mm resolution of ultrasonicthickness meter in the same product class.
Ultrasonic thickness gauge display resolution is usually 0.01 mm, but it's hard for the real resolution up to 0.01 mm.Ordinary Timing counter within the thickness gauge is generally below 30 MHZ,With the breakthrough full digital technology and special algorithm, The true resolution of UM-4 can reach 0.01 mm, Lots of experiments prove that it's easy for UM-4 to distinguish that thickness is only 0.01mm of two blocks.
Adopted the zero measurement technology
Based on full digital technology,with the zero measurement technology,the measured value will not be affected by echo intensity,material attenuation coefficient,the gain and the height of the gate,so the result has high stability and reliability.
More practical function
Alarm,DIFF/RR%,Min/max Capture
AUT400 Series Technical Specifications
Instrument Specifications | |
Display Type |
2.4" color OLED, 320 X 240 pixels, contrast 10,000:1 |
Operating Principle |

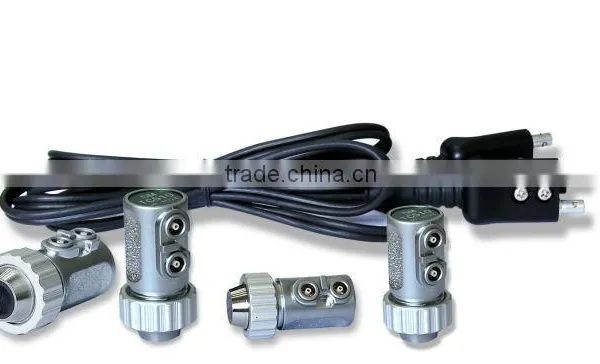

Pulse echo with dual element transducers |
Measuring Range |
0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition |
Measuring Resolution |
Selectable 0.01mm, 0.1mm (selectable 0.001", 0.01") |
Units |
Inch or Millimeter |
Gain |
Low, Medium or High for varying test conditions |
Display Mode |
Normal, Minimum / Maximum capture, DIFF/RR% |
V-Path Correction |
Automatic |
Update Rate |
Selectable 4Hz, 8Hz, 16Hz |
Material Velocity Range |
500 to 9999m/s (0.0197 to 0.3937in/us) |
Languages |
Selectable Chinese, English, Japanese |
Alarm Settings |
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00").Dynamic waveform color change on alarm |
Power Requirements |
2 AA size batteries |
Operating Time |
Approximately 40 hours |
Instrument Shut-off |
Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
Operating Temperature |
-10°C to +50°C (+10°F to +120°F) |
Size |
153mm X 76mm X 37mm(H X W X D) |
Weight |
280g including batteries |
Transportation :
Delivered by DHL,TNT,UPS,EMS,FEDEX or by AIR or by SEA
Guarantee period :1 year
