Specifications
2000 readings memoryData output to PC
High-Low Limits setting
4 digit LCD display with settings
Backlight

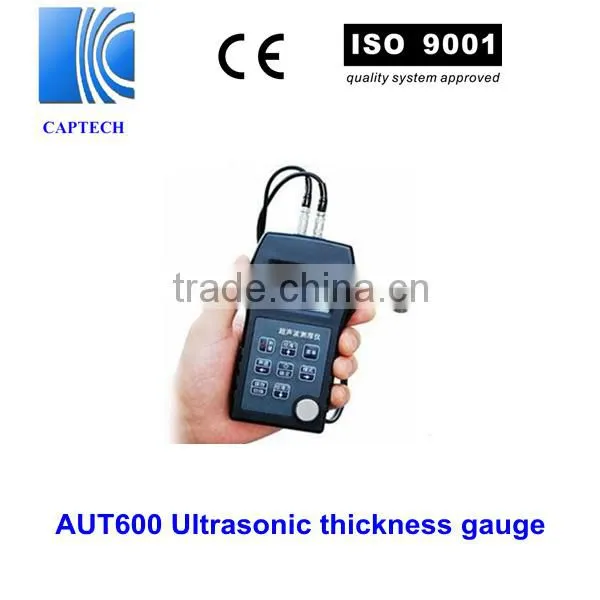

CE certified, Ultrasonic Thickness Gauge Model-AUT600
HIGH ACCURACY ULTRASONIC THICKNESS GAUGE
The ultrasonic thickness gauge Model AUT600 series are featured as cost-efficiency and designed to make accurate measurements on steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, gray cast iron and nodular cast iron. Thickness measurements are made from one side of the material with no need to cut the part.
The SW6 series offers various practical measurement features such as Automatic Probe Recognition that recognizes transducer types, Field Calibration of all materials Sound velocity range 509 up to 18699m/s
• 2000 readings memory
• Data output to PC
• High-Low Limits setting
•4 digit LCD display with settings
• Backlight display for dark environment and adjustable.
Features:
• Available for gauging various materials such as metal, glass, plastic, rubber and etc.
• High measurement accuracy and wide range gauge applications • Suitable for pipe gauging.
• Whole range transducer models are available for almost all kinds of application, including coarse grain material gauging and high temperature applications (Max. temperature up to 300°C).
• Adaptive probe function built in: Patent technology of automatic probe recognition: Automatically recognizing for probes allowing the gage to match with probes made from various probe manufacturers.
• Power on automatic testing function contributing to measurement accuracy increasing.
• Auto power off detection and customizing power off configuration.
• Probe Zero function, Sound Velocity Calibration function.
• 9 velocities built in and programmable.
• Several practical measurement modes available: Standard Mode, Scanning Mode, Difference Mode, Average Mode, Maximum limitation Alert Mode, High Temperature Mode(Should be matched with high temperature probe).
• 8 button keyboard designing for convenient shortcut operations for Probe-Zero function, One-Point and Two-Point Sound-Velocity-calibration, as well as numerical adjusting with direction key control.
• Automatic Data Storage function: group data storage mode, and storage capacity for each group optional.
• Large data storage capacity, Max. up to 2000 groups.
• Special function of SW6U: USB data interface communication, easily accomplishing data transferring with PC and outputting data with “.txt”
• Metric and imperial free convertible.
Thickness Measurement Range:
Notes: Thickness range depends on material transducer type, surface condition and temperature.
Measuring range |
0.75 –500mm(steel) (depends on probe) 0.3~200mm(Glass) |
|
Tolerance |
±(0.5%H+0.03)mm H: thickness of the tested object |
|
Measuring range of steel pipes |
Φ15mm×1.0mm (probe: 7.5MHz, Φ6mm) Φ10mm×1.2mm (probe: 7.5MHz, Φ6mm) |
|
Data output |
USB |
|
Display resolution |
0.1/0.01 mm or 0.01/0.001 inch |
|
|
Battery life
|
280 hours typical battery life, |
|
Sound speed |
509~18699m/s |
|
Measuring units |
mm/ inch |
|
Dimensions(mm) |
136 mm×72 mm×20mm 176g( Including Batteries) |
|
Power supply |
AA batteries (2Pcs) |
|
Storage capability |
2000 readings memory |
|

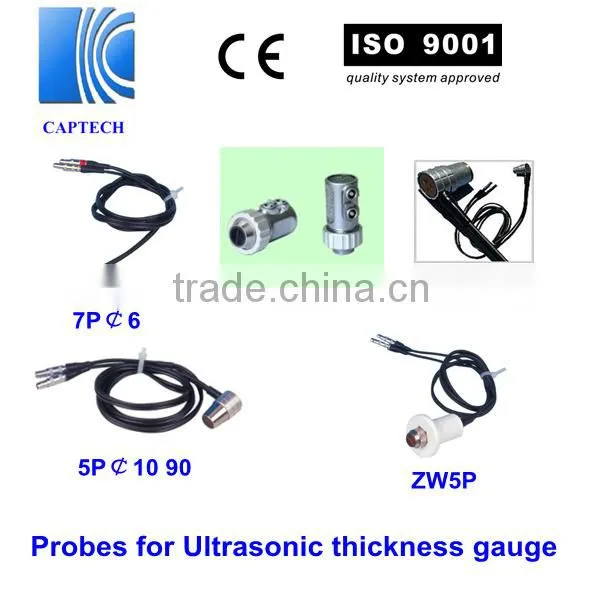

Optional transducers, |
5M, 7M, 2M, High temperature |
|
AUT600 Standard Configuration:
• Gauge AUT600 One Set
• Probe One Set(5MHz, Φ10mm)
• Couplant One Bottle(30ml, Glycerin)
• Battery: 2 AA Alkaline Batteries
• Guide Manual
• Hermetic Plastic Kit (18cm X 15cm X10cm)
• USB Cable
• Software Disk.
package in carton
Transportation :
Delivered by DHL,TNT,UPS,EMS,FEDEX or by AIR or by SEA
Guarantee period :1 year
