Top Quality Cold Room Compressor for Sale
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Temperature | -45~50℃ | |
| Place of Origin | Sichuan, China | Brand Name | Baoye | |
| Model Number | BYCD001 | Voltage | 110v,220v,380V,440v | |
| Power(W) | 3~22.5KW | Dimension(L*W*H) | Machine Model | |
| Weight | Cold Room Dimension | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

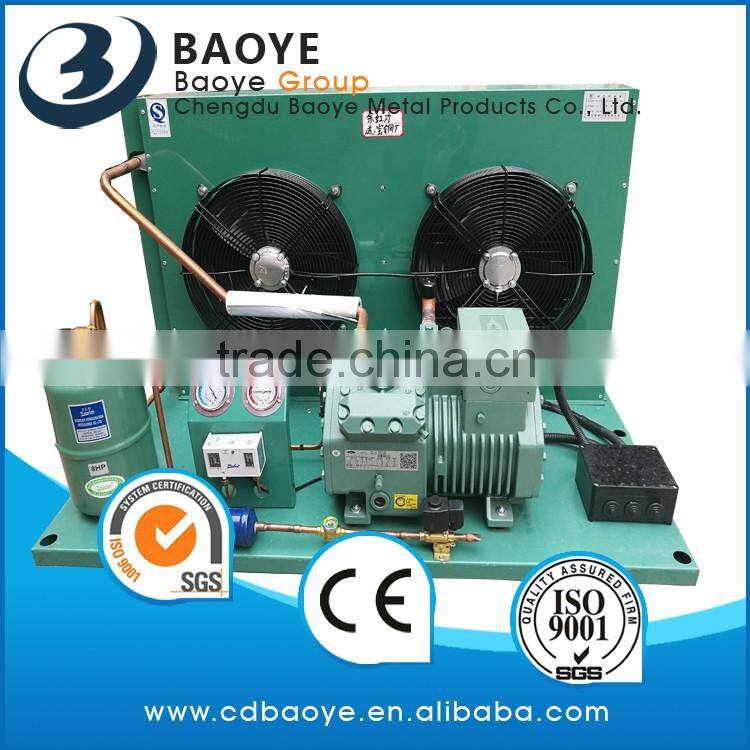

cold room compressor
Technical Data:
Feature of quick freezing room / blast freezer for meat and fish /chiller room, cold stroage room, cooler room,Cold storage /cold store/ walk in freezer room / coldroom, cold storage room, chiller room, cooling room:
Function of cold room compressor
(1) Temperature range: -60ºC~+20ºC (-60ºF~+68ºF) are all available. But the temp. range better no more than 15 degree.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404
1 .Fabricated cold room;
2.Energy saving design;
3.R404a environment friendly refrigerant;
4.Bitzer or Copeland or Hanbell,Fusheng,Frashcold, Refcomp compressor
Components:
(1) Condensing unit: Bitzer, Copeland, Maneurop, Fusheng,Frashcold

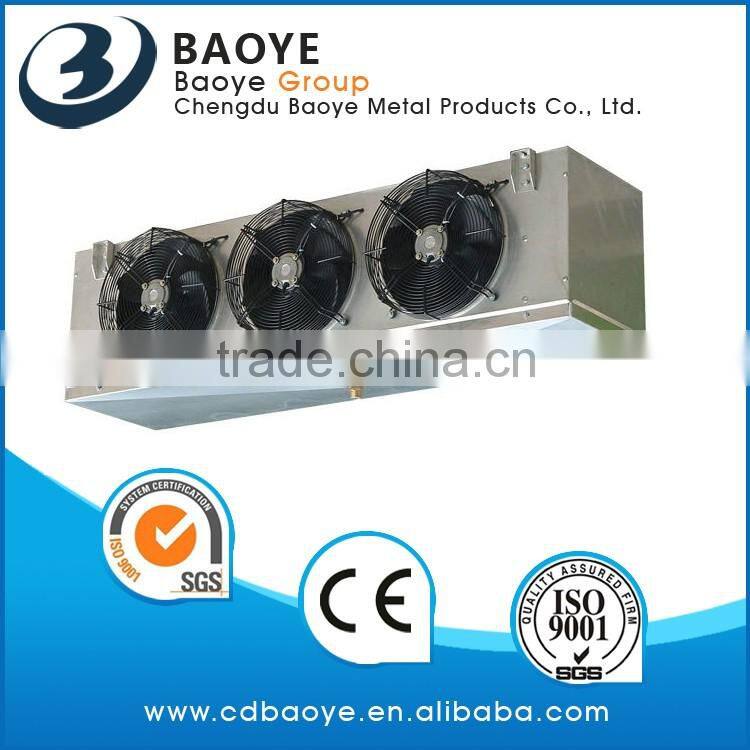

(2) Evaporator: KELTESS air-cooler.
(3) Insulation Panel: PU, EPS.
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beaf,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...
Technical Data:
| Model | Power | Cooling Capacity | Flow Rate | Connection Size | Shape Size (mm) | Install Size(mm) | |||||
| KW | W | M³/H | Entry Tube | Liquid Tube | Water Gap | A | B | C | a | b | |
| FWS3/2FC3.2 | 2 | 5590 | 1.7 | φ16 | φ12 | 11/4" | 750 | 365 | 530 | 510 | 290 |
| FWS4/2EC3.2 | 2.4 | 6660 | 2 | φ22 | φ12 | 11/4" | 840 | 365 | 560 | 510 | 290 |
| FWS4/2DC3.2 | 2.7 | 7980 | 2.4 | φ22 | φ12 | 11/4" | 840 | 365 | 560 | 510 | 290 |
| FWS5/2CC4.2 | 3.3 | 9890 | 2.9 | φ22 | φ16 | 11/2' | 940 | 400 | 620 | 600 | 320 |
| FWS8/4FC5.2 | 3.7 | 11230 | 3.3 | φ22 | φ16 | 11/2" | 1090 | 400 | 670 | 710 | 320 |
| FWS8/4EC5.2 | 4.6 | 13960 | 4 | φ28 | φ16 | 11/2" | 1090 | 400 | 670 | 710 | 320 |
| FWS10/4DC7.2 | 5.4 | 16830 | 4.9 | φ28 | φ22 | 2" | 1260 | 410 | 670 | 800 | 320 |
| 1 Refrigeration capacity and input power when operates -5/40. 2 The unit's power supply: 380V/50HZ; 3 The refrigerant the unit adopts is R22, please note if you want to use R404A. 4 Many other models of Bitzer Condensing Units will be available upon request. | |||||||||||
