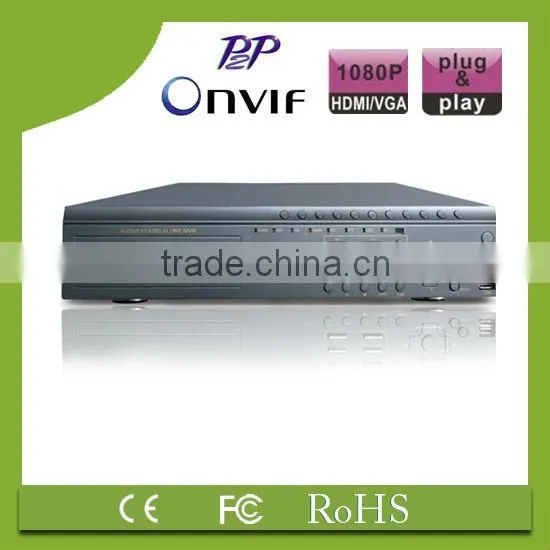

ONVIF 25CH Network Nvr System Support 8*3000GB SATA HDDs P2P Plug and Play /HDMI/ Mobile Surveillance/CMS (A9425E)

ONVIF 25CH Network Nvr System Support 8*3000GB SATA HDDs P2P Plug and Play /HDMI/ Mobile Surveillance/CMS (A9425E) thumbnail-1
ONVIF 25CH Network Nvr System Support 8*3000GB SATA HDDs P2P Plug and Play /HDMI/ Mobile Surveillance/CMS (A9425E) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TL, OEM/ODM order is welcomed !
Model Number:
A9425E
Contact Supplier Request Quote Chat Now
Shenzhen Tollar Security Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TL, OEM/ODM order is welcomed !
Model Number A9425E

Specifications

1. ONVIF 25CH network nvr system support P2P;
2. Free DDNS Domain name,HDMI output;
3.NVR ONE-KEY-MATCH to ID CAM,plug & play

 ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)

  • Selling Points of NVR:

1) NVR ONE-KEY-MATCH to ID CAMs: ID CAMS would auto reconnecting once NVR new network segment revised;

2) ID CAM no need IP setting, all is auto, just use it analog camera;

3) Support P2P function, plug and play , Build-in DDNS domain name, easy operation ;

4) Support ONVIF Standard !



  • Technical Specifications :



Model A9425E
 60HZ(NTSC)Recording

15FPS/CH @ 1080P,960P

30FPS/CH @ 720P,D1,VGA,CIF (real time)
 50HZ(PAL)recoding

12FPS/CH @ 1080P,960P

25FPS/CH @ 720P,D1,VGA,CIF (real time)


 Playback 9-CH 1080P,960P,720P,D1,VGA / 16-CH CIF
HDMI output 1920*1080
VGA output 1920*1080/1280*1024 / 800*600
BNC output NTSC:720*480 / PAL:720*576
CDS threshold setup Support
Zoom Continuous variable
Network protocol DHCP,DDNS,UPnP,SMTP,HTTP,ONVIF,FAB
IE Windows
CMS Windows / Mac
CMS function 64pcs 32-ch NVR connect,256-ch preview,maximum 1080P,PTZ control,Network playback,Network backup,Network menu setup,snapshot,PC record,AVH file playback,AVH file transform to AVI file,etc.
Record mode Time /Sensor / Motion / Motion/Sensor
Mobile OS Windows mobile,iPhone,Android,Symbian,Blackberry
Mobile function 16-ch preview,Maximun resolution is 1080P,Network playback,PTZ control,snapshot,etc.
Audio output Send to 16-ch IPCAM or CMS
Audio input Come from 25-ch IPCAM
Alarm email Support
Hard disc 8*3000G
Mouse / Remoter Support
PTZ / Keyboard control Network or RS485
Network connector 1000M RJ45
DVD-RW Optional
USB connector 2*2USB 2.0
Language Two groups selectable,7 languages for each group
Power ATX250W
Dimensions(mm) 390(W)*430(D)*100(H)
Weight 5.7kg (No hard disc)



  • Warranty:

2-years long time warranty, life time maintain !



  •  OEM Service:

We could offer OEM and ODM services for our clients.

Why to choose TOLLAR Security?

1. TOLLAR introduction:

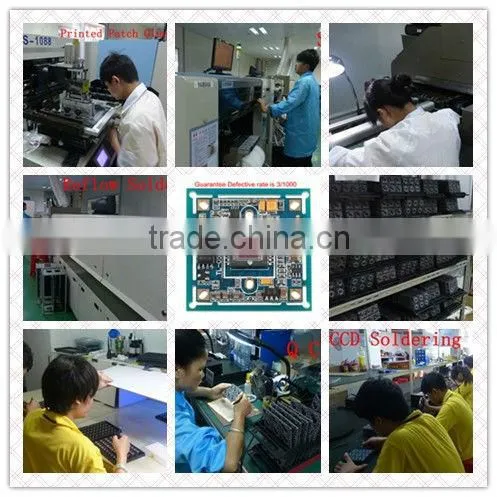

At TOLLAR, has our own SMT Technology and Equipments ,can supply Modules Modules of high quality to clients all-over-the world;



Also, To have our own Assembling production lines: Automated module production+Cost-effective shenzhen labor force=Competitive products.



ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)







2. Product Certification : (CE, ROHS, FCC)

ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)ONVIF 25CH network nvr system support 8*3000GB SATA HDDs P2P plug and play /HDMI/ mobile surveillance/CMS (A9425E)
