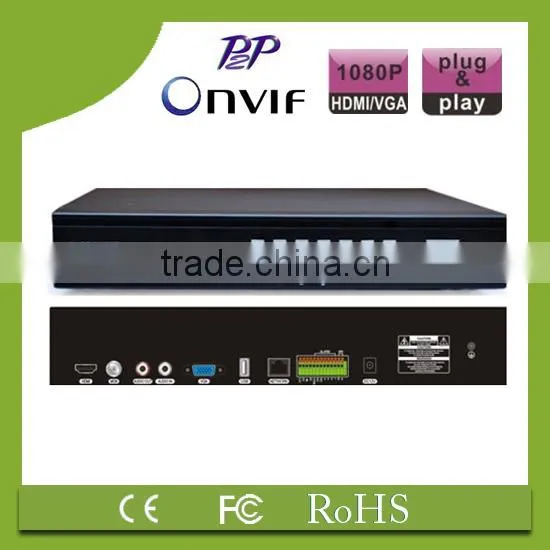

Help Center2013 New DIY 4CH 720P IP ID Camera and NVR Kit Security Equipment Support P2P Standard Onvif 2.0 HDMI 4CH NVR Recorder
Related Products
-
H.264 Compressed Format DVR 4CH CCTV AHD Digital Video RecorderUS$ 26 - 26MOQ: 1 Piece -
4CH MOBILE DVR H.264 CCTV DVR With GPS 3G 4G WIFI G-SENSOR Supports CMS and Mobile Phone Remote MonitoringUS$ 60 - 270MOQ: 1 Piece
-
Tollar H.264 8CH AHD Video Recorder Realtime and Playback P2P 960P NVR H.264 Professional DvrUS$ 1 - 26MOQ: 1 Piece
-
2U H.264 16CH NVR Recorder Support 16ch 1080P IP/ID Cameras Support Standard Onvif 2.2, 8pcs*3000GB SATA HDDs Storage(A9316E)NegotiableMOQ: 1 Piece
-
Nvr Camera System ONVIF 16CH H.264 1080P 720P Real-time HDMI Network Video Recorder 2pcs*3TB HDDs NVR 1920*1080(C9316E)NegotiableMOQ: 1 Piece
Specifications
1.720P 4CH NVR kit Seucrity Equipment with ONVIF2.Plug & play, no need ip setting, P2P function
3.HDMI,alarm,2-years warranty
2013 New DIY 4CH 720P IP ID camera and NVR kit Security Equipment support P2P standard Onvif 2.0 HDMI 4CH NVR Recorder
Features:
1. Maximum 4-ch 720P IP/ID CAM input, 4*HD for 4split preview,
2. 4-ch 720P playback
3. Support 1*3T SATA harddisk
4. Support onvif protocol IPCAM input,the IPCAM of Hikvision,Dahua,TVT,Topsee,Grandstream are connect well with test verification
5. 25Mbps data processing capability
6. NVR one-key-match IDCAM, if NVR network segment is changed, IDCAM will reconnect automatically
7. IDCAM CDS threshold value can be setup by NVR
8. Windows and iMac CMS is free,software supports up to 64 NVR connecting at the same time
9. iPhone and android OS software support 16split preview,1080P network playback and PTZ control
10. Support network keyboard control
11. Easy cabling and maintaince
12. NVR with similar functions as DVR
13. Well-done lightning protection, no image interference
Specification:
| Item No. | G9504N | G9509N |
| SOC | Hi3515A | |
| 60HZ(NTSC) recording |
15FPS/CH @ 1080P; 25FPS/720P,D1,VGA,CIF(real time) |
15FPS/CH @ 1080P,960P 30FPS/CH @ 720P,D1,VGA,CIF(real time) |
| 50HZ(PAL) recording |
12FPS/CH @ 1080P; 25FPS/CH @720P,D1,VGA,CIF(real time) |
12FPS/CH @ 1080P; 25FPS/CH @ 720P,D1,VGA,CIF(real time) |
| Playback | 1-ch 720P,D1,VGA / 4-ch CIF | 1-ch 720P,D1,VGA / 9-ch CIF |
| HDMI output | 1920*1080 | |
| VGA output | 1920*1080/1280*1024 / 800*600 | |
| BNC output | NTSC:720X480 / PAL:720X576 | |
| CDS threshold setup | Support | |
| Zoom | Continuous variable | |
| Network protocol | P2P , DHCP, DDNS, UPnP, SMTP, HTTP,ONVIF, FAB | |
| IE | Windows | |
| CMS | Windows / Mac | |
| CMS function | 64pcs 32-ch NVR connect,256-ch preview,maximum 1080P,PTZ control,Network playback,Network backup,Network menu setup,snapshot,PC record,AVH file playback,AVH file transform to AVI file,etc. | |
| Motion detect | Support | |
| Record mode | Time /Sensor / Motion / Motion+Sensor | |
| Mobile OS | Windows mobile, iPhone, Android, Symbian, Blackberry | |
| Mobile function | 16-ch preview,Maximun resolution is 1080P,Network playback,PTZ control,snapshot,etc. | |
| Listen | Come from 4-ch IPCAM,CMS | Come from 9-ch IPCAM,CMS |
| Audio output | Send to 4-ch IPCAM or CMS | Send to 9-ch IPCAM or CMS |
| Audio input | Come from 4-ch IPCAM | Come from 9-ch IPCAM |
| Alarm email | Support | |
| Alarm input | 4-ch from NVR and 4-ch from IPCAM | 4-ch from NVR and 9-ch from IPCAM |
| Alarm output | 1port NVR and 4-ch send to IPCAM | 1port NVR and 9-ch send to IPCAM |
| Hard disc | 1*3000G SATA HDDs | |
| Mouse | Support | |
| Remoter | Support | |
| Keyboard control | Network or RS485 | |
| PTZ control | Network or RS485 | |
| Network connector | 100M RJ45 | |
| DVD-RW | Optional | |
| USB connector | 2*2USB 2.0 | |
| Language | Two groups selectable,7 languages for each group | |
| Power | DC12V 5A | |
| Working temperature | -10°C~50°C | |
| Size | 300mm(L)×220mm(W)×45mm(H) | |
| Weight | 1.9 kg (No hard disc) | |
Application:
Why to choose TOLLAR Security?
1. TOLLAR introduction:
At TOLLAR, has our own SMT Technology and Equipments ,can supply Modules Modules of high quality to clients all-over-the world;
Also, To have our own Assembling production lines: Automated module production+Cost-effective shenzhen labor force=Competitive products.
2.Product Certification : (CE, ROHS, FCC)
3.Warranty:
2-years long time warranty, life time maintain !
4. OEM Service:
We could offer OEM and ODM services for our clients.
5. Faster delivery:
Within 1-2 days for sample upon receiving the payment;
Within 3-5 days for medium & large order upon receiving the payment.
6.Delivery term:
By Express(DHL/FEDEX/TNT/UPS/EMS).By Air ,By Sea.
7. Payment:
T/T/ Western Union / L/C/ Paypal.
FAQ:
Q: How long is the warranty?
A: 2 -years-warranty .
Q: What's the MOQ?
A: 1pc. You can buy a small amount as a test sample first.
Q: How long is the delivery time?
A: Sample order in 1-2 working days, bulk order 3-5 working days.
Q: What are the payment terms?
A: T/T , Western Union and Paypal.
Q: Why do you choose us?
A: Choose TOLLAR Co., Ltd; Choose a qualified CCTV Products manufacturer!
Our HD IP / ID network Products are below listed:
ID CAM Series: 720P ID CAM ; 1080P ID CAM;
NVR series:
4CH 720P Real-time NVR;
4CH 1080P Real-time NVR;
9CH 720P Real-time NVR;
16CH 720P Real-time NVR;
16CH 1080P Real-time NVR;
25CH 720P Real-time NVR;
32CH 720P NVR.
For any more details or best price for ID CAM & NVR, welcome to contact with Sunny at any time !!
Thanks for your great support !!
