Saty Wire

Name: Saty Wire
Brand: HNTDDL
SKU: 132283467

US$ 0.1 - 3 MOQ: 1 Ton

Key Specifications

Steel Grade:

steel

Standard:

ASTM, BS, DIN, GB

Wire Gauge:

3.0-20mm

Henan Tong-Da Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade steel

Standard ASTM, BS, DIN, GB

Wire Gauge 3.0-20mm

Place of Origin Henan, China

Type Galvanized

Application Manufacturing

Alloy Or Not Non-alloy

Special Use Cold Heading Steel

Model Number 50mm2

Brand Name HNTDDL

Specifications

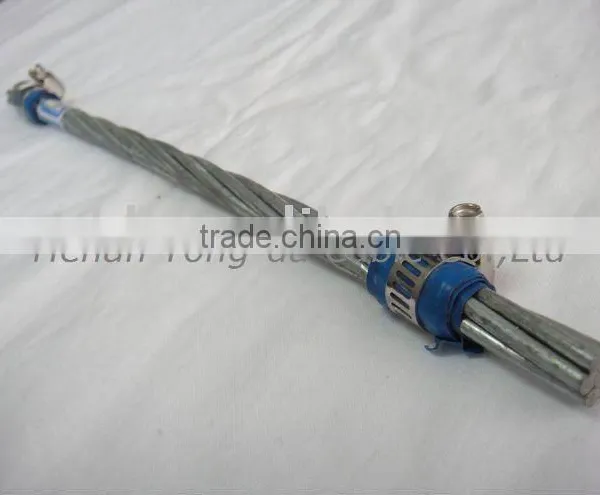

Galvanized Steel Wire used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires


Applications	Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable for field-erected aerial cable.
Specifications	SURAL steel strand meets or exceeds the following ASTM specifications: A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand A-475 Zinc-Coated Steel Wire Strand
Construction	Concentrically stranded galvanized steel strand. Available in classes "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Available in five grades of strength: common, Siemens-Martin, high-strength, utilities, and extra-high-strength. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

Specification:1×7-3.00-12.6mm
1×19-5.00-16.00mm

Number of wires in strand	Stee wire diameter mm	Norminal diameter of the strand mm	The cross section area of strand mm²	Nominal tensile streng of Gal.steel wire Mpa					Approximate Weight of stand per Kg/100M
				1175	1270	1370	1470	1570
				Breaking strength of strand KN≥
1×7	1.60	4.8	14.07	16.53	17.87	19.28	20.68	22.09	11.17
	1.80	5.4	17.81	20.93	22.62	24.40	26.18	27.96	14.14
	2.00	6.0	21.99	25.84	27.93	30.13	32.32	34.52	17.46
	2.20	6.6	26.60	31.26	33.78	36.44	39.10	41.76	22.77
	2.30	6.9	29.08	34.17	36.93	39.84	42.75	45.66	23.09
	2.60	7.8	37.17	43.60	47.20	50.92	54.63	58.30	29.51
	2.90	8.7	46.24	54.33	58.72	63.36	67.97	72.60	36.71
	3.00	9.0	49.48	58.14	62.84	67.79	72.74	77.68	42.38
	3.20	9.6	56.30	66.15	71.50	77.13	82.76	88.39	44.70
	3.50	10.5	67.35	79.14	85.85	92.27	99.00	105.74	53.48
	3.80	11.4	79.39	93.28	100.82	108.76	116.70	124.64	63.04

Number of wires in strand	Stee wire diameter mm	Norminal diameter of the strand mm	The cross section area of strand mm²	Nominal tensile streng of Gal.steel wire Mpa					Approximate Weight of stand per Kg/100M
				1175	1270	1370	1470	1570
				Breaking strength of strand KN≥
1×19	1.60	8.0	38.2	44.88	48.51	52.38	56.15	59.97	30.40
	1.80	9.0	48.35	56.81	61.40	66.24	71.07	75.91	38.49
	2.00	10.0	59.69	70.14	75.81	81.77	87.74	93.71	47.51
	2.20	11.6	72.22	84.86	91.71	98.94	106.16	113.39	56.69
	2.30	11.5	78.94	92.75	100.25	108.15	116.04	123.94	62.84
	2.60	13.0	100.88	118.53	125.12	138.20	148.29	158.38	80.30
	2.90	14.5	125.50	147.46	159.38	171.93	184.48	197.03	99.90
	3.00	15.0	134.30	157.80	170.56	183.99	197.42	210.85	105.43
	3.20	16.0	152.81	179.55	194.06	209.35	224.63	239.91	121.64
