Help CenterGalvanized Steel Wire Strand BS 183:1972
Related Products
Specifications

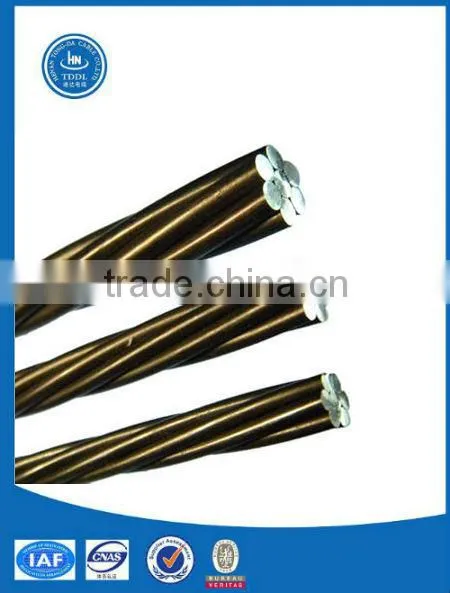

BS 183:1972 galvanized steel wire/GSW/Stay Wire/SWG for ground wire, steel core for ACSR, stay wire, Guy wire, messenger.
1.Brief Description of galvanized steel wire strand/guy wire
Galvanized steel strandwire refers to any steel wire product that has subjected to a galvanizing
process to improve its resistance to corrosion.
This process typically involves dipping the finished wire product into a bath of heated zinc compound to form a scratch-and corrosion resistant coating across the entire surface of the wire.
2.Applications:
Galvanized steel strand wire/ guy wire in multicore electrical cables. Its low cost and ease of production makes
galvanized steel wire ideal for mass produced corrosion resistant wire products. It is an indispensable industrial,
agricultural, and DIY fastening and reinforcement standard.
3.Zinc-coated grade of steel strand wire /guy wire : Class A and Class B
4.Galvanized guy wire /steel strand /ground wire
it is made of low ,mid & high carbon galvanized steel guy wire and steel stranded wire
5.Galvanized guy wire /steel strand wire /ground wire/steel wire strand structure :
Diameter (7strands, 19 strands) :1.57mm-4.80mm
Galvanized steel wire for ground wires, steel core for ACSR, stay wires, Guy wires, messengers.
Specification:
1× 7-4.80mm-12.60mm
1× 19-9.00mm-15.00mm
No. of |
Steel |
Dia. |
section area |
Nominal tensile streng of Gal.steel wire (Mpa) |
Approximate |
||||||||
1175 |
1270 |
1370 |
1470 |
1570 |
|||||||||
Breaking strength of strand | |||||||||||||
|
mm |
mm |
mm2 |
kN≥ |
kg/100M |
||||||||
1×7 |
1.60 |
4.8 |
14.07 |
16.53 |
17.87 |
19.28 |
20.68 |
22.09 |
11.17 |
||||
1.80 |
5.4 |
17.81 |
20.93 |
22.62 |
24.40 |
26.18 |
27.96 |
14.14 |
|||||
2.00 |
6.0 |
21.99 |
25.84 |
27.93 |
30.13 |
32.32 |
34.52 |
17.46 |
|||||
2.20 |
6.6 |
26.60 |
31.26 |
33.78 |
36.44 |
39.10 |
41.76 |
22.77 |
|||||
2.30 |
6.9 |
29.08 |
34.17 |
36.93 |
39.84 |
42.75 |
45.66 |
23.09 |
|||||
2.60 |
7.8 |
37.17 |
43.60 |
47.20 |
50.92 |
54.63 |
58.30 |
29.51 |
|||||
2.90 |
8.7 |
46.24 |
54.33 |
58.72 |
63.36 |
67.97 |
72.60 |
36.71 |
|||||
3.00 |
9.0 |
49.48 |
58.14 |
62.84 |
67.79 |
72.74 |
77.68 |
42.38 |
|||||
3.20 |
9.6 |
56.30 |
66.15 |
71.50 |
77.13 |
82.76 |
88.39 |
44.70 |
|||||
3.50 |
10.5 |
67.35 |
79.14 |
85.85 |
92.27 |
99.00 |
105.74 |
53.48 |
|||||
3.80 |
11.4 |
79.39 |
93.28 |
100.82 |
108.76 |
116.70 |
124.64 |
63.04 |
|||||
1×19 |
1.60 |
8.0 |
38.2 |
44.88 |
48.51 |
52.38 |
56.15 |
59.97 |
30.40 |
||||
1.80 |
9.0 |
48.35 |
56.81 |
61.40 |
66.24 |
71.07 |
75.91 |
38.49 |
|||||
2.00 |
10.0 |
59.69 |
70.14 |
75.81 |
81.77 |
87.74 |
93.71 |
47.51 |
|||||
2.20 |
11.6 |
72.22 |
84.86 |
91.71 |
98.94 |
106.16 |
113.39 |
56.69 |
|||||
2.30 |
11.5 |
78.94 |
92.75 |
100.25 |
108.15 |
116.04 |
123.94 |
62.84 |
|||||
2.60 |
13.0 |
100.88 |
118.53 |
125.12 |
138.20 |
148.29 |
158.38 |
80.30 |
|||||
2.90 |
14.5 |
125.50 |
147.46 |
159.38 |
171.93 |
184.48 |
197.03 |
99.90 |
|||||
3.00 |
15.0 |
134.30 |
157.80 |
170.56 |
183.99 |
197.42 |
210.85 |
105.43 |
|||||
3.20 |
16.0 |
152.81 |
179.55 |
194.06 |
209.35 |
224.63 |
239.91 |
121.64 |
|||||
