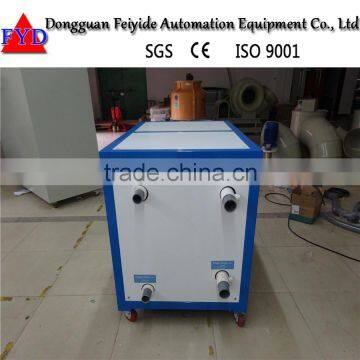

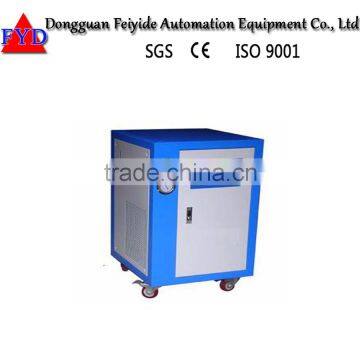

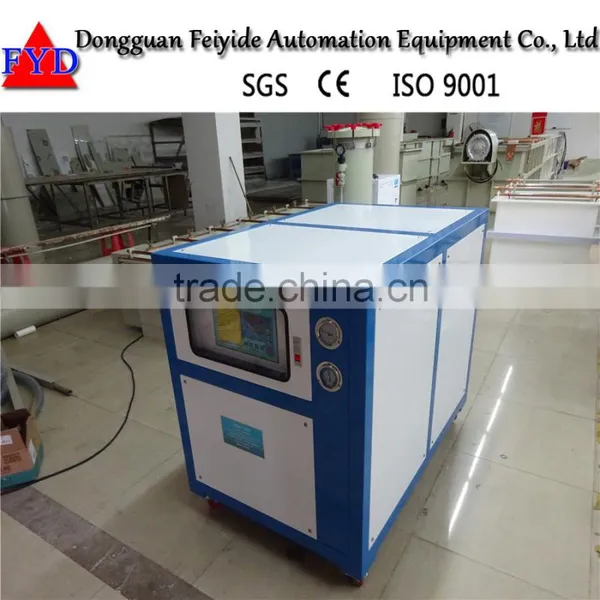

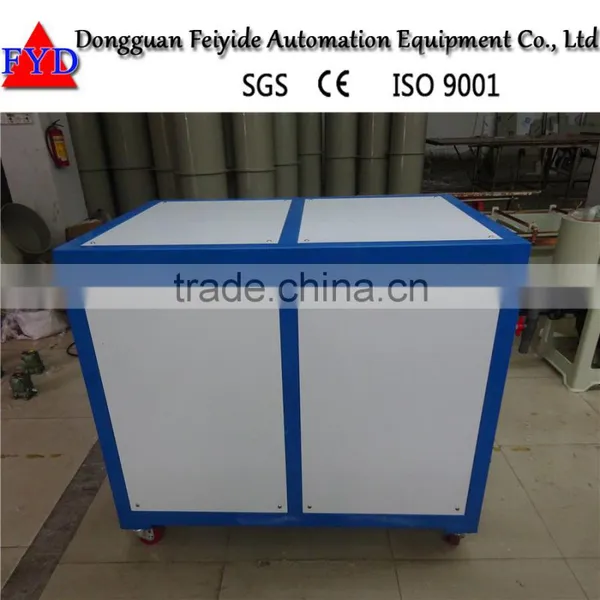

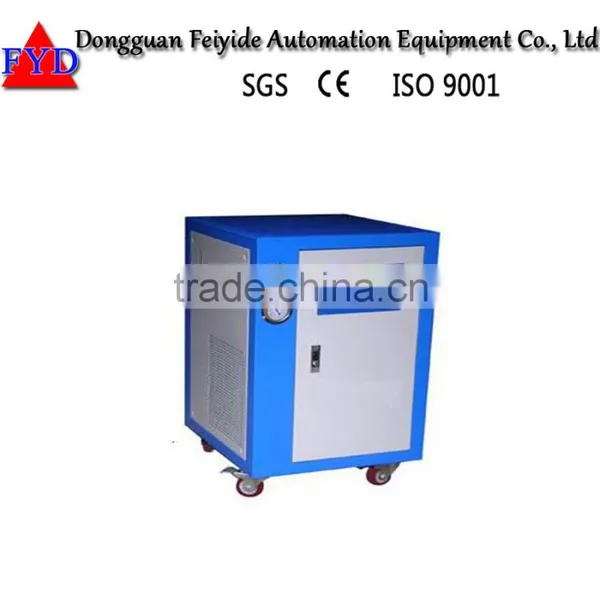

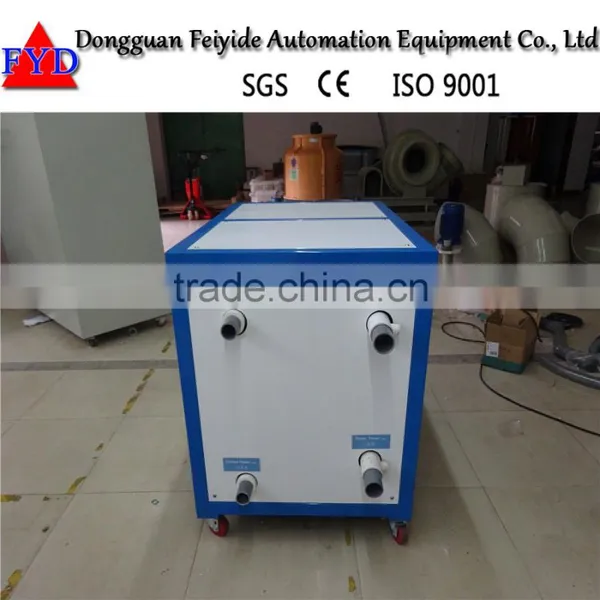

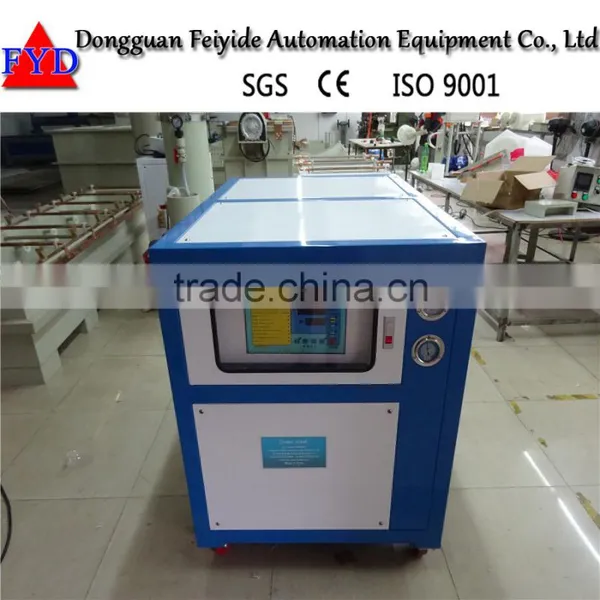

Feiyide 10HP Industrial Air Cooled Chiller for Zinc Silver Electroplating Machine

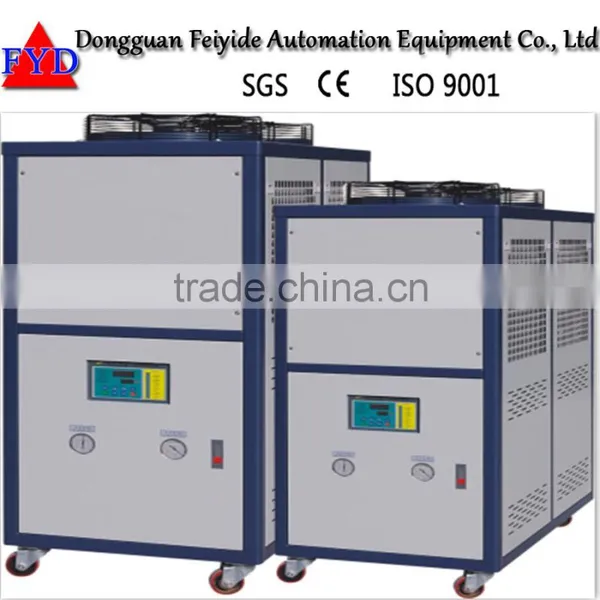

Air Cooled Screw Chiller :
1. Bitzer Compressor
2. SIEMENS PLC controller
3. Capacity 40~600Ton
4. Eco-friendly Refrigeran
I.Application :
FYD brand industrial chiller are the perfect solution for any application, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, laser, shoe-making, electronic, print, etc
Parameter setting
Itms |
Setting range |
Default values |
Instruction of parameter setting |
F00 |
OFF~ON |
ON(Note8) |
Compressor high-voltage examination(OFF: normally open contact,ON: normally close contact) |
F01 |
OFF~ON |
ON(Note 8) |
Compressor high-voltage examination(OFF: normally open contact,ON: normally close contact) |
F02 |
OFF~ON |
ON(Note 8) |
Compressor overload examination(OFF: normally open contact,ON: normally close contact) |
F03 |
OFF~ON |
ON(Note8)(Note 9) |
Phase detection (OFF: normally open contact,ON: normally close contact) |
F04 |
OFF~ON |
ON(Note 8) |
Cooling pump (condenser) Low water pressure (OFF: normally open contact,ON: normally close contact) |
F05 |
OFF~ON |
ON(Note 8) |
Cooling pump (condenser)over load (OFF: normally open contact,ON: normally close contact) |
F06 |
OFF~ON |
ON(Note 8) |
Cooling pump(evaporator pump) Low water pressure (OFF: normally open contact,ON: normally close contact) |
F07 |
OFF~ON |
ON(Note 8) |
Cooling pump(evaporator pump) overload (OFF: normally open contact,ON: normally close contact) |
F08 |
OFF~ON |
ON(Note 8) |
Antifreeze switch (OFF: normally open contact,ON: normally close contact) |
F09 |
0~50℃ |
30℃(Note 10) |
limited values of the highest temperature controlling |
F10 |
-20.0~50℃ |
2℃(Note 10) |
limited values of the lowest temperature controlling |
F11 |
-10.0~10℃ |
0℃ |
Temperature correction |
F12 |
-20.0~50℃ |
2℃ |
The water temperature is too low (if temperature is below this ,alarm code E12 will show up) |
F13 |
-20.0~50℃ |
5℃ |
Setting the control temperature |
F14 |
0~15℃ |
2℃ |
Return temperature |
F15 |
1-2 |
2(Note 11) |
Number of compressor |
F16 |
NO~US~Auto |
US(Note 12) |
Setting up to use function of auto-start or not(NO: nonuse,US:standby,Auto: auto-start) |
F17 |
0s~20s |
5s(Note 13) |
Cooling pump (condenser)start-up delay |
F18 |
0s~20s |
2s(Note 14) |
Cooling pump (condenser)stop delay(after compressor stops) |
F19 |
30s~600s(10min) |
180s(Note 15) |
Compressor anti frequent start |
F20 |
0s~20s |
10s(Note 16) |
Cooling pump(evaporator pump) Fault output delay |
F21 |
0s~20s |
2s(Note 16) |
(compressor, antifreeze, temperature of outlet water and sensor)Fault output delay |
F22 |
0s~20s |
2s(Note 16) |
phase fault output delay |
F23 |
0s~20s |
2s(Note 17) |
Interval time of start-up of two units (two compressors is not allowed to start at the same time) |
F24 |
0s~180s |
20s(Note 16) |
Cooling pump (condenser) Fault output delay |
F25 |
0or1 |
0(Note 18) |
Working mode selection of Cooling pump(evaporator pump) and Cooling pump (condenser) |
Dongguan Feiyide Machinery Equipment Factory is a professional manufacturing enterprise which
collects together R&D, production and sale. we’ve been in this field for decades, Our company aims
to further research and development of plating equipment and provide customers with the most
excellent and suitable service. With the core of "Pursuing excellence, customer first", we constantly
improve the metal plating technology aiming to be the best suppliers of electroplating industry and
providing electroplating industry with the best plating technology.
Based on high-quality imported material and the most advanced electroplating production
technology. We have gradually formed a standardized production process, developed a series of
electroplating equipments and other related auxiliary equipment. And now, we are specialized in
making plating machines such as plating line, plating tank, plating barrel and water/gas treatment
plant.Auxiliary equipment includes high-frequency switching power supply, filter, heater, temperature
controller, titanium basket, oven, industrial water purification machine, chiller, etc.
Why choose us?
1. Advanced technology
We have a good cooperation with first class chemical liquid supplier, so we can provide environment-al, economic design and suitable process design for production.
2. Optimized electroplating products’ design
We have optimized design system for plating tank, plating barrel and plating line, framework and
control system. Over 15 years design and construction experience.
3. Using high-quality material and equipments
4. Provide process training
We offer training course of technical certification for customers and the directors are with over 10 yea-rs’ experience.
5. Service assurance
We provide 7*24 hours multilingual services(Chinese, English, French, Russian, Arabic, Japannese).
Global Location
Large storage warehouse
DMS equipments: online failure analysis and maintenance system.

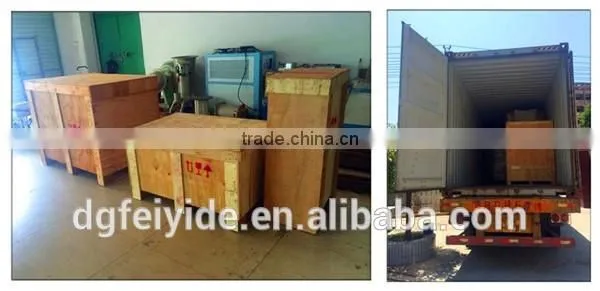

Packing: According to the different products and quantity are packed in a wooden container, such as 20GP/40GP/40HQ
Shipping: By sea or according to the special request of the buyer
Seller guarantee 12 months warranty after the equipment was passed test. Seller react during 48 hours after receive report. The warranty will be recounted if change the contract's equipment or the accessory is for repair. If the equipment stand or change after debug, the buyer can require return the equipment and seller have to move the equipment within 7 days.
We can provide you the following service:
1. Project design
2. Manufacturing
3. Installation and test
4. After-sale service
