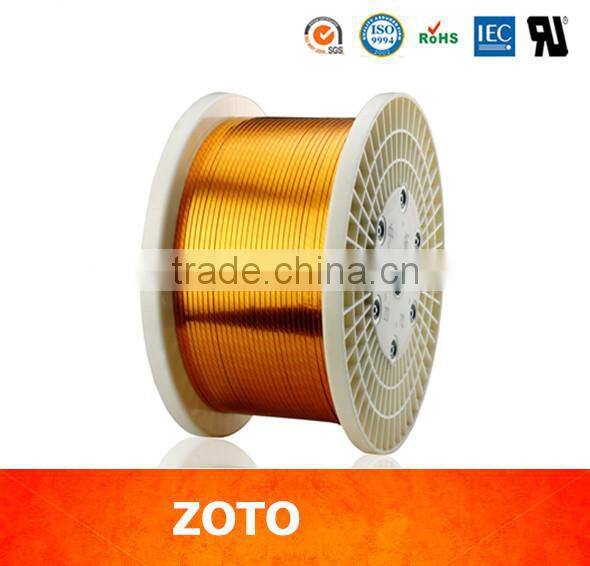

| Class155 F degree polyester enamel flat aluminum craft wire for motors |
1.Introduction:This product is premium copper or aluminum conductor, evenly wrapped with polyimide film or polyimide, fluorine 4.6 composite film. Fluorine 4.6 can be melt and make a whole with the film and conductor after heated. It has strong voltage resistance, thin thickness and thermal class up to 220℃. The product is widely applied in electric machines,reactors,electric welding machines and similar electrical instruments. The electrical bare copper or aluminum wire with extrusion process is the ideal material for polyimide film wrapped copper or aluminum wire.
2.Standard:GB/T7673-2008 & Enterprise Standard
3.Production Range:
Aluminum Rectangular Wire
Narrow side size a : 1.00mm—8.00mm
Broad side size b : 3.00mm—25.00mm
Copper Rectangular Wire
Narrow side size a : 0.80mm—5.60mm
Broad side size b : 2.00mm—16.00mm
Copper or Aluminum Round Wire
Diameter:φ1.7—φ8.0
If specification is out of range, please don’t hesitate
to contact us.
4.Material:
Aluminum rectangular wire should conform to GB5584.3-2009,the resistivity (20℃) is no more than 0.0280Ωmm2/m
Copper rectangular wire should conform to GB5584.2-2009,the resistivity (20℃) is no more than 0.017241Ωmm2/m
5.After polyimide film wrapped wire is bended on broad side and narrow side with the rods of different following diameters, there should be no cracking :
Nominal Size/mm |
Rod Diameter |
|||||
2.00<b≤8.00 |
10b |
|
|
|
|
|
8.00<b≤16.00 |
15b |
|
|
|
|
|
0.8<a≤5.60 |
10a |
|
|
|
|
|
6.Breakdown voltage of polyimide film wrapped copper or aluminum wire(Enterprise Standard):
Wrapping Process |
Insulation Thickness/mm |
Breakdown Voltage |
|
Nominal Value |
Deviation |
||
Self-locking Wrapping with Two-layer Polyimide Film |
0.15 |
±0.03 |
6000V |
Overlapping Wrapping in Counter Direction with Two-layer Polyimide Film |
0.15 |
±0.03 |
6000V |
Overlapping Wrapping in Counter Direction with Three-layer Polyimide Film |
0.23 |
±0.03 |
7000V |
|
Enameled round aluminum wire
|
Enameled flat aluminum wire
|
|
Enameled round copper wire
|
Enameled flat copper wire
|
|
Non Woven Cloth/ Polyester Film covered wire
|
Polyimide Film Wrapped wire
|
|
Film Wrapped enameled wire
|
NOMEX Paper covered wire
|
|
Fiberglass Film Wrapped wire
|
Kraft Paper Wrapped wire
|
Shanghai Zhongtuo Magnet Wires Co.,Ltd. is a large-scale & well-known factory specializing in R&D and manufacturing various high quality magnet wires. Zhongtuo as a subsidiary company of HUTONG GROUP established in 1989, we are located in NO.333 Changye Road,Sheshan industrial park,Songjiang District,Shanghai.Our cover area is over 50,000 m2 with building area reaches to 32,000 m2. We have an annual production capacity of 15,000 tons and annual revenue of around US$120,000,000 annual revenue. Looking forward to your visit our factory!
