Flat Section Polyimide Film Covered Conductor Insulation Wire for Power Equipment

Flat Section Polyimide Film Covered Conductor Insulation Wire for Power Equipment thumbnail-1
Flat Section Polyimide Film Covered Conductor Insulation Wire for Power Equipment photo-1
US$ 3 - 4 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZOTO
Model Number:
ZY/XY
Contact Supplier Request Quote Chat Now
Shanghai Zhongtuo Magnet Wires Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZOTO
Model Number ZY/XY
Type Insulated
Application Other, transformer, transformer, motor, welder
Conductor Material Other, Aluminum, aluminum/copper
Conductor Type Solid
Insulation Material Enameled



Product Description

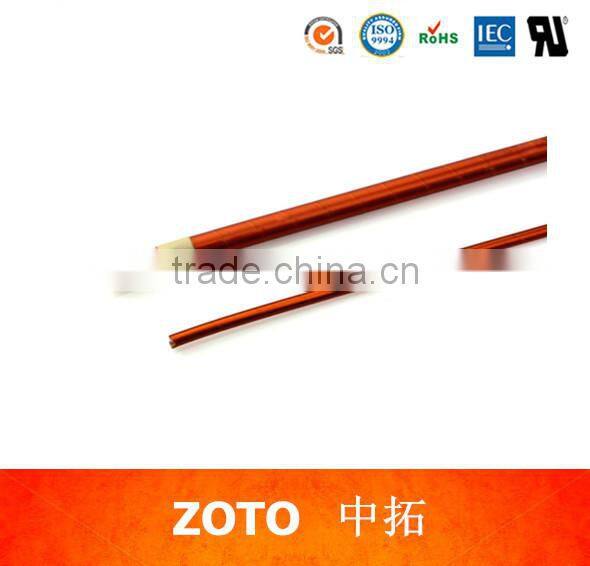

  Flat section polyimide film conductor winding wire for motor  Flat section polyimide film covered conductor insulation wire for power equipment

Flat section polyimide film covered conductor insulation wire for power equipment



1.Introduction:This product is premium copper or aluminum conductor, evenly wrapped with polyimide film or polyimide, fluorine 4.6 composite film. Fluorine 4.6 can be melt and make a whole with the film and conductor after heated. It has strong voltage resistance, thin thickness and thermal class up to 220℃. The product is widely applied in electric machines,reactors,electric welding machines and similar electrical instruments. The electrical bare copper or aluminum wire with extrusion process is the ideal material for polyimide film wrapped copper or aluminum wire.

2.Standard:GB/T7673-2008 & Enterprise Standard

3.Production Range:

    Aluminum Rectangular Wire

    Narrow side size a : 1.00mm—8.00mm

    Broad side size b : 3.00mm—25.00mm

    Copper Rectangular Wire

    Narrow side size a : 0.80mm—5.60mm

    Broad side size b : 2.00mm—16.00mm

    Copper or Aluminum Round Wire

    Diameter:φ1.7—φ8.0

    If specification is out of range, please don’t hesitate

    to contact us.

4.Material:

    Aluminum rectangular wire should conform to GB5584.3-2009,the resistivity (20℃) is no more than 0.0280Ωmm2/m

    Copper rectangular wire should conform to GB5584.2-2009,the resistivity (20℃) is no more than 0.017241Ωmm2/m



5.After polyimide film wrapped wire is bended on broad side and narrow side with the rods of different following diameters, there should be no cracking :

Nominal Size/mm

Rod Diameter

2.00<b≤8.00

10b











8.00<b≤16.00

15b











0.8<a≤5.60

10a












6.Breakdown voltage of polyimide film wrapped copper or aluminum wire(Enterprise Standard):

Wrapping Process

Insulation Thickness/mm

Breakdown Voltage

Nominal Value

Deviation

Self-locking Wrapping with Two-layer Polyimide Film

0.15

±0.03

6000V

Overlapping Wrapping in Counter Direction with Two-layer Polyimide Film

0.15

±0.03

6000V

Overlapping Wrapping in Counter Direction with Three-layer Polyimide Film

0.23

±0.03

7000V



 Flat section polyimide film covered conductor insulation wire for power equipmentFlat section polyimide film covered conductor insulation wire for power equipment



Enameled round aluminum wire

  • Diameter(mm):0.2-8.0
  • Temperature class:130,155,180,200,240

Enameled  flat aluminum wire

  • Diameter(mm):a:0.8-5.6,b:2.0-16
  • Temperature class:130,155,180,200,240

Enameled round copper wire

  • Diameter(mm):0.1-5.0
  • Temperature class:130,155,180,200,220



Enameled  flat copper wire

  •  Diameter(mm):a:0.8-5.6,b: 2.0-16
  • Temperature class:180,200,220

Non Woven Cloth/ Polyester Film covered wire

  •  Diameter(mm):round:1.7-8.0,flat: a:1-8,b:3-25
  • Temperature class:220

 Polyimide Film Wrapped wire

  •  Diameter(mm):round:1.7-8.0,flat: a:1.0-8,b:3-25
  • Temperature class:240

Film Wrapped enameled wire

  •  Diameter(mm): round:1.7-5.0 a:0.8-5.6,b:2-16
  • Temperature class:220



NOMEX Paper covered wire

  • Diameter(mm):round:1.7-8.0,flat: a:1-10,b:3-25
  • Temperature class:220

Fiberglass Film Wrapped wire

  • Diameter(mm):round:1.7-6.0, flat: a:0.3-5.6,b:2-16
  • Temperature class: 220



Kraft Paper Wrapped wire

  • Diameter(mm):round:1.7-8.0 a:1-8,b:3-25
  • Temperature class:240
