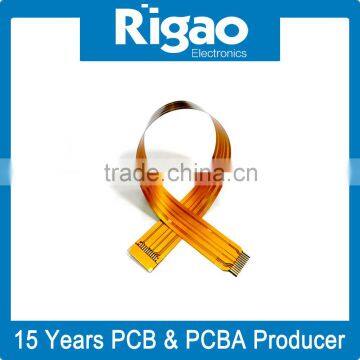

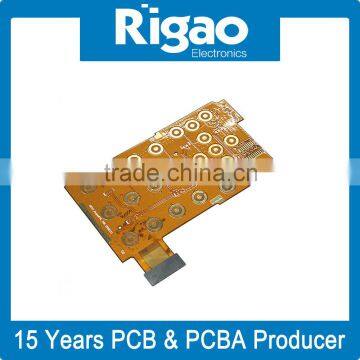

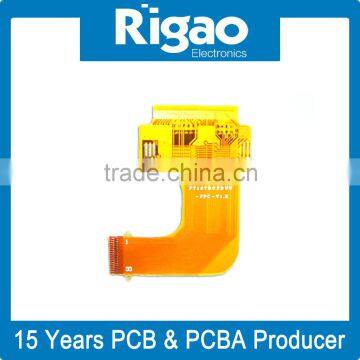

Flexible Board From Electronic Manufacturing Companies of China
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Rigao
Model Number:
fpc
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexi Rigid Pcb Electronics Manufacturers ChinaUS$ 0.1 - 15MOQ: 1 Piece -
Customized Rigid-flex Pcb Board Supplier in ChinaUS$ 1 - 8MOQ: 1 Piece
-
Pcb Product Manufacturer Rigid-flex Pcb BoardsUS$ 1 - 15MOQ: 1 Piece
-
Flexible-rigid Circuit Board PCB Copy FPCBUS$ 1 - 10MOQ: 1 Piece
-
Rigid-Flex PCB With Small Orders Are AcceptedUS$ 1 - 2.6MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Rigao
Model Number
fpc
Base Material
FR4
Copper Thickness
0.5-5 OZ
Board Thickness
0.2-5.3mm
Min. Hole Size
0.20mm
Min. Line Width
0.1mm4mil)
Min. Line Spacing
0.1mm4mil)
Surface Finishing
HASL
Company Information
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
flexible board from electronic manufacturing companies of china
Product Description
1.PCB&PCBA Service
2.UL,SGS,Rohs Certificated
3.OEM PCBA are welcome
4.Quick turn pcb and pcb assembly
5.PCBA Leadtime:15 days
6.1-28 layers
PCB Assembly Specification
| Item | Capability |
| Min Annular Ring | 0.076mm(3mil) |
| Min Finish Hoke Size | 0.2mm |
| Min Solder Mask Tolerance | ±0.076mm(3mil) |
| Punching Outline Tolerance | ±0.10mm |
| Min Hole Size | 0.2mm(8mil)-Mechanical drill |
| 0.075mm(3mil)-Laser drill | |
| Min Trace/Space | 0.1mm(4mil) |
| Board Thickness | 0.2-6.4mm |
| Flame Rating | 94v-0 |
| Peel Strength | ≥12.3n/cm |
| Layer | 2-58L |
| Working Panel Size | 1150mm* 560mm |
| Quality Standards | IPC-A-600G,IPC-TM-650,IPC-6012B |
| Lamination Evenness | ±0.013mm |
| Min Core Thickness | 0.076mm |
| Drilling Accuracy | ±0.05mm |
| PTH Hole Diameter Tolerance | ±0.05mm |
| Aspect Ratio | 18:01:00 |
| Layer to Layer Registration | ≤0.076mm |
| Surface Finishing | HASL,Imersion Gold,OSP...... |
Related Products
Quote Requirement
1.Gerber Files
2.BOM Files(components list)
3.Quantity
4.Test method for PCBA
Service
1.Engineering Services
2.PCB Design & Assembly
3.Product Design
4.Prototyping
