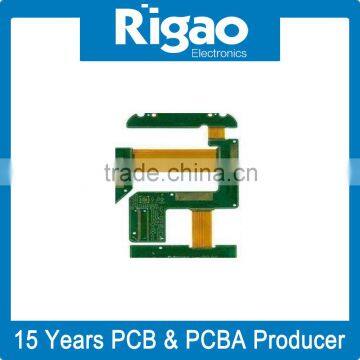

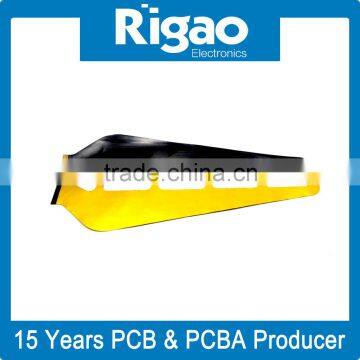

Flexi Rigid Pcb Electronics Manufacturers China
US$ 0.1 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Rigao
Model Number:
fpc
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Rigid-flex Pcb Board Supplier in ChinaUS$ 1 - 8MOQ: 1 Piece -
Pcb Product Manufacturer Rigid-flex Pcb BoardsUS$ 1 - 15MOQ: 1 Piece
-
Flexible-rigid Circuit Board PCB Copy FPCBUS$ 1 - 10MOQ: 1 Piece
-
Rigid-Flex PCB With Small Orders Are AcceptedUS$ 1 - 2.6MOQ: 1 Piece
-
Rigid Flex Circuit Boards, High Accurate Mini BGA On Rigid-Flex PCBUS$ 1 - 2.6MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Rigao
Model Number
fpc
Base Material
FR4
Copper Thickness
0.5-5 OZ
Board Thickness
0.2-5.3mm
Min. Hole Size
0.20mm
Min. Line Width
0.1mm4mil)
Min. Line Spacing
0.1mm4mil)
Surface Finishing
HASL
flexi rigid pcb electronics manufacturers china
Product Description
1.PCB&PCBA Service
2.UL,SGS,Rohs Certificated
3.OEM PCBA are welcome
4.Quick turn pcb and pcb assembly
5.PCBA Leadtime:15 days
6.1-28 layers
PCB Assembly Specification
| Item | Capability |
| Min Annular Ring | 0.076mm(3mil) |
| Min Finish Hoke Size | 0.2mm |
| Min Solder Mask Tolerance | ±0.076mm(3mil) |
| Punching Outline Tolerance | ±0.10mm |
| Min Hole Size | 0.2mm(8mil)-Mechanical drill |
| 0.075mm(3mil)-Laser drill | |
| Min Trace/Space | 0.1mm(4mil) |
| Board Thickness | 0.2-6.4mm |
| Flame Rating | 94v-0 |
| Peel Strength | ≥12.3n/cm |
| Layer | 2-58L |
| Working Panel Size | 1150mm* 560mm |
| Quality Standards | IPC-A-600G,IPC-TM-650,IPC-6012B |
| Lamination Evenness | ±0.013mm |
| Min Core Thickness | 0.076mm |
| Drilling Accuracy | ±0.05mm |
| PTH Hole Diameter Tolerance | ±0.05mm |
| Aspect Ratio | 18:01:00 |
| Layer to Layer Registration | ≤0.076mm |
| Surface Finishing | HASL,Imersion Gold,OSP...... |
Company Information
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
Other products

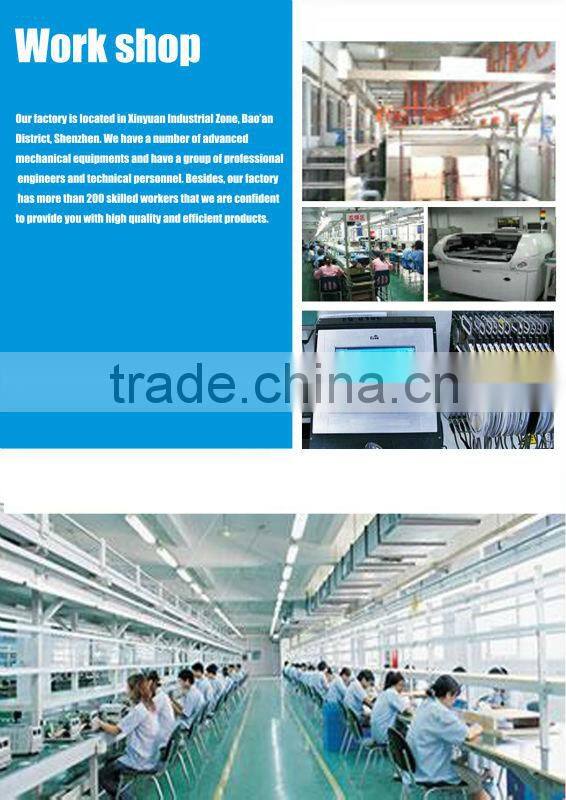

Production process
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Distributor/Wholesaler
Year Established
2012
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
