Flat Enameled Wire for UPS

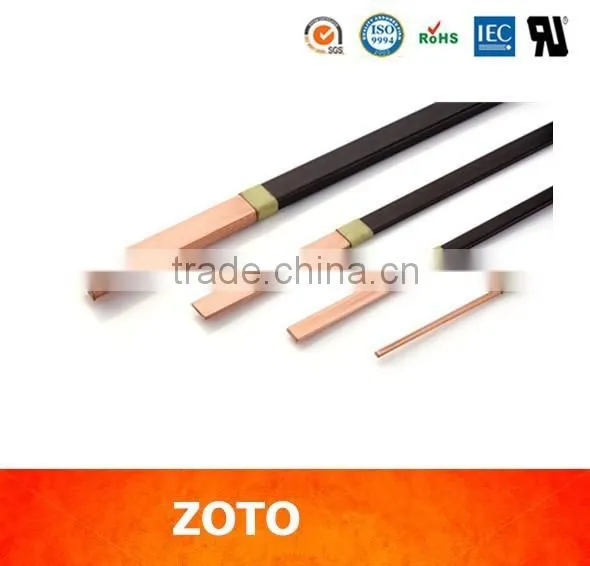

Flat Enameled Wire for UPS thumbnail-1
Flat Enameled Wire for UPS photo-1
US$ 3 - 4 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZOTO
Model Number:
ZY/XY
Contact Supplier Request Quote Chat Now
Shanghai Zhongtuo Magnet Wires Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZOTO
Model Number ZY/XY
Type Insulated
Application Other, transformer, transformer, motor, welder
Conductor Material Other, Aluminum, aluminum/copper
Conductor Type Solid
Insulation Material Enameled

Flat enameled wire for UPS

Product Description

 Flat enameled wire for UPS



Among all of its high-tech magnet wire products, ZOTO offers a complete range of rectangular enameled wire with copper or aluminum as the conductor:

ZOTO’s rectangular wires can be supplied in the wire cross-section ranges from 2-80 mm².

1.120 degree flat enameled wire for oil-immersed transformer

2.130, 155, 180 degree flat enameled wire are widely used in all kinds of magnet coil

3.200 degree flat enameled wire works constantly in high temperature

4. 240 degree flat enameled wire for magnet coils of aviation, military and marine application



Flat wire thickness: 0.80-5.60 mm

Flat wire width: 2.00-16.00 mm

Width/ thickness ratio: 1.4<w/t<8.0



Product Name

QZB-130

QZYB-180

Q(ZY/XY)B-200

QYB -240

Standard

IEC 60317-16

GB/T7095.7

60317 - 28

GB/T7095.4

MW 36

60317 – 28

BS 6811

GB/T7095.6

MW 20

GB/T7095.5

Thermal Class

130℃

180℃

200℃

240℃

Enamel Base Coat

Polyester

Polyester-Imide

Polyester-Imide

Polyimide

Enamel Top Coat



-

Polyester-Imide



Cross Section Range

2 – 80mm2

2 – 80mm2

2 – 80mm2

2 – 80mm2

Range of insulation thickness

IEC 60317-0-2

G1, 0.06-0.11mm

G2, 0.12-0.17mm

IEC 60317-0-2

G1, 0.06-0.11mm

G2, 0.12-0.17mm

IEC 60317-0-2

G1, 0.06-0.11mm

G2, 0.12-0.17mm

IEC 60317-0-2

G1, 0.06-0.11mm

G2, 0.12-0.17mm

Performance

1.excellent bending

property

2.high flexibility of the enamel

3.good resistance to abrasion

4.high mechanical property



1.higher thermal property

2.suitable for windings that are subjected to constantly high temperature and mechanical stress

3.good chemical resistance

1.excellent thermal resistance

2.suitable for windings that are subjected to constantly high temperature and mechanical stress

3.good chemical resistance

4.good resistance to refrigerant and freon

1.excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature

2.outstanding mechanical and chemical property

3.good performance against radiation

Application

1.dry&oil-immersed transformer

2.electrical equipment

1.winding of high and low voltage DC/AC motor

2.magnet coil

3.dry&oil-immersed transformer



1.winding of high and low voltage DC/AC motor

2.magnet coil

3.dry&oil-immersed transformer

4.automobile coil

5.train coil

1.winding with service temperature up to 220°C

2.motor and generator for aviation and marine application

3.nuclear industry

4.winding requiring high reliability

Heat shock

155℃

200℃

220℃

260℃



 Flat enameled wire for UPSFlat enameled wire for UPS



Enameled round aluminum wire

  • Diameter(mm):0.2-8.0
  • Temperature class:130,155,180,200,240

Enameled  flat aluminum wire

  • Diameter(mm):a:0.8-5.6,b:2.0-16
  • Temperature class:130,155,180,200,240

Enameled round copper wire

  • Diameter(mm):0.1-5.0
  • Temperature class:130,155,180,200,220



Enameled  flat copper wire

  •  Diameter(mm):a:0.8-5.6,b: 2.0-16
  • Temperature class:180,200,220

Non Woven Cloth/ Polyester Film covered wire

  •  Diameter(mm):round:1.7-8.0,flat: a:1-8,b:3-25
  • Temperature class:220

 Polyimide Film Wrapped wire

  •  Diameter(mm):round:1.7-8.0,flat: a:1.0-8,b:3-25
  • Temperature class:240

Film Wrapped enameled wire

  •  Diameter(mm): round:1.7-5.0 a:0.8-5.6,b:2-16
  • Temperature class:220



NOMEX Paper covered wire

  • Diameter(mm):round:1.7-8.0,flat: a:1-10,b:3-25
  • Temperature class:220

Fiberglass Film Wrapped wire

  • Diameter(mm):round:1.7-6.0, flat: a:0.3-5.6,b:2-16
  • Temperature class: 220



Kraft Paper Wrapped wire

  • Diameter(mm):round:1.7-8.0 a:1-8,b:3-25
  • Temperature class:240





Packaging & Shipping

 Flat enameled wire for UPS







Company Information

 Flat enameled wire for UPS

Flat enameled wire for UPS







Application

Flat enameled wire for UPS



FAQ



1.Q:Are you a factory or trading company?
A:We are a factory.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shanghai City, China, near Hongqiao airport. You can fly to Hongqiao airport or Pudong  airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


3.Q:How can I get some samples?
A: We are honored to offer you samples.

4.Q:How does your factory do regarding quality control?
A: "Quality is priority. ZOTO WIRE people always attach great importance to quality controlling from the very beginning to the very end.  Our factory has gained BV, Intertek, SGS authentication.





 5.Q:Whats your mainly products?

Our mainly products are

Rectangular Enameled wire/ Round Enameled wire/

Ultra Fine Rectangular Enameled wire/NOMEX paper wrapped wire/

Kraft paper wrapped wire/ Polyester film or Kapton covered wire/

Fiber glass wrapped enameled wire/ Electrical rectangular wire/

Macromolecule enameled wire, etc.
